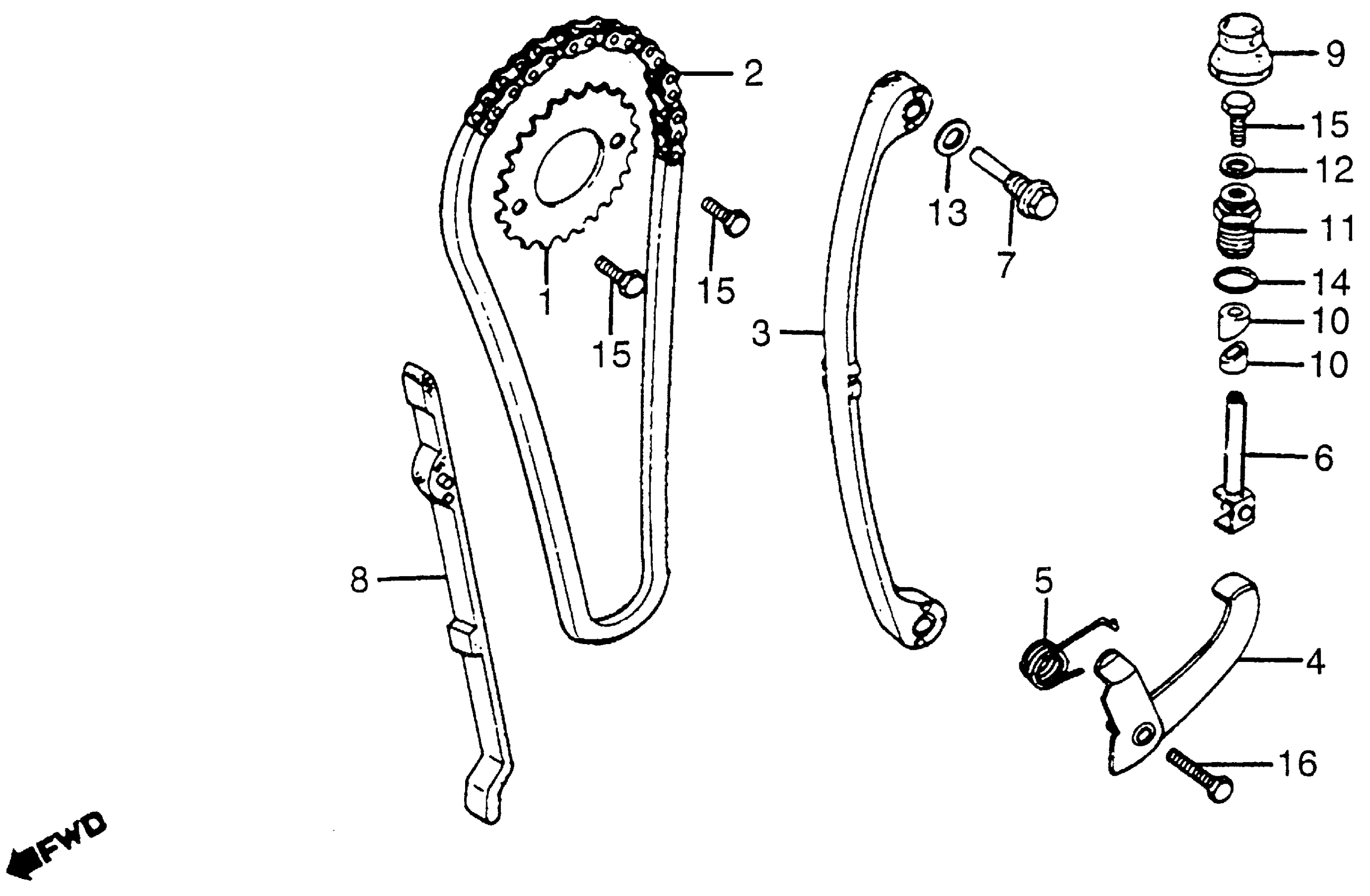

Honda XR200RA (83) MOTORCYCLE, JPN, VIN# JH2ME040-DK200001 CAM CHAIN + TENSIONER Diagram

SPROCKET, CAM (32T)

14321-440-000

$44.57

CHAIN, CAM (100L) (DAIDO) This part replaces 14401-427-003.

14401-958-003

$84.25

CHAIN, CAM (100L) (DAIDO)

14401-958-003

$84.25

TENSIONER, CAM CHAIN

14500-427-000

$77.00

ARM, CAM CHAIN TENSIONER

14510-383-000

$33.16

SPRING, CAM CHAIN TENSIONER

14515-383-000

$5.10

BAR, TENSIONER SETTING

14520-969-010

$26.07

BOLT, CAM CHAIN TENSIONER PIVOT

14535-437-000

$6.30

GUIDE, CAM CHAIN

14550-427-000

$52.91

CAP, TENSIONER ADJ.

14564-383-000

$4.45

COLLAR, SET BAR LOCKING

14626-383-000

$9.52

BOLT, SPECIAL (16MM)

90082-383-000

$26.69

WASHER, SEALING (6MM)

90441-028-010

$2.92

WASHER (8MM)

90481-035-000

$1.87

O-RING (13X2.5)

91335-567-000

$4.01

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

BOLT, HEX. (6X20)

92101-06020-0A

$1.49
