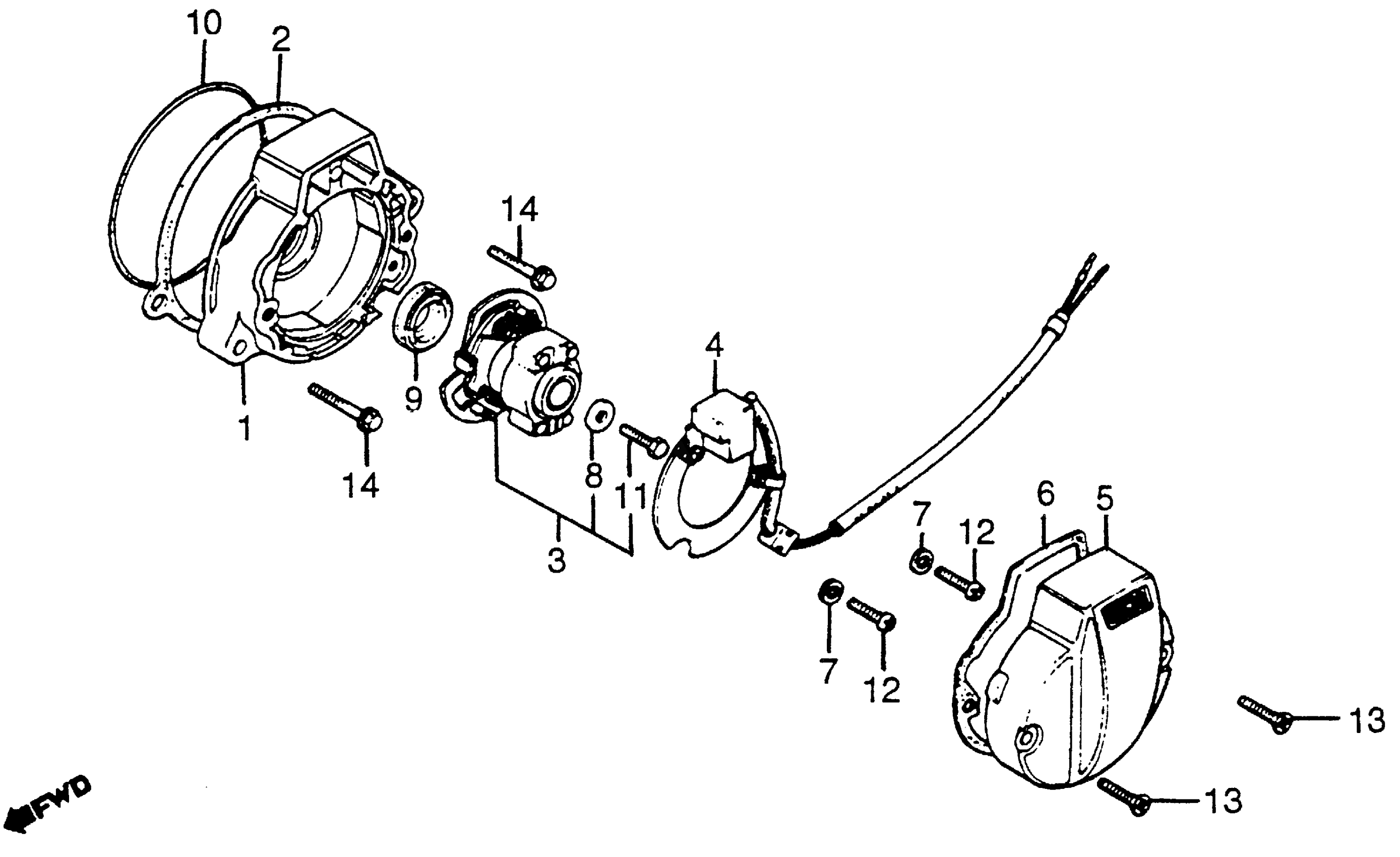

Honda XR200RA (83) MOTORCYCLE, JPN, VIN# JH2ME040-DK200001 C.D.I. PULSER Diagram

#

Description
Price

1

BASE, PULSE GENERATOR (NOT AVAILABLE)

12332-KA2-000

Unavailable

2

GASKET This part replaces 12339-KT0-710.

12339-KT0-712

$7.04

2

GASKET This part replaces 12339-437-003.

12339-KT0-712

$7.04

2

GASKET This part replaces 12339-437-306.

12339-KT0-712

$7.04

3

ADVANCER ASSY., SPARK This part replaces 30220-427-154.

30220-427-164

Unavailable

3

ADVANCER ASSY., SPARK

30220-427-164

Unavailable

4

GENERATOR ASSY., PULSE (TOYO)

30300-437-164

Unavailable

5

COVER, PULSE GENERATOR

30370-KA2-000

Unavailable

6

GASKET, PULSE GENERATOR COVER This part replaces 30372-KA2-000.

30372-KT0-710

$5.37

6

GASKET, PULSE GENERATOR COVER

30372-KT0-710

$5.37

7

WASHER (5MM)

90482-028-000

$2.09

8

WASHER, SPARK ADVANCER SETTING

90486-028-000

$2.13

9

OIL SEAL (15X25X7) This part replaces 91202-107-003.

91203-965-003

$6.41

9

OIL SEAL (15X25X7)

91203-965-003

$6.41

10

O-RING (75X2.5)

91301-107-000

$4.87

11

BOLT, HEX. (6X14) BOLT, FLANGE (6X14) This part replaces 92000-06014.

92101-06014-0A

$1.49

11

BOLT, HEX. (6X14)

92101-06014-0A

$1.49

12

SCREW, PAN (5X12)

93500-05012-0A

$1.49

13

SCREW, OVAL (5X20)

93700-05020-0B

$1.49

14

BOLT, FLANGE (6X25)

96000-06025-00

$2.00

14

BOLT, FLANGE (6X25)

96001-06025-00

$2.00
