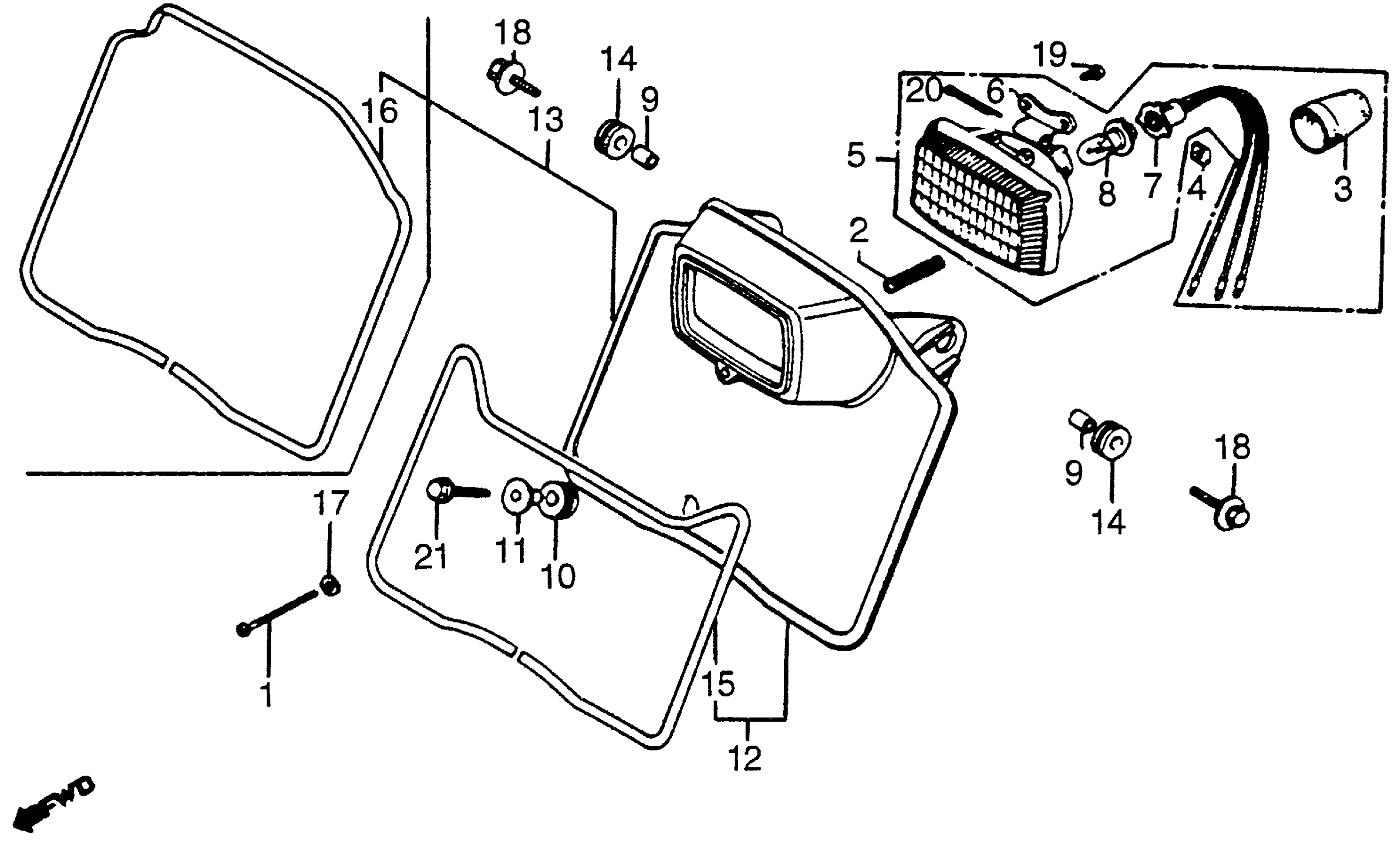

Honda XR200RA (82) MOTORCYCLE, JPN, VIN# JH2ME040-CK100001 TO JH2ME040-CK110976 HEADLIGHT + HEADLIGHT CASE Diagram

SCREW, BEAM ADJUSTING (NOT AVAILABLE)

33103-434-670

Unavailable

SPRING, HEADLIGHT BEAM ADJUSTING

33107-246-003

$2.23

SOCKET ASSY., HEADLIGHT (NOT AVAILABLE) This part replaces 33115-434-672.

33130-434-672

Unavailable

SOCKET ASSY., HEADLIGHT (NOT AVAILABLE) This part replaces 33130-434-671.

33130-434-672

Unavailable

SOCKET ASSY., HEADLIGHT (NOT AVAILABLE)

33130-434-672

Unavailable

NUT, BEAM ADJ. (STANLEY)

33117-KA2-003

$1.94

HEADLIGHT UNIT (NOT AVAILABLE)

33120-434-672

Unavailable

STAY, HEADLIGHT (NOT AVAILABLE)

33122-434-671

Unavailable

SOCKET ASSY., HEADLIGHT (NOT AVAILABLE)

33130-434-672

Unavailable

BULB, HEADLIGHT (6V25/25W) (STANLEY)

34901-030-003

$9.57

BULB, HEADLIGHT (6V25/25W) (STANLEY)

34901-087-640

$9.57

COLLAR, STARTER MAGNETIC SWITCH SETTING (NOT AVAILABLE)

35851-292-000

Unavailable

RUBBER, FR. FENDER SETTING

61103-357-000

$3.37

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.42

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

COLLAR, RR. FENDER

61105-428-000

Unavailable

CASE, HEADLIGHT *R23* (TAHITIAN RED) (NOT AVAILABLE)

61300-MA0-770ZA

Unavailable

RUBBER A, RR. FENDER

80105-061-000

$4.01

SHEET, HEADLIGHT CASE (NOT AVAILABLE)

87126-MA0-770

Unavailable

WASHER, BEAM ADJ.

90286-147-670

$2.39

BOLT-WASHER (6X20)

93404-06020-00

$1.55

BOLT-WASHER (6X20) This part replaces 93494-06020-00.

93404-06020-00

$1.55

SCREW, TAPPING (4X8)

93901-34110

Unavailable

PIN, COTTER (3.0X35) This part replaces 94201-03350.

94201-30350

$1.49

PIN, COTTER (3.0X35)

94201-30350

$1.49

BOLT, FLANGE (6X25)

95700-06025-08

$1.72

BOLT, FLANGE (6X25)

95701-06025-08

$1.72
