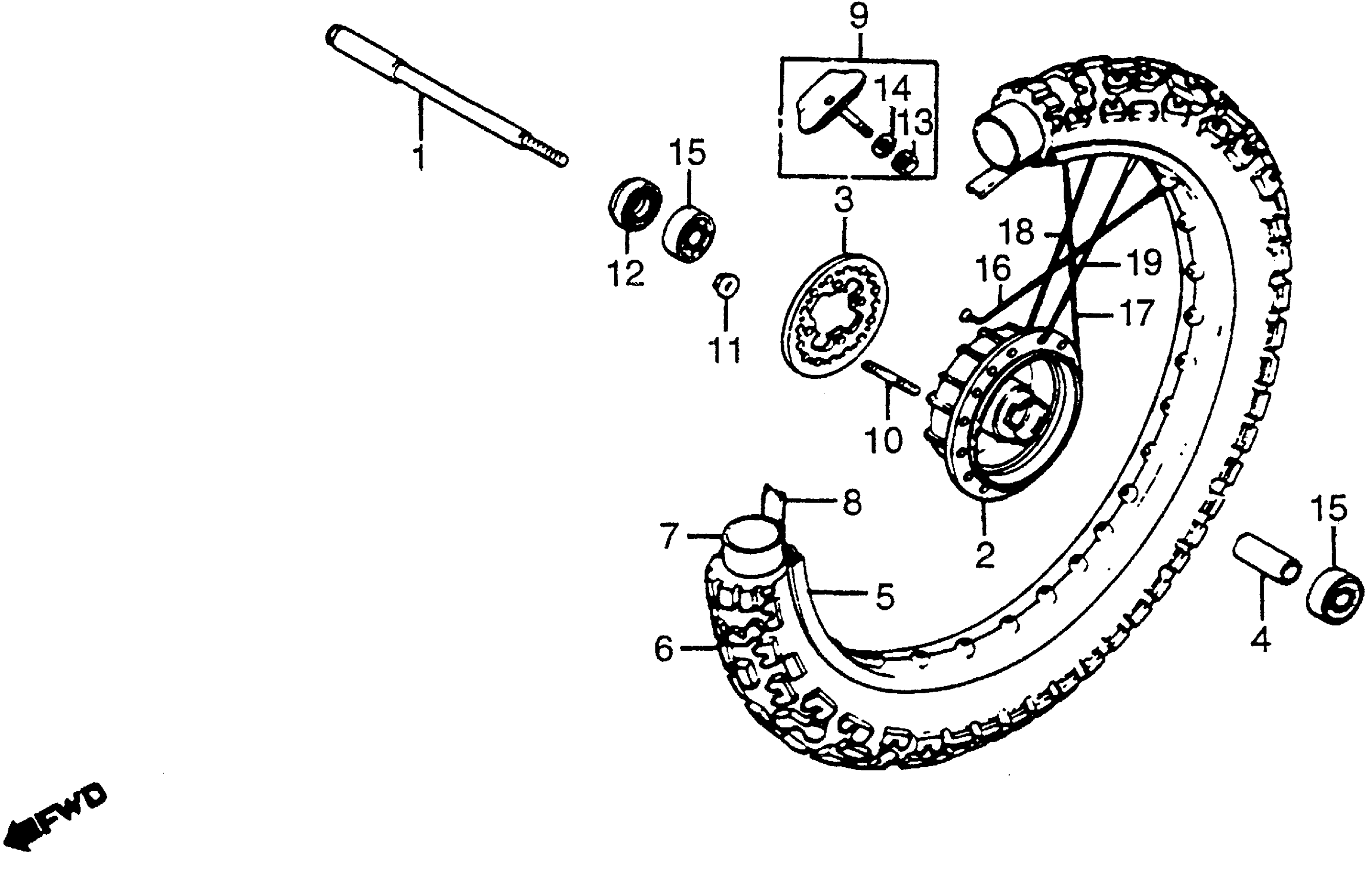

Honda XR200RA (82) MOTORCYCLE, JPN, VIN# JH2ME040-CK100001 TO JH2ME040-CK110976 FRONT WHEEL Diagram

#

Description
Price

1

AXLE, FR. WHEEL (NOT AVAILABLE) This part replaces 44301-KA2-000.

44301-KB7-910

Unavailable

1

AXLE, FR. WHEEL (NOT AVAILABLE)

44301-KB7-910

Unavailable

2

HUB, FR. WHEEL (NOT AVAILABLE)

44601-KA2-000

Unavailable

3

FLANGE, FR. SPOKE (NOT AVAILABLE)

44604-KA2-000

Unavailable

4

COLLAR, FR. AXLE DISTANCE

44620-230-000

$9.90

5

RIM, FR. WHEEL (NOT AVAILABLE) This part replaces 44701-MA0-771.

44701-430-003

Unavailable

6

TIRE, FR. (3.00-21) (6PR) (BS) (NOT AVAILABLE)

44711-MA0-003

Unavailable

6

TIRE, FR. (3.00-21) (6PR) (INOUE) (NOT AVAILABLE)

44711-MA0-005

Unavailable

7

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 0Y400-33100.

44712-446-631

Unavailable

7

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 08400-33100.

44712-446-631

Unavailable

7

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 08400-34010.

44712-446-631

Unavailable

7

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-MC4-005.

44712-446-631

Unavailable

7

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-340-003.

44712-446-631

Unavailable

7

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-437-971.

44712-446-631

Unavailable

7

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-446-003.

44712-446-631

Unavailable

7

TUBE, TIRE (2.75/3.00-21) (INOUE)

44712-446-631

Unavailable

8

FLAP, TIRE (1.4X21) (BS) (NA USE ALT:44713-MG7-003)

44713-329-003

Unavailable

8

FLAP, TIRE (1.4X21) (INOUE) (NOT AVAILABLE)

44713-446-631

Unavailable

9

STOPPER, BEAD (1.60)

44715-MA0-770

$36.80

10

BOLT, STUD (6X28)

90135-107-720

$2.56

11

NUT, DRIVEN SPROCKET (TOKAI)

90352-122-003

$4.39

12

DUST SEAL (20X35X7) (ARAI)

91254-430-003

$9.46

12

DUST SEAL (20X35X7) (ARAI) This part replaces 91254-430-005.

91254-430-003

$9.46

13

NUT, HEX. (8MM)

94001-08000-0S

$1.49

14

WASHER, SPRING (8MM)

94111-08000

$1.49

15

BEARING, RADIAL BALL (6202U)

96140-62020-10

$10.85

16

SPOKE SET B (9X236.0)

97224-52312-Q0

$3.99

17

SPOKE SET B (9X236.0)

97328-52312-Q0

Unavailable

18

SPOKE SET B (9X206.5)

97338-52253-Q0

Unavailable

19

SPOKE SET B (9X206.0)

97438-52252-Q0

Unavailable
