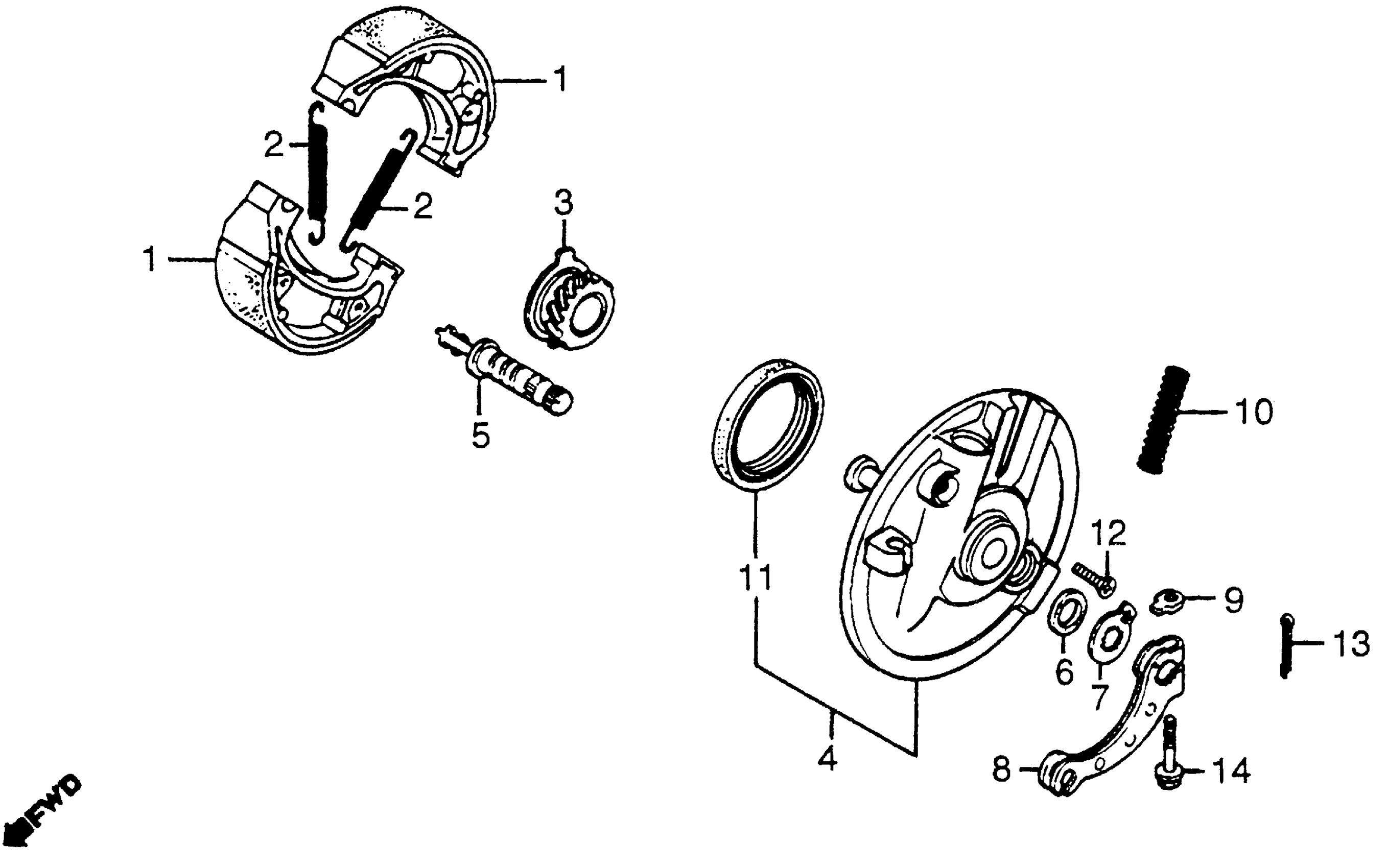

Honda XR200RA (82) MOTORCYCLE, JPN, VIN# JH2ME040-CK100001 TO JH2ME040-CK110976 FRONT BRAKE PANEL Diagram

#

Description
Price

NI

SHOE SET, BRAKE (ASK)

06430-GBJ-J10

$29.23

NI

SHOE SET, BRAKE (ASK) This part replaces 06430-KT0-305.

06430-GBJ-J10

$29.23

NI

SHOE SET, BRAKE (ASK) This part replaces 06430-365-674.

06430-GBJ-J10

$29.23

NI

SHOE SET, BRAKE (ASK) This part replaces 431A2-365-672.

06430-GBJ-J10

$29.23

1

SHOE SET, BRAKE (ASK) This part replaces 43120-365-671.

06430-GBJ-J10

$29.23

1

SHOE SET, BRAKE (ASK) This part replaces 43120-365-672.

06430-GBJ-J10

$29.23

2

SPRING, BRAKE SHOE

43151-110-000

$2.92

3

GEAR, SPEEDOMETER

44804-KA2-003

Unavailable

4

PANEL SUB, FR. BRAKE *NH105* (MAT BLACK) (NOT AVAILABLE)

45010-KA2-305ZA

Unavailable

5

CAM, FR. BRAKE | Use up to Frame SN CK100007 This part replaces 45131-400-010.

45131-400-020

Unavailable

5

CAM, FR. BRAKE

45131-400-020

Unavailable

5

CAM, FR. BRAKE | Use up to Frame SN CK100007

45131-400-020

Unavailable

6

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

7

INDICATOR, FR. BRAKE

45145-400-000

Unavailable

8

ARM, FR. BRAKE (NOT AVAILABLE)

45410-437-000

Unavailable

9

NUT, FR. BRAKE ARM SETTING

45436-001-000

$1.80

10

SPRING, FR. BRAKE CABLE

45454-360-010

$5.14

11

OIL SEAL (47X60X7)

91251-GK4-003

$9.19

11

OIL SEAL (47X60X7) (ARAI) This part replaces 91251-121-000.

91251-GK4-003

$9.19

11

OIL SEAL (47X60X7) (ARAI) This part replaces 91251-121-003.

91251-GK4-003

$9.19

11

OIL SEAL (47X60X7)

91251-361-005

$13.39

12

SCREW, OVAL (5X18)

93700-05018-0A

$1.49

12

SCREW, OVAL (5X18) This part replaces 93700-05018-1A.

93700-05018-0A

$1.49

13

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

13

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

13

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

13

PIN, COTTER (3.0X45)

94201-30450

$1.49

14

BOLT, FLANGE (6X35) This part replaces 95700-06035-00.

95701-06035-00

$1.80

14

BOLT, FLANGE (6X35)

95701-06035-00

$1.80
