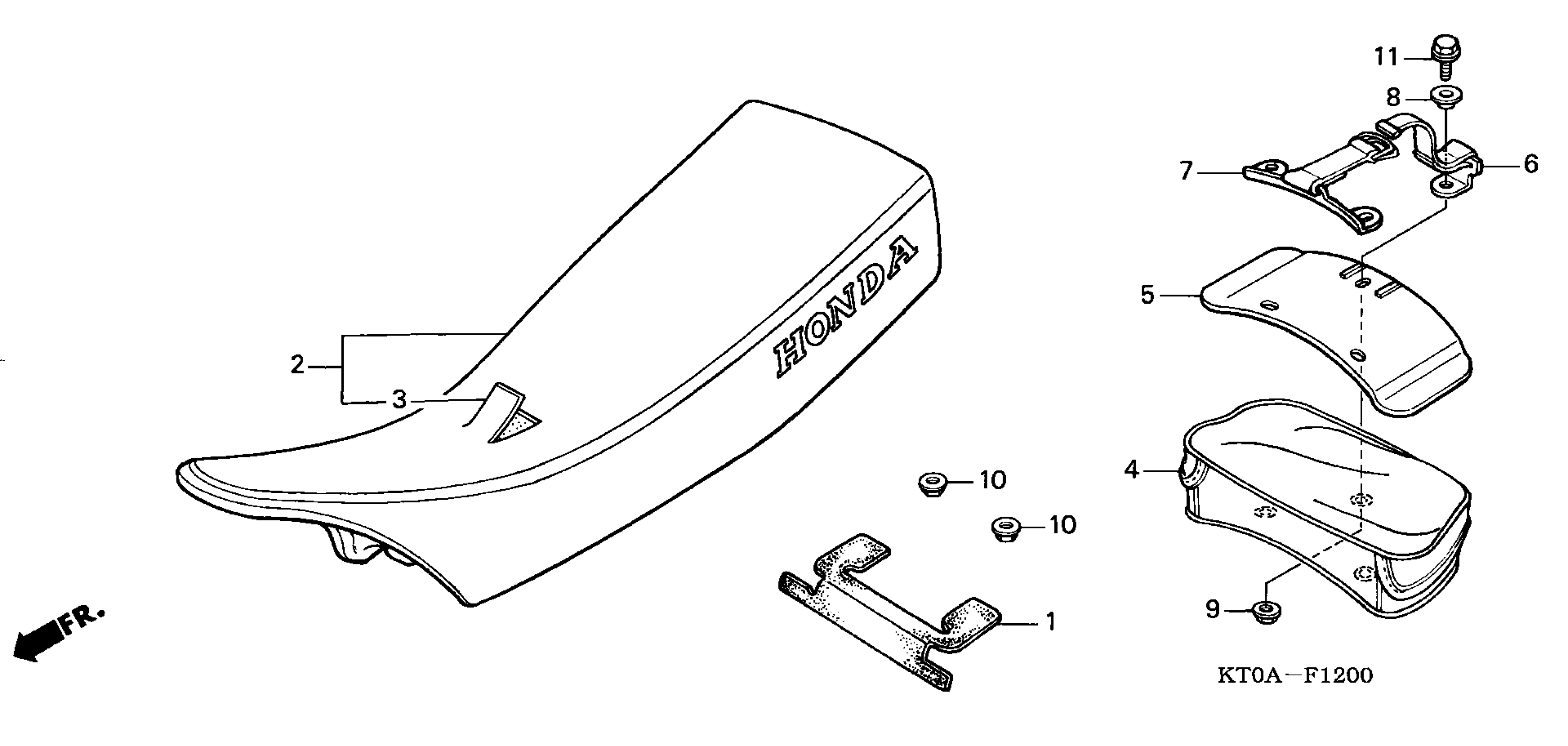

Honda XR200RA (02) MOTORCYCLE, JPN, VIN# JH2ME050-2K600001 SEAT Diagram

RUBBER, SEAT (LOWER)

77120-KK0-000

Unavailable

SEAT (TYPE1)

77200-KT0-A50ZA

Unavailable

LEATHER, SEAT (TYPE1) (NO LETTERS PRINTED) (NOT AVAILABLE)

77201-KT0-A50ZA

Unavailable

BAG, TAIL | (Optional).

83501-KK0-000

Unavailable

PLATE, TAIL BAG (LOWER) | (Optional).

83502-KT0-770

Unavailable

BAND B, CARRIER | (Optional).

83506-KF0-000

Unavailable

BAND A, CARRIER | (Optional).

83507-KK0-000

Unavailable

WASHER, NUMBER BRACKET MOUNTING | (Optional).

90563-045-000

$3.12

NUT, FLANGE (6MM) | (Optional).

94050-06000

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

BOLT, FLANGE (6X16) | (Optional).

96300-06016-00

$1.49

BOLT, FLANGE (6X16) | (Optional). This part replaces 96500-06016-00.

96300-06016-00

$1.49
