Description

Price

1

BASE, PULSE GENERATOR

12332-KT0-000

Unavailable

2

GASKET This part replaces 12339-KT0-710.

12339-KT0-712

$7.04

2

GASKET This part replaces 12339-KT0-711.

12339-KT0-712

$7.04

3

ADVANCER ASSY., SPARK

30220-427-164

Unavailable

4

PLATE, GOVERNOR

30222-427-000

Unavailable

5

WEIGHT

30223-437-000

$6.67

6

SPRING

30224-437-000

$5.10

7

WASHER, SNAP

30225-437-000

$6.07

8

WASHER A, WEIGHT

30226-437-000

$8.08

9

WASHER B, WEIGHT

30227-437-000

Unavailable

10

WASHER, GOVERNOR

30228-437-000

Unavailable

11

GENERATOR ASSY., PULSE

30300-KT0-010

Unavailable

12

COVER, PULSE GENERATOR

30370-KT0-010

Unavailable

13

GASKET, PULSE GENERATOR COVER

30372-KT0-710

$5.37

14

CLAMP, WIRE

32111-323-000

$3.98

15

WASHER, SPARK ADVANCER SETTING

90486-028-000

$2.13

16

OIL SEAL (15X25X7) This part replaces 91202-107-003.

91203-965-003

$6.41

16

OIL SEAL (15X25X7)

91203-965-003

$6.41

17

O-RING (75X2.5)

91301-107-000

$4.87

18

BOLT, HEX. (6X14)

92101-06014-0A

$1.49

19

SCREW, OVAL (5X20)

93700-05020-0B

$1.49

20

SCREW-WASHER (5X12)

93891-05012-08

$1.49

21

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

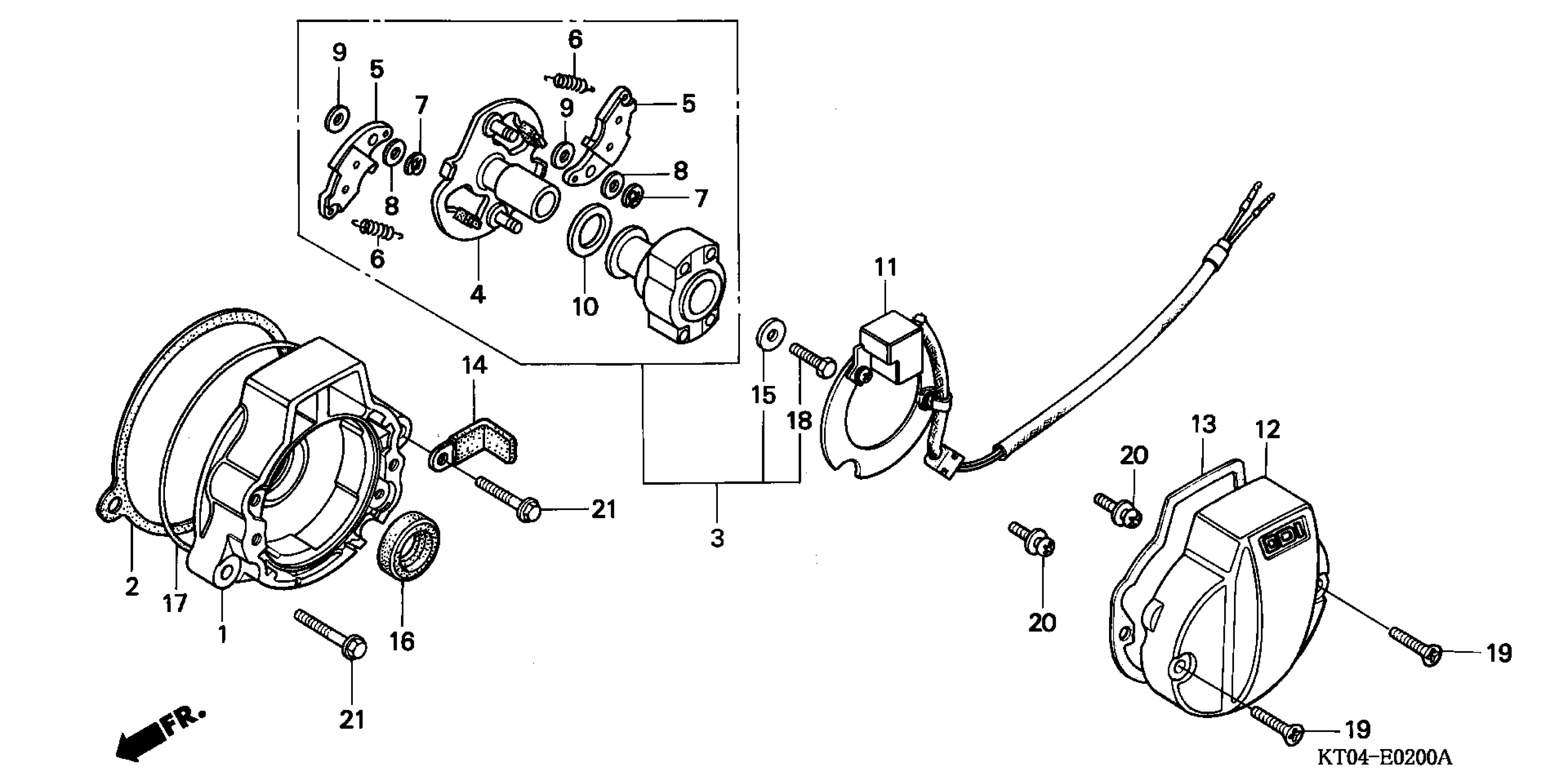

Honda XR200RA (02) MOTORCYCLE, JPN, VIN# JH2ME050-2K600001 PULSE GENERATOR Diagram

BASE, PULSE GENERATOR

GASKET This part replaces 12339-KT0-710.

GASKET This part replaces 12339-KT0-711.

ADVANCER ASSY., SPARK

PLATE, GOVERNOR

WEIGHT

SPRING

WASHER, SNAP

WASHER A, WEIGHT

WASHER B, WEIGHT

WASHER, GOVERNOR

GENERATOR ASSY., PULSE

COVER, PULSE GENERATOR

GASKET, PULSE GENERATOR COVER

CLAMP, WIRE

WASHER, SPARK ADVANCER SETTING

OIL SEAL (15X25X7) This part replaces 91202-107-003.

OIL SEAL (15X25X7)

O-RING (75X2.5)

BOLT, HEX. (6X14)

SCREW, OVAL (5X20)

SCREW-WASHER (5X12)

BOLT, FLANGE (6X25)
