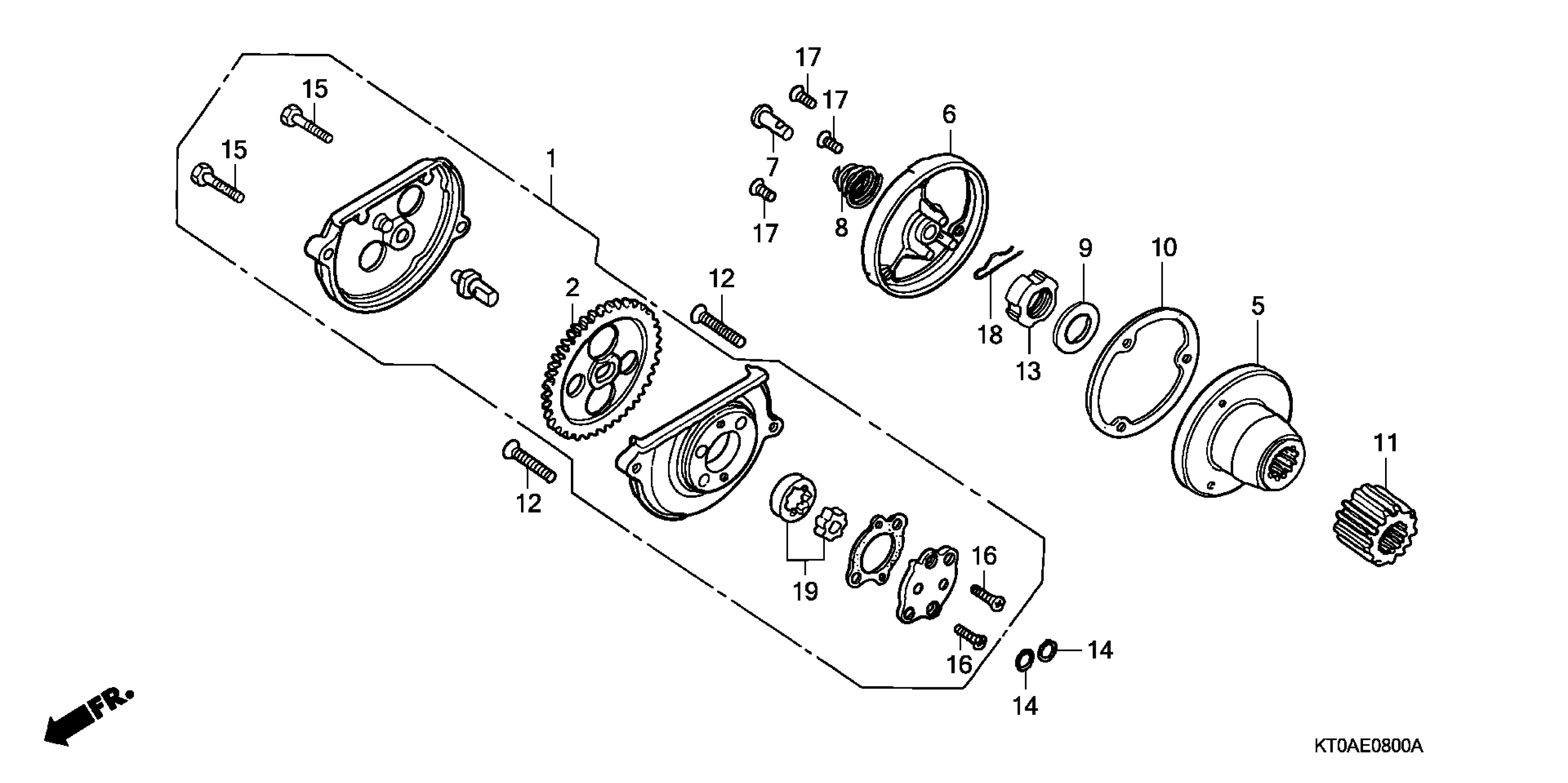

Honda XR200RA (02) MOTORCYCLE, JPN, VIN# JH2ME050-2K600001 OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY., OIL

15100-KB5-721

$177.53

2

GEAR, OIL PUMP DRIVE (37T)

15131-KEH-900

Unavailable

3

ROTOR, OIL PUMP (INNER) (YAMADA)

15331-399-000

Unavailable

4

ROTOR, OIL PUMP (OUTER) (YAMADA)

15332-399-000

Unavailable

5

ROTOR, OIL FILTER

15430-440-030

Unavailable

6

CAP, OIL FILTER ROTOR

15436-107-000

$36.50

7

THROUGH, OIL

15441-KCS-650

$6.25

8

SPRING, OIL THROUGH

15446-107-000

$3.81

9

WASHER, OIL FILTER ROTOR LOCKING

15451-107-000

$3.84

10

GSKT, OIL FILTER CAP This part replaces 15459-KT0-710.

15459-K70-630

$3.30

10

GSKT, OIL FILTER CAP This part replaces 15459-KWK-900.

15459-K70-630

$3.30

11

GEAR, PRIMARY DRIVE (21T)

23121-437-010

$56.34

12

SCREW, FLAT (6X30)

90101-440-000

$2.32

13

NUT, LOCK (16MM)

90231-KCS-651

$4.01

14

O-RING (9.4X2.4)

91304-KK3-830

$2.24

15

BOLT, HEX. (5X20)

92101-05020-0A

$1.07

16

SCREW, FLAT (4X12)

93600-04012-1A

$0.76

17

SCREW, OVAL (5X12)

93700-05012-0A

$0.72

18

PIN, LOCK (8MM)

94251-08000

$1.13
