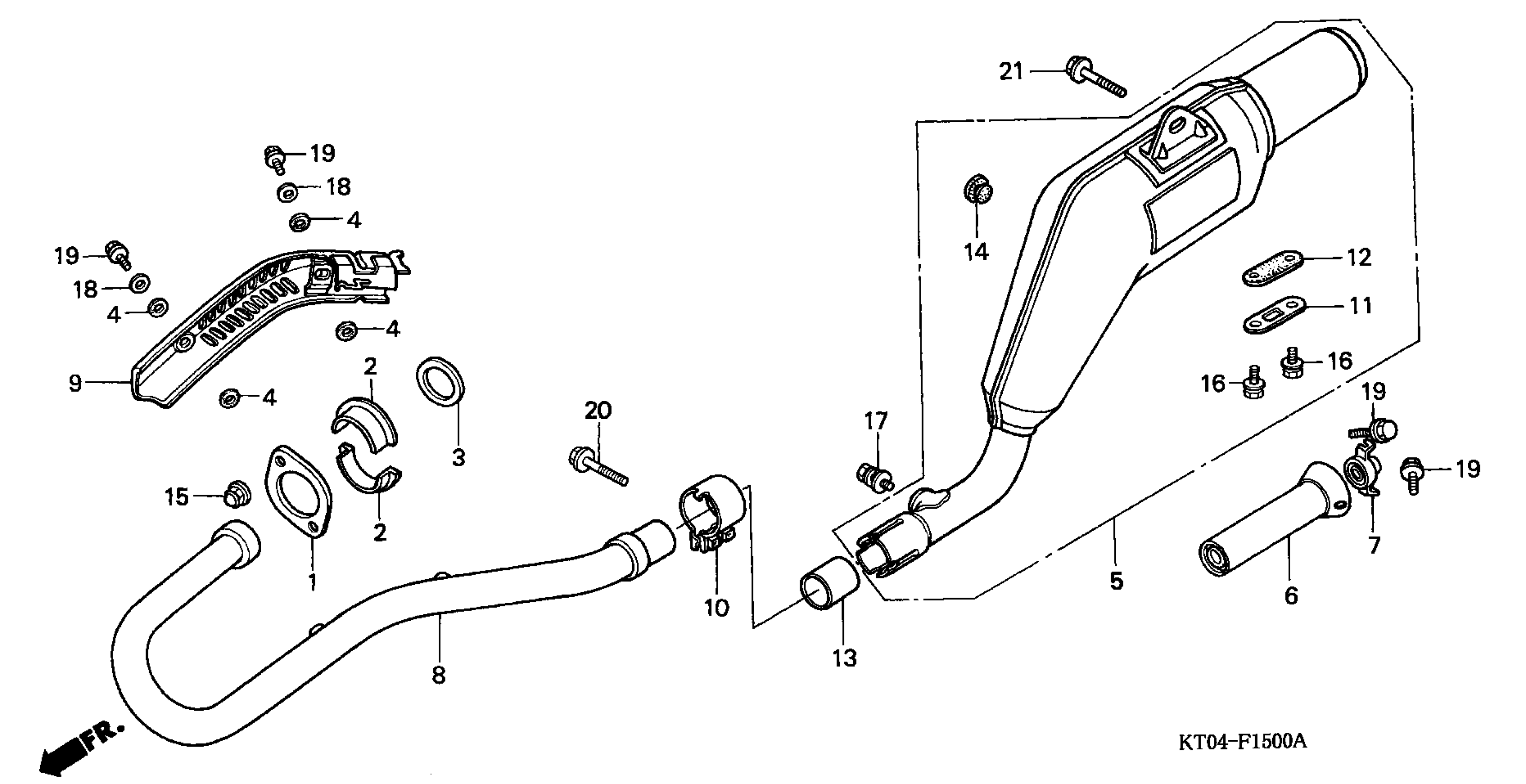

Honda XR200RA (02) MOTORCYCLE, JPN, VIN# JH2ME050-2K600001 MUFFLER Diagram

#

Description
Price

1

JOINT, EX. PIPE

18231-355-000

$29.50

2

COLLAR, EX. PIPE JOINT

18233-437-000

$8.63

3

GASKET, EX. PIPE

18291-MN5-650

$3.61

4

GASKET, PROTECTOR

18292-KBR-000

$3.29

5

MUFFLER

18310-KT0-771

Unavailable

6

PIPE, TAIL

18311-KT0-670

Unavailable

7

PIPE, TAIL END This part replaces 18312-KT1-650.

18312-KT1-670

Unavailable

7

PIPE, TAIL END

18312-KT1-670

Unavailable

8

PIPE, EX.

18320-KT0-670

Unavailable

9

PROTECTOR, EX. PIPE

18321-KT0-830

Unavailable

10

BAND, MUFFLER

18371-VM5-000

$20.12

11

LID, MUFFLER

18373-429-010

$8.43

12

GASKET, MUFFLER LID

18374-MN1-880

$4.01

13

GASKET, EX.

18391-MB0-891

$16.44

14

RUBBER, SIDE COVER

83512-KA4-700

$4.37

15

NUT, CAP (6MM)

90304-438-000

$6.81

16

BOLT-WASHER (6X12)

93401-06012-07

$1.50

17

BOLT-WASHER (8X25)

93403-08025-00

Unavailable

18

WASHER, PLAIN (6MM)

94101-06700

$0.87

19

BOLT, FLANGE (6X10)

96001-06010-07

$1.50

20

BOLT, FLANGE (8X32)

96300-08032-07

$1.75

21

BOLT, FLANGE (8X35)

96300-08035-00

$1.81
