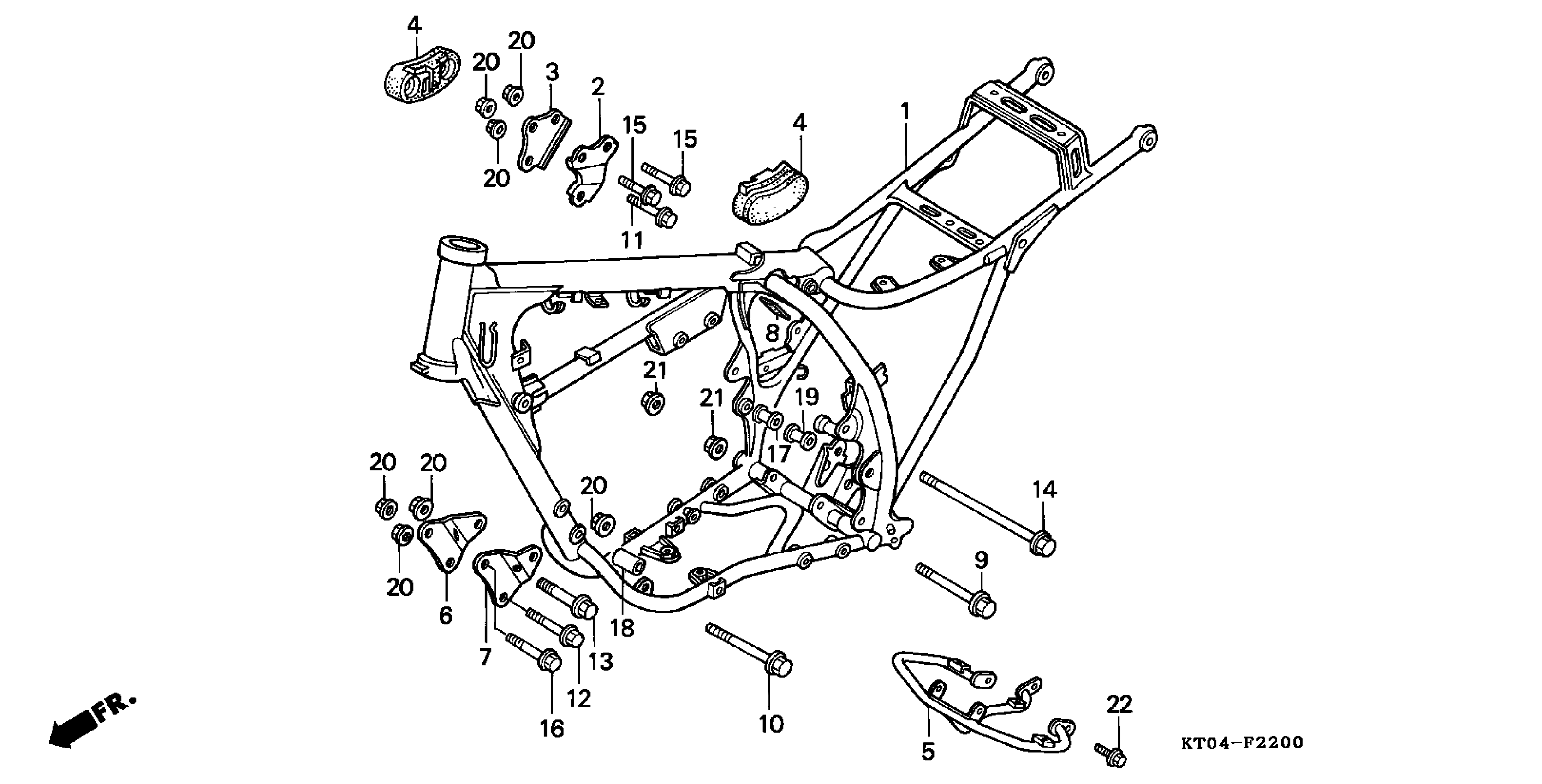

Honda XR200RA (02) MOTORCYCLE, JPN, VIN# JH2ME050-2K600001 FRAME Diagram

#

Description
Price

1

FRAME *NH146M* (ACCURATE SILVER METALLIC)

50100-KT0-910ZB

$1,289.90

2

PLATE, L. ENGINE HANGER (UPPER)

50138-KT0-830

Unavailable

3

PLATE, R. ENGINE HANGER (UPPER)

50139-KT0-830

Unavailable

4

RUBBER, TANK GUARD

50212-KT0-670

Unavailable

5

PIPE, SKID *NH146M* (ACCURATE SILVER METALLIC)

50360-KT0-A30ZA

Unavailable

6

PLATE, R. FR. ENGINE HANGER

50531-KT0-830

Unavailable

7

PLATE, L. FR. ENGINE HANGER

50532-KT0-830

Unavailable

8

RUBBER, SUPPORT STAY SPACER

61703-HB3-300

Unavailable

9

BOLT, FLANGE (10X110)

90105-MG3-000

$9.23

10

BOLT, FLANGE (8X102)

90108-GN1-000

$6.84

11

BOLT, FLANGE (8X50)

90111-KT0-670

$5.54

12

BOLT, FLANGE (8X80)

90112-KT0-670

$5.44

13

BOLT, FLANGE (8X87)

90113-KT0-670

$5.78

14

BOLT, FLANGE (10X233)

90115-KT0-670

$12.02

15

BOLT, FLANGE (8X40)

90118-VM6-000

$4.85

16

BOLT, FLANGE (8X73)

90154-KB7-700

$20.75

17

COLLAR, R. ENGINE

90741-KG1-920

Unavailable

18

COLLAR, ENGINE HANGER

90742-KJ2-000

Unavailable

19

COLLAR, R. ENGINE DISTANCE

90743-KA2-000

Unavailable

20

NUT, FLANGE (8MM)

94050-08000

$1.49

21

NUT, FLANGE (10MM)

94050-10000

$1.59

22

BOLT, FLANGE (8X12)

96300-08012-00

$2.84
