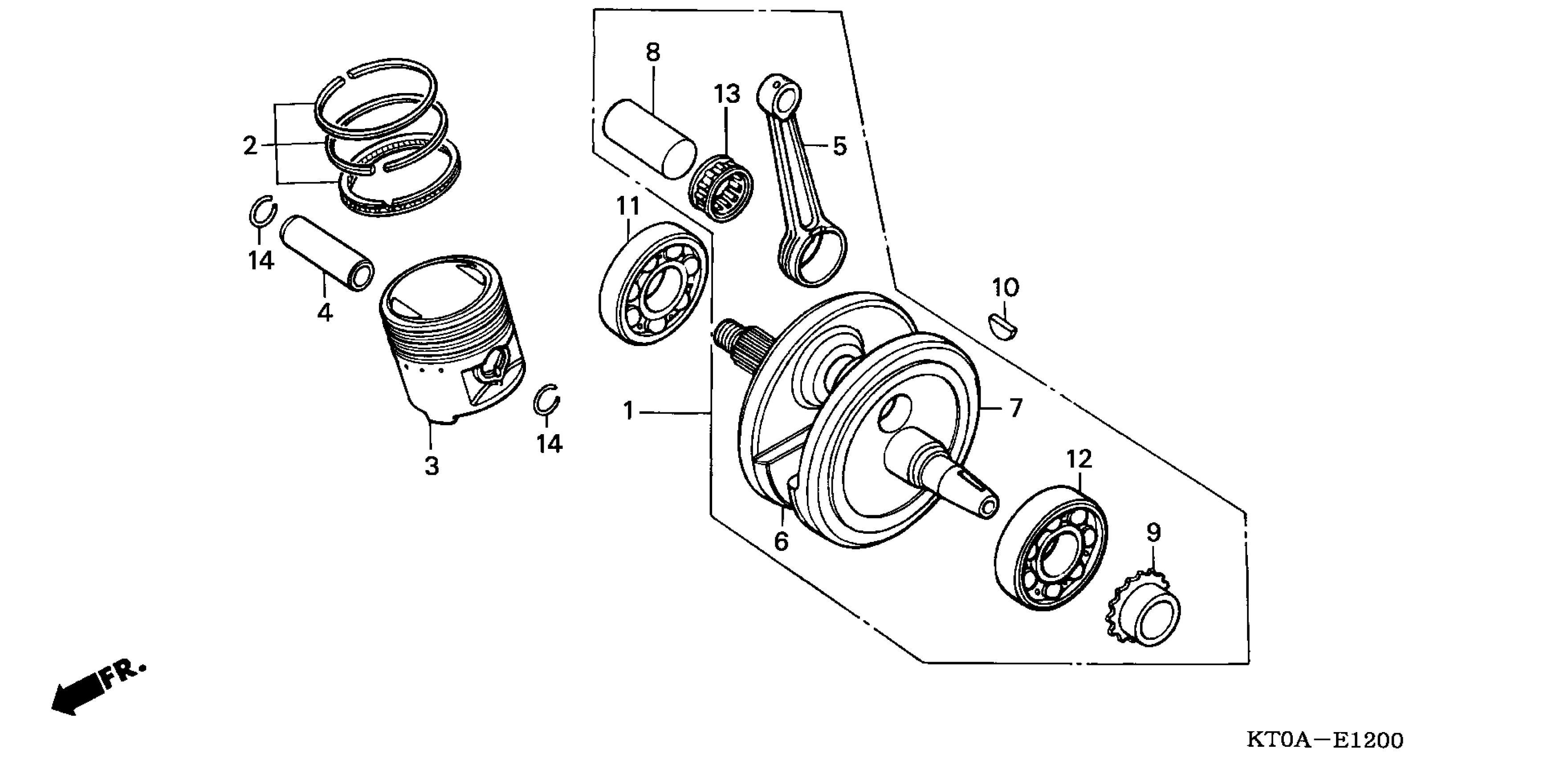

Honda XR200RA (02) MOTORCYCLE, JPN, VIN# JH2ME050-2K600001 CRANKSHAFT + PISTON Diagram

CRANKSHAFT

13000-446-774

Unavailable

RING SET, PISTON (STD)

13011-446-811

$65.57

PISTON (STD)

13101-446-770

Unavailable

PIN, PISTON

13111-425-000

$19.87

ROD, CONNECTING

13201-446-770

$155.62

CRANKSHAFT, R.

13311-446-771

Unavailable

CRANKSHAFT, L.

13300-KF9-318

Unavailable

CRANKSHAFT, L. This part replaces 13321-446-772.

13300-KF9-318

Unavailable

PIN, CRANK

13380-KCN-300

$57.71

SPROCKET, TIMING (16T)

14311-KJ2-300

Unavailable

KEY, WOODRUFF (4MM)

90741-KFB-000

$2.80

BEARING, RADIAL BALL (28X72X18)

91001-KC6-961

$51.54

BEARING, RADIAL BALL (28X72X18) (NTN)

91001-KBR-003

$45.64

BEARING, RADIAL BALL (28X72X18) (NTN) This part replaces 91001-446-771.

91001-KBR-003

$45.64

BEARING A, CONNECTING ROD LARGE END (RED)

91002-446-771

$31.04

BEARING B, CONNECTING ROD LARGE END (BLUE)

91003-446-771

$31.04

BEARING C, CONNECTING ROD LARGE END (WHITE)

91004-446-771

$31.04

CLIP, PISTON PIN (15MM)

94601-15000

$0.94
