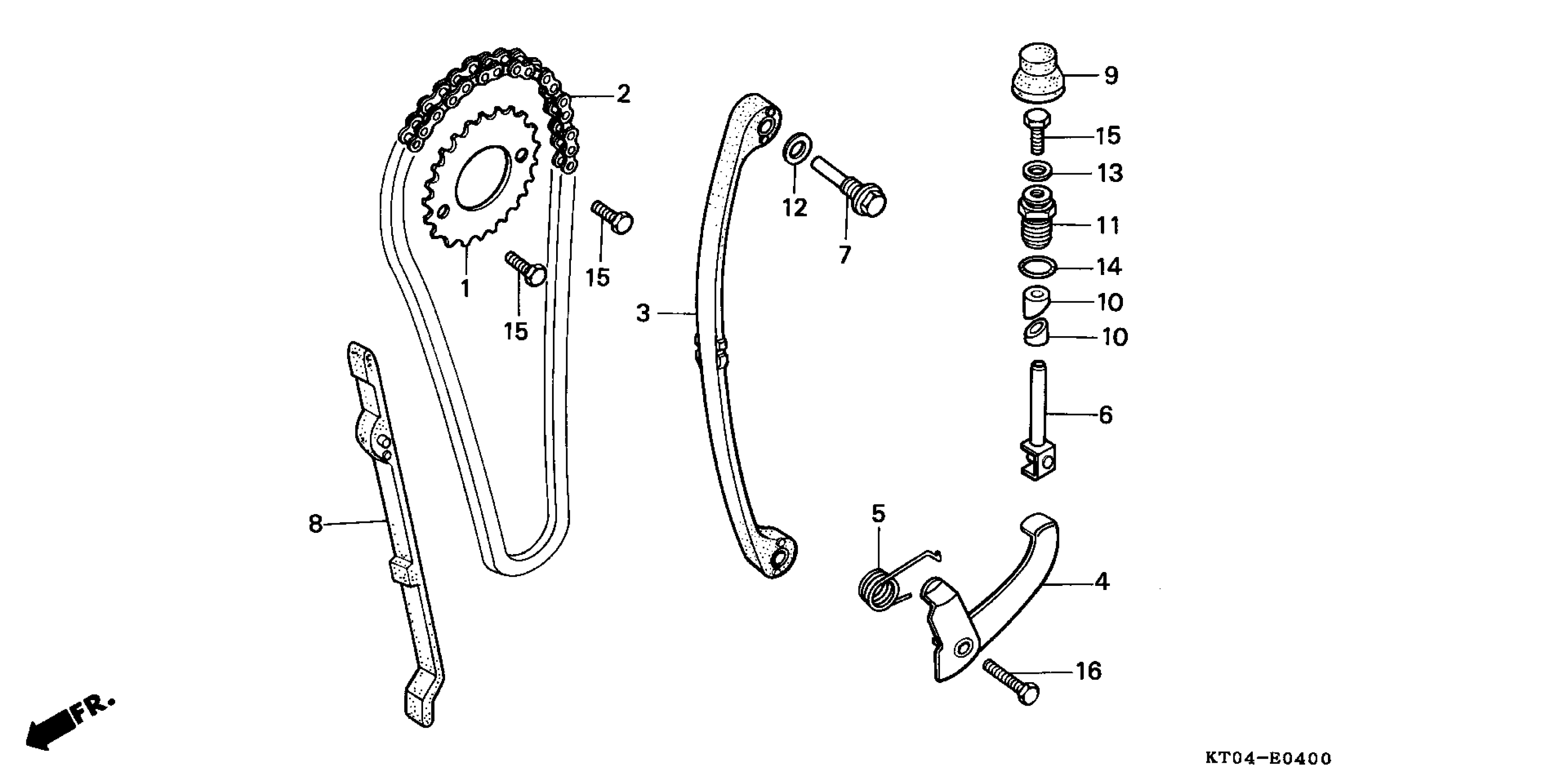

Honda XR200RA (02) MOTORCYCLE, JPN, VIN# JH2ME050-2K600001 CAM CHAIN + TENSIONER Diagram

SPROCKET, CAM (32T)

14321-440-000

$40.92

CHAIN, CAM (100L) (DAIDO) This part replaces 14401-427-003.

14401-958-003

$77.35

CHAIN, CAM (100L) (DAIDO)

14401-958-003

$77.35

TENSIONER, CAM CHAIN

14500-427-000

$70.69

ARM, CAM CHAIN TENSIONER

14510-383-000

$30.65

SPRING, CAM CHAIN TENSIONER

14515-383-000

$4.86

BAR, TENSIONER SETTING

14520-969-010

$23.94

BOLT, CAM CHAIN TENSIONER PIVOT

14535-437-000

$6.01

GUIDE, CAM CHAIN

14550-427-000

$48.58

CAP, TENSIONER ADJ.

14564-383-000

$4.24

COLLAR, SET BAR LOCKING

14626-383-000

$8.76

BOLT, SPECIAL (16MM)

90082-383-000

$24.66

WASHER C (8MM)

90475-703-000

$0.99

WASHER A (6MM)

90478-700-000

Unavailable

O-RING (13X2.5)

91335-567-000

$3.83

BOLT, HEX. (6X10)

92101-06010-0A

$1.29

BOLT, HEX. (6X18)

92101-06018-0A

$1.37
