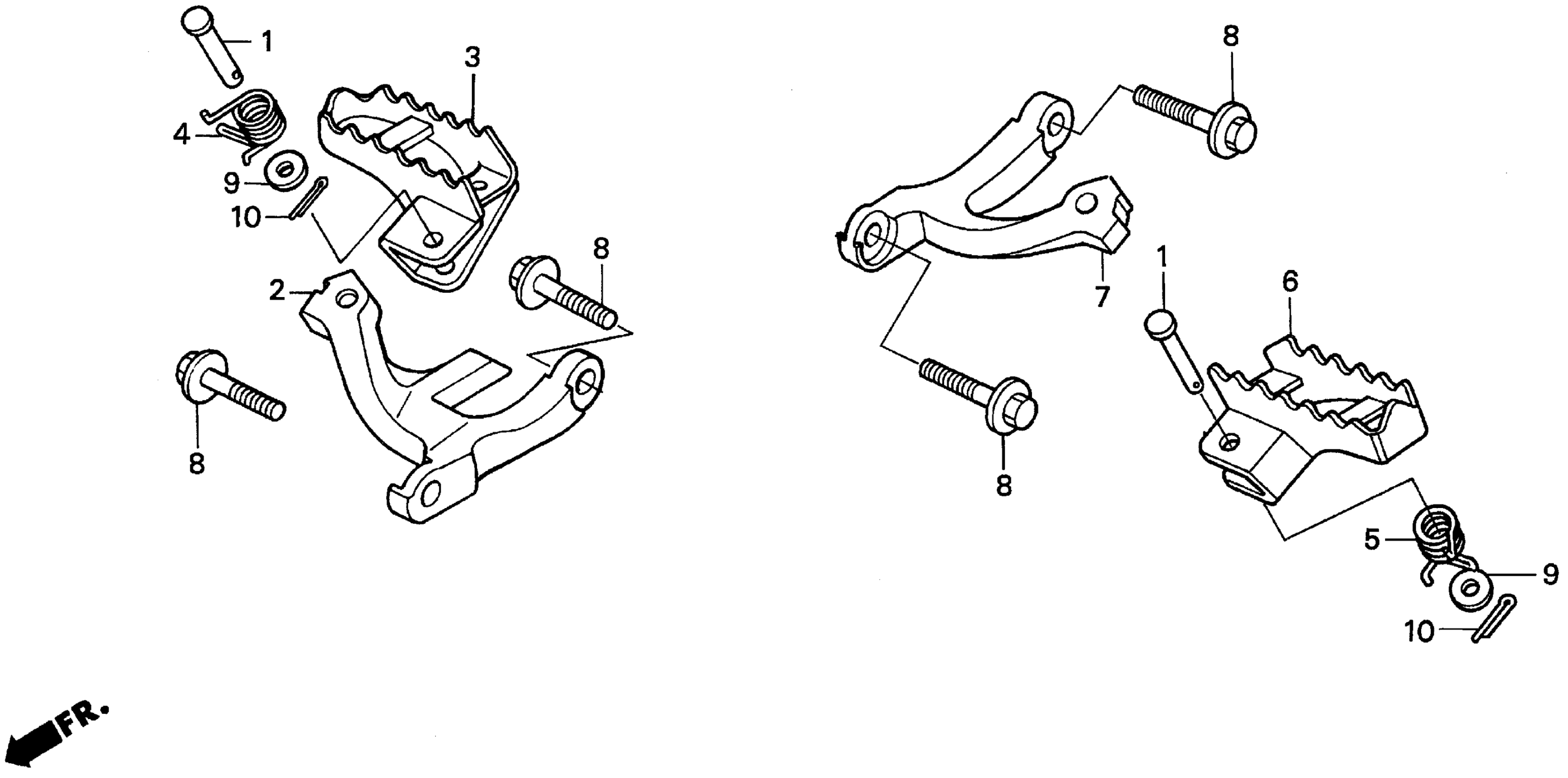

Honda XR200RA (01) MOTORCYCLE, JPN, VIN# JH2ME050-1K500001 STEP Diagram

PIN, STEP BAR JOIN This part replaces 50603-KA3-710.

50603-KL4-000

$6.75

PIN, STEP BAR JOIN

50603-KL4-000

$6.75

ARM, R. STEP *NH105* (MAT BLACK)

50615-KT0-770ZA

Unavailable

STEP, R.

50616-KT0-670

Unavailable

SPRING, R. STEP RETURN

50617-KK0-770

$5.96

SPRING, L. STEP RETURN

50618-KK0-770

$5.96

STEP, L.

50626-KK0-000

Unavailable

ARM, L. STEP *NH105* (MAT BLACK)

50642-KK0-000ZB

Unavailable

BOLT, FLANGE (10X40)

90211-KT0-770

$5.14

WASHER (10.2MM)

90401-430-000

$1.64

PIN, SPLIT (2.0X15)

94201-20150

$1.49
