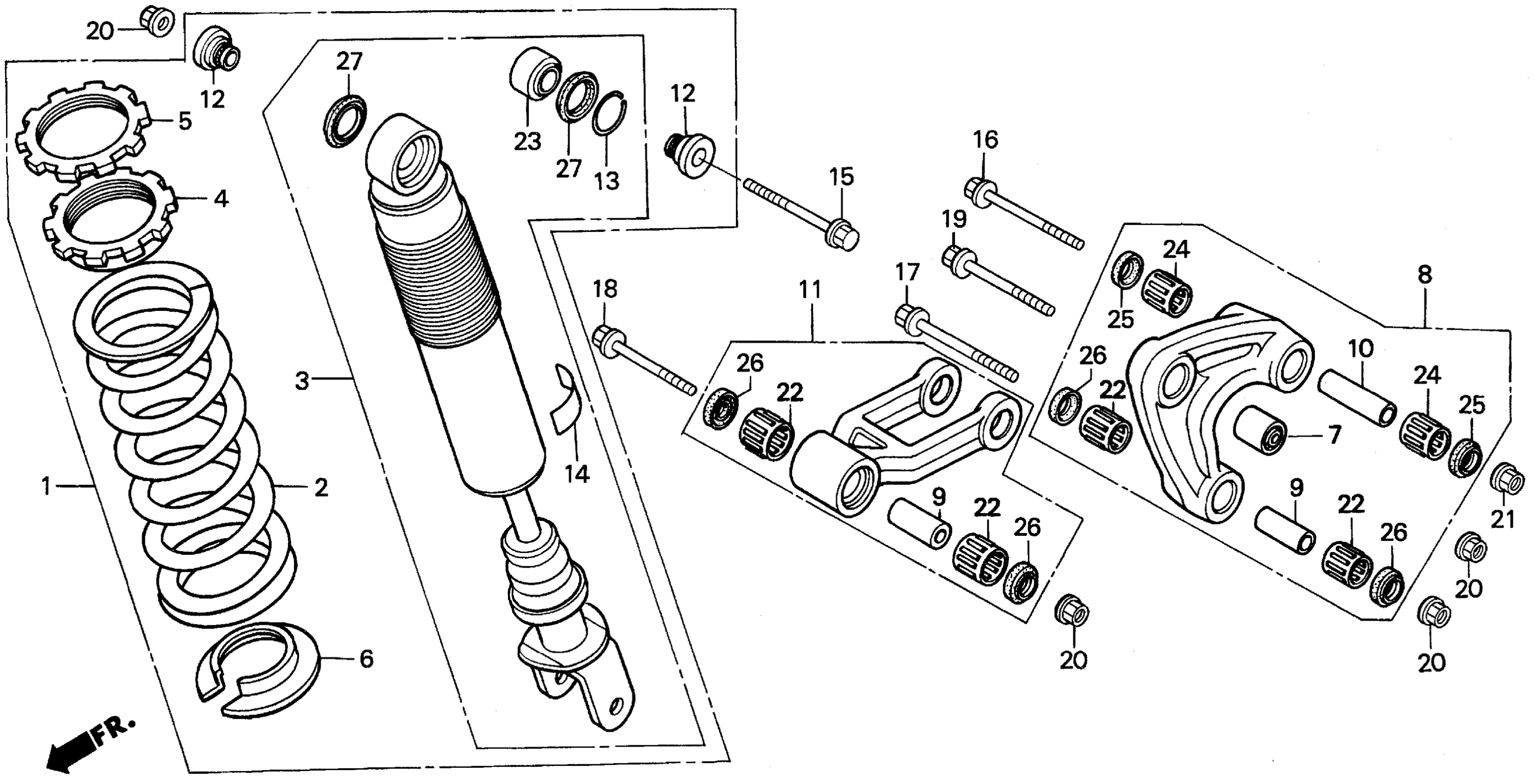

Honda XR200RA (01) MOTORCYCLE, JPN, VIN# JH2ME050-1K500001 REAR SHOCK ABSORBER Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY., RR. (KAYABA)

52400-KT0-A01

Unavailable

2

SPRING, RR. SHOCK ABSORBER

52401-KT0-A01

Unavailable

3

DAMPER, RR.

52410-KT0-691

Unavailable

4

SEAT, SPRING (UPPER)

52422-KT0-691

Unavailable

5

NUT, ADJUST

52423-KT0-691

Unavailable

6

GUIDE, SPRING (LOWER)

52424-HC0-004

$23.80

7

BUSH, DAMPER (LOWER)

52451-MA0-000

$15.12

8

ARM ASSY., SHOCK ABSORBER

52460-KT0-830

Unavailable

9

COLLAR A, CUSHION ARM

52463-KT0-830

Unavailable

10

COLLAR B, CUSHION ARM

52464-KT0-830

Unavailable

11

ROD ASSY., SHOCK CONNECTING

52470-KT0-830

Unavailable

12

COLLAR, SHOCK ABSORBER (UPPER)

52486-KT0-691

Unavailable

13

RING, STOPPER

52487-KA3-731

Unavailable

14

LABEL, RR. DAMPER (ENGLISH)

87516-KV6-610

$4.93

15

BOLT, FLANGE (10X85)

90101-KK6-000

$7.28

16

BOLT, FLANGE (12X90)

90128-KT0-680

$19.72

17

BOLT, FLANGE (10X72)

90150-KF0-000

$15.67

18

BOLT, FLANGE (10X69) This part replaces 90151-KF0-000.

90151-KV6-910

Unavailable

18

BOLT, FLANGE (10X69)

90151-KV6-910

Unavailable

19

BOLT, FLANGE (10X52)

90154-HA8-000

$8.68

20

NUT, U (10MM) (FUSE RASHI)

90304-GE8-003

$3.67

21

NUT, FLANGE (12MM) (FUSERASHI)

90306-KF0-003

$3.85

22

BEARING, NEEDLE (16X22X12)

91077-GS2-702

$19.89

23

BEARING, SPHERICAL (14MM) This part replaces 91077-KA3-731.

91077-KN5-004

$22.62

23

BEARING, SPHERICAL (14MM)

91077-KN5-004

$22.62

24

BEARING, NEEDLE (17.5X24.5X22)

91079-KA3-831

$27.76

25

OIL SEAL (17.5X26X5)

91205-KT2-005

$5.79

26

DUST SEAL (16X23X3.5)

91251-KY7-003

$4.92

27

DUST SEAL, RR. SHOCK (UPPER)

91351-KA3-831

$6.85
