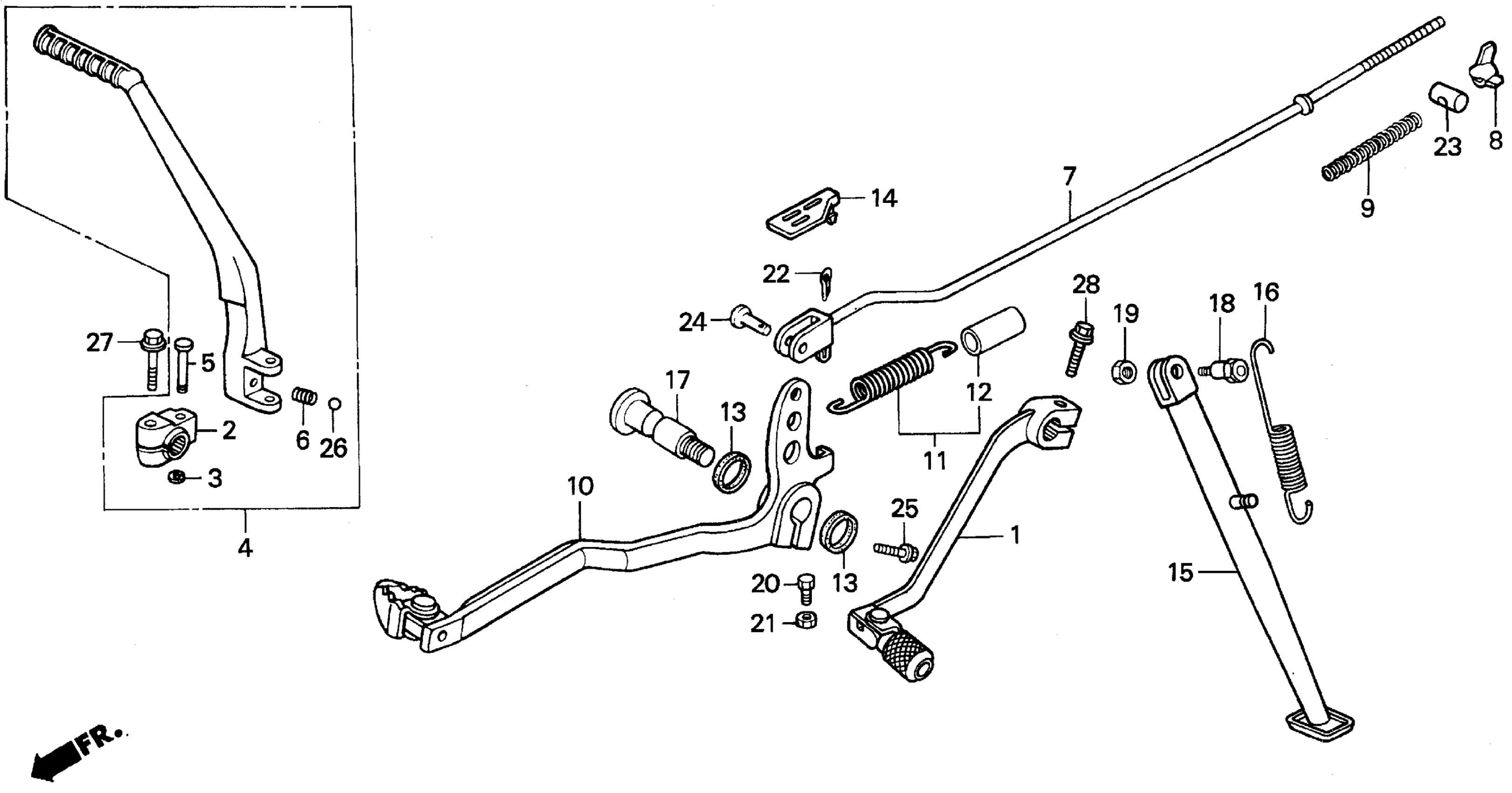

Honda XR200RA (01) MOTORCYCLE, JPN, VIN# JH2ME050-1K500001 PEDAL Diagram

#

Description
Price

1

PEDAL, GEARSHIFT

24700-KT0-770

Unavailable

2

JOINT, KICK ARM

28241-KT0-670

Unavailable

3

CLIP, KICK STARTER ARM

28293-124-000

$2.19

4

ARM ASSY., KICK STARTER

28300-KT0-670

Unavailable

5

PIN, KICK STARTER

28321-427-770

$6.76

6

SPRING, KICK STARTER STOPPER

28333-124-000

$2.06

7

ROD, RR. BRAKE

43451-KT0-000

Unavailable

8

NUT, BRAKE ADJUSTING

43459-434-000

$13.73

9

SPRING A, BRAKE ROD

43472-KB9-750

$2.88

10

PEDAL, BRAKE

46500-KT0-670

Unavailable

11

SPRING SET, BRAKE PEDAL

46513-KT0-670

Unavailable

12

TUBE, BRAKE PEDAL SPRING

46515-KL4-000

Unavailable

13

DUST SEAL (17X20X2.5)

46525-KK0-003

$4.70

14

PROTECTOR, MIDDLE ARM

46526-KT0-680

Unavailable

15

BAR, SIDE STAND

50530-KT0-690

Unavailable

16

SPRING, SIDE STAND

50535-KN5-670

$6.08

17

SHAFT, RR. BRAKE PIVOT

90101-KK0-000

$25.03

18

SCREW, SIDE STAND PIVOT

90108-KG0-000

Unavailable

19

NUT, U (10MM) (FUSE RASHI)

90304-GE8-003

$3.42

20

BOLT, HEX. (6X25)

92201-06025-0A

Unavailable

21

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.19

21

NUT, HEX. (6MM)

94001-06200-0S

$1.19

22

PIN, SPLIT (2.0X12)

94201-20120

$0.94

23

JOINT B, BRAKE ARM

95015-32001

$0.86

24

PIN C, JOINT

95015-53000

$2.85

25

BOLT, FLANGE (8X25)

95701-08025-00

$1.62

26

BALL, STEEL (#8) (1/4)

96211-08000

$1.13

27

BOLT, FLANGE (8X25)

96300-08025-07

$2.00

28

BOLT, FLANGE (6X20)

96300-06020-07

Unavailable

28

BOLT, FLANGE (6X20) This part replaces 96500-06020-07.

96300-06020-07

Unavailable
