Description

Price

1

PETCOCK ASSY.

16950-KT0-831

$96.27

2

O-RING (11.8X3.55)

16997-467-000

$2.11

3

RUBBER, FUEL TANK MOUNTING

17508-KA3-710

$8.75

4

COLLAR, FUEL TANK SETTING

17509-KA3-710

$11.54

5

BAND, RR. TANK

17516-KT0-670

$30.00

6

TANK SET, FUEL (TYPE1) (WL) This part replaces 17520-KT0-A40ZA.

17520-KT0-A41ZA

Unavailable

6

TANK SET, FUEL (TYPE1) (WL)

17520-KT0-A41ZA

Unavailable

7

TUBE, FUEL CAP BREATHER

17521-429-000

$6.98

8

RUBBER, RR. TANK

17611-KT0-670

Unavailable

9

RUBBER, FR. TANK

17612-KT0-670

Unavailable

10

CAP ASSY., FUEL TANK

17620-KT1-780

$31.82

11

GASKET, FUEL CAP This part replaces 17624-KT1-780.

17624-KT1-781

$4.81

12

COLLAR, FUEL TANK SETTING

17626-467-000

$4.76

13

COLLAR, LOCK SETTING

83119-MG9-000

$5.90

14

SCREW, PAN (6X14)

93500-06014-0A

$1.49

15

BULK HOSE, FUEL (5.5X3000) (5.5X145)

95001-55003-60M

$47.32

16

CLIP, TUBE (B10)

95002-02100

$1.90

17

CLIP, TUBE (C9)

95002-50000

$1.49

18

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

19

BOLT, FLANGE (6X40)

96300-06040-00

$2.00

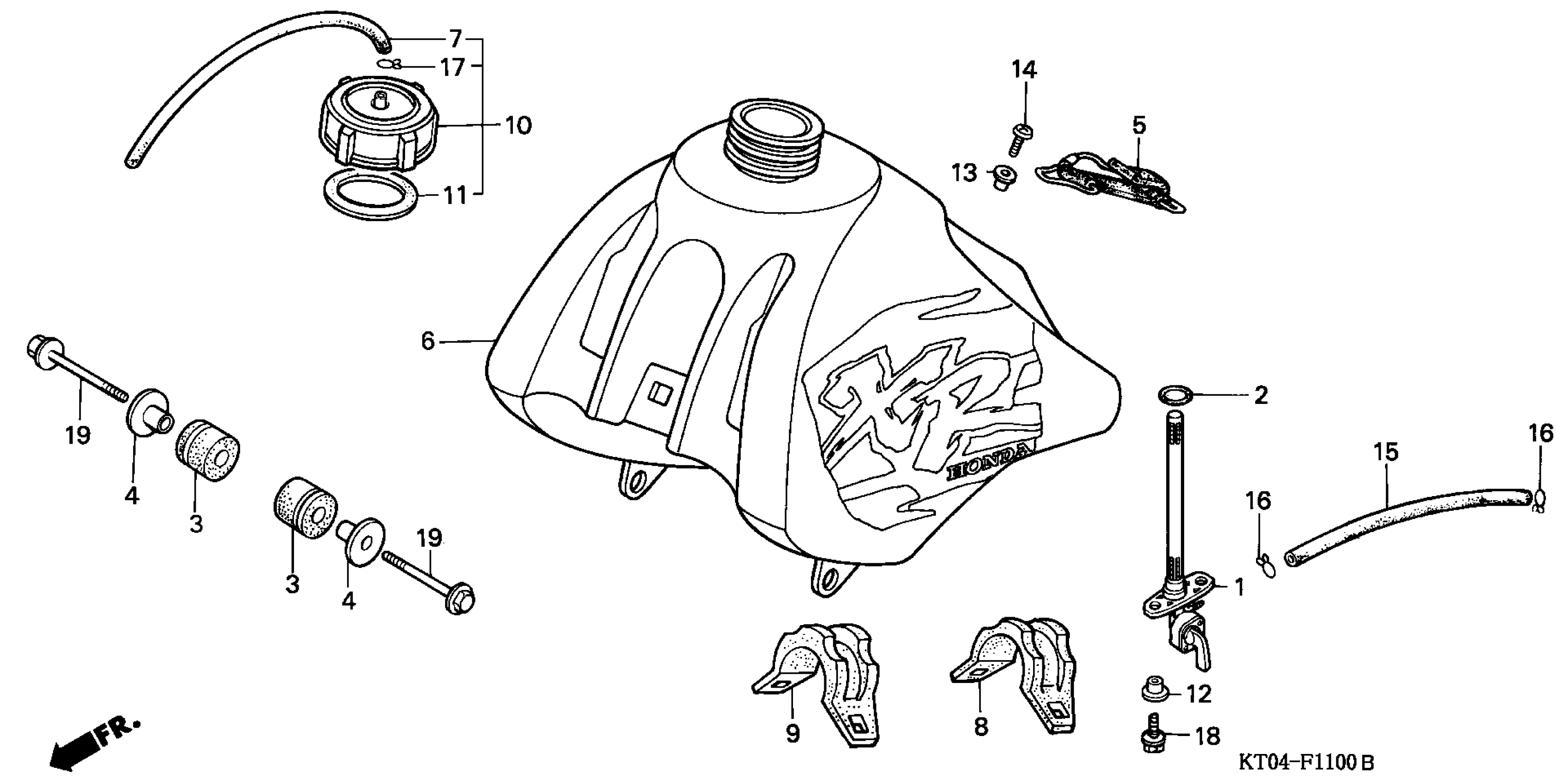

Honda XR200RA (01) MOTORCYCLE, JPN, VIN# JH2ME050-1K500001 FUEL TANK Diagram

PETCOCK ASSY.

O-RING (11.8X3.55)

RUBBER, FUEL TANK MOUNTING

COLLAR, FUEL TANK SETTING

BAND, RR. TANK

TANK SET, FUEL (TYPE1) (WL) This part replaces 17520-KT0-A40ZA.

TANK SET, FUEL (TYPE1) (WL)

TUBE, FUEL CAP BREATHER

RUBBER, RR. TANK

RUBBER, FR. TANK

CAP ASSY., FUEL TANK

GASKET, FUEL CAP This part replaces 17624-KT1-780.

COLLAR, FUEL TANK SETTING

COLLAR, LOCK SETTING

SCREW, PAN (6X14)

BULK HOSE, FUEL (5.5X3000) (5.5X145)

CLIP, TUBE (B10)

CLIP, TUBE (C9)

BOLT, FLANGE (6X16)

BOLT, FLANGE (6X40)
