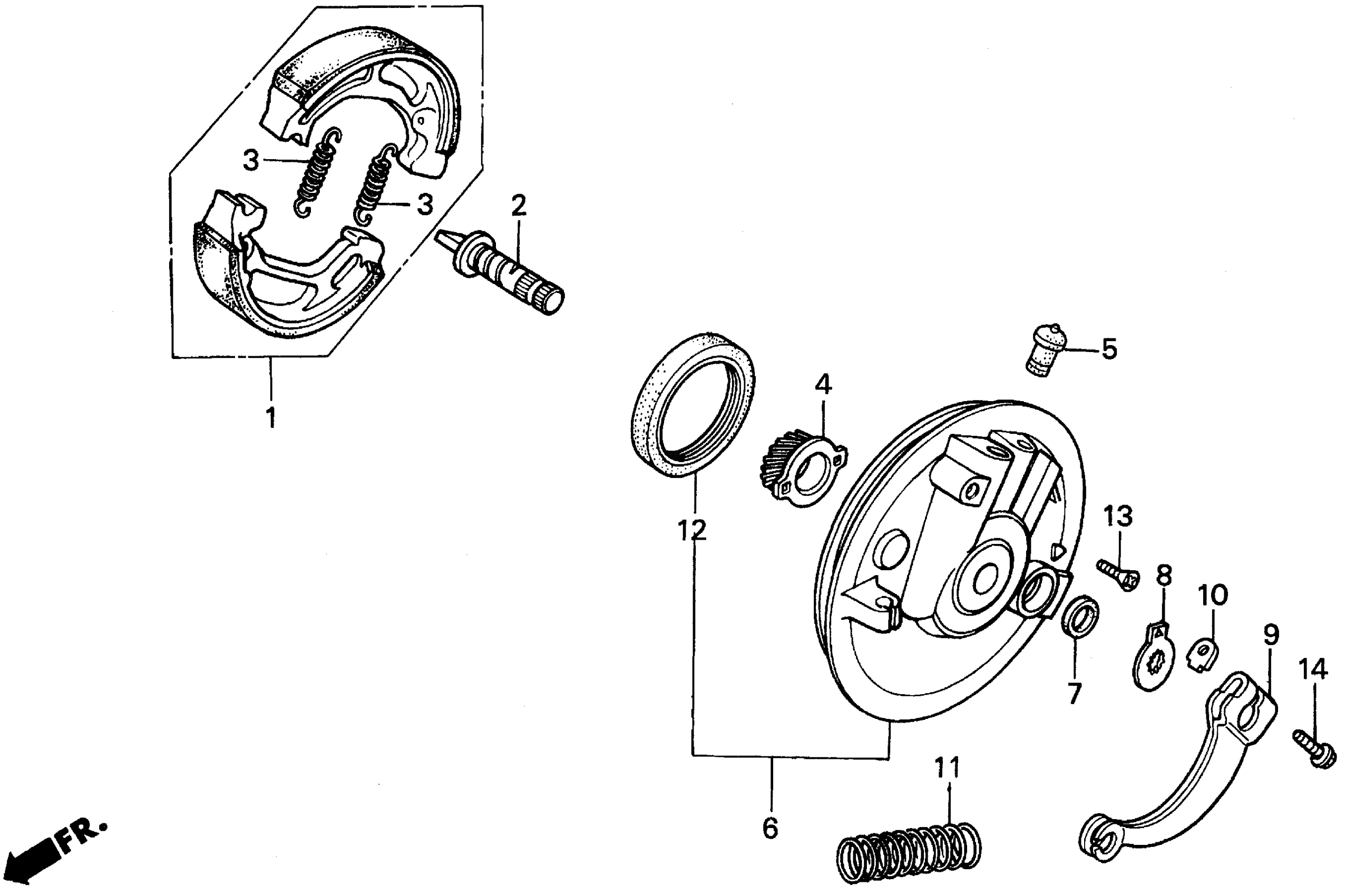

Honda XR200RA (00) MOTORCYCLE, JPN, VIN# JH2ME050-YK400001 FRONT BRAKE PANEL Diagram

SHOE SET, BRAKE (ASK) This part replaces 06430-KT0-305.

06430-GBJ-J10

$29.23

SHOE SET, BRAKE (ASK)

06430-GBJ-J10

$29.23

CAM, RR. BRAKE

43141-KJ2-000

Unavailable

SPRING, BRAKE SHOE

43151-110-000

$2.92

GEAR, SPEEDOMETER

44804-KA2-003

Unavailable

CAP, GEAR BOX HOLE

44835-365-671

Unavailable

PANEL SUB, FR. BRAKE *NH105* (MAT BLACK)

45010-KK0-305ZA

Unavailable

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

INDICATOR, FR. BRAKE

45145-KK0-000

Unavailable

ARM, FR. BRAKE

45410-KT0-830

Unavailable

NUT, FR. BRAKE ARM SETTING

45436-001-000

$1.80

SPRING, FR. BRAKE CABLE

45454-360-010

$5.14

OIL SEAL (47X60X7) (ARAI)

91251-GK4-003

$9.19

OIL SEAL (47X60X7) (ARAI) This part replaces 91251-121-000.

91251-GK4-003

$9.19

OIL SEAL (47X60X7) (ARAI) This part replaces 91251-121-003.

91251-GK4-003

$9.19

OIL SEAL (47X60X7) (NOK)

91251-361-005

$13.39

SCREW, OVAL (5X18)

93700-05018-0A

$1.49

BOLT, FLANGE (6X35)

90102-KAB-000

$2.74
