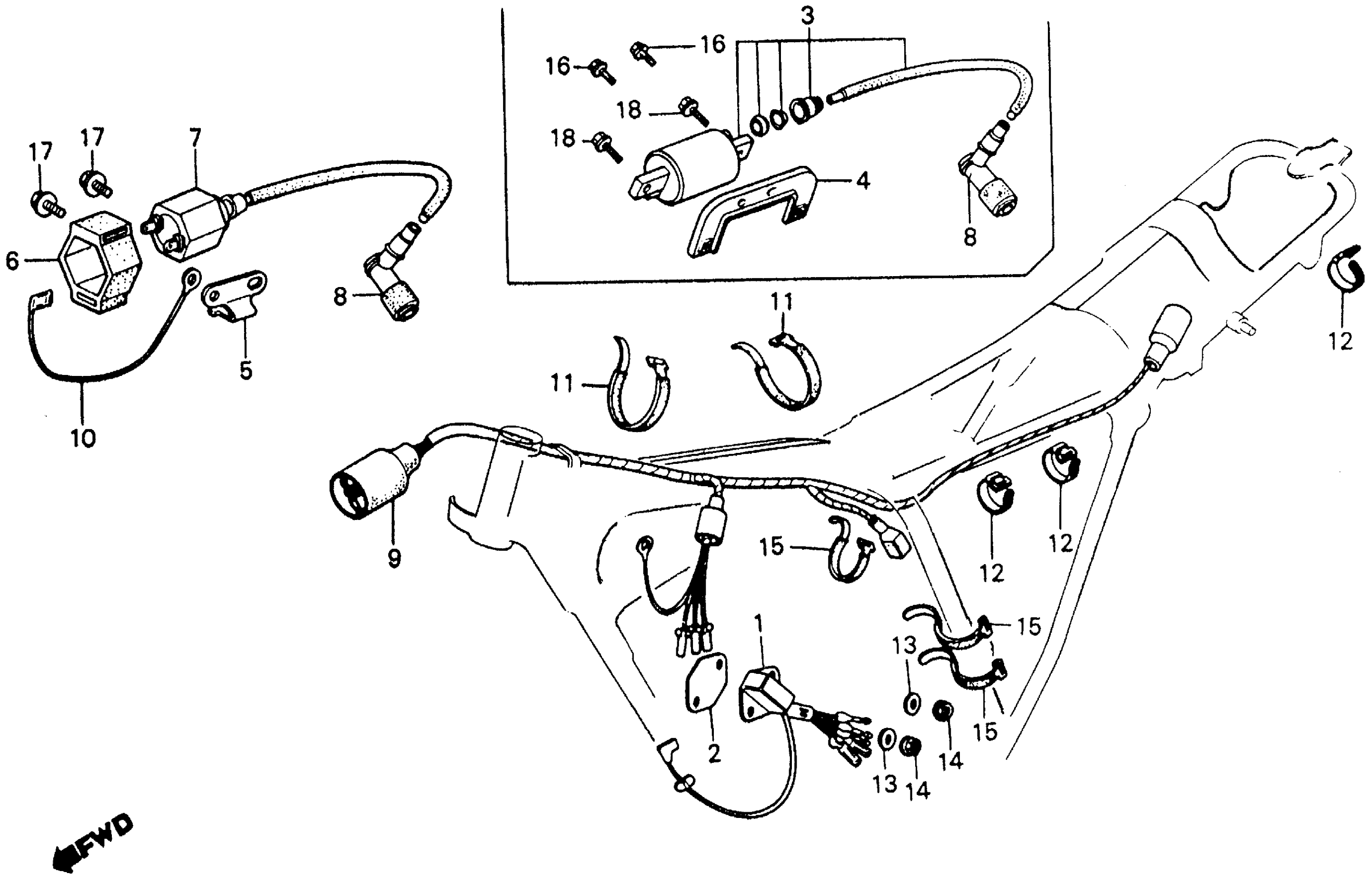

Honda XR200A (84) MOTORCYCLE, JPN, VIN# JH2ME020-EK500001 WIRE HARNESS + C.D.I. UNIT + IGNITION COIL Diagram

MODULE, IGN CONT This part replaces 30400-437-013.

30400-437-023

Unavailable

PLATE, IGNITION CONTROL MODULE SETTING (NOT AVAILABLE)

30401-446-000

Unavailable

STAY, IGNITION COIL (NOT AVAILABLE)

30501-446-850

Unavailable

SUSPENSION, IGNITION COIL This part replaces 30506-KK4-000.

30506-VM6-000

Unavailable

SUSPENSION, IGNITION COIL

30506-VM6-000

Unavailable

COIL, IGNITION | Use up to Frame SN EK503164 This part replaces 30510-KJ2-000.

30510-KJ2-405

$86.48

COIL, IGNITION | Use up to Frame SN EK503164 This part replaces 30510-KJ2-003.

30510-KJ2-405

$86.48

COIL, IGNITION This part replaces 30510-KJ2-003.

30510-KJ2-405

$86.48

COIL, IGNITION | Use up to Frame SN EK503164

30510-KJ2-405

$86.48

COIL, IGNITION

30510-KJ2-405

$86.48

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-152-153.

30700-KE2-942

$17.87

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-152-163.

30700-KE2-942

$17.87

SUB-CABLE A

32101-446-850

Unavailable

BAND, CABLE

32161-399-000

Unavailable

WASHER (6MM)

90485-286-000

$1.55

NUT, FLANGE (6MM)

94050-06000

$1.49

BAND B1, CABLE

32161-404-000

$2.23

BAND B1, CABLE This part replaces 95014-61100.

32161-404-000

$2.23

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.67

BOLT, FLANGE (6X12)

95701-06012-08

$1.67
