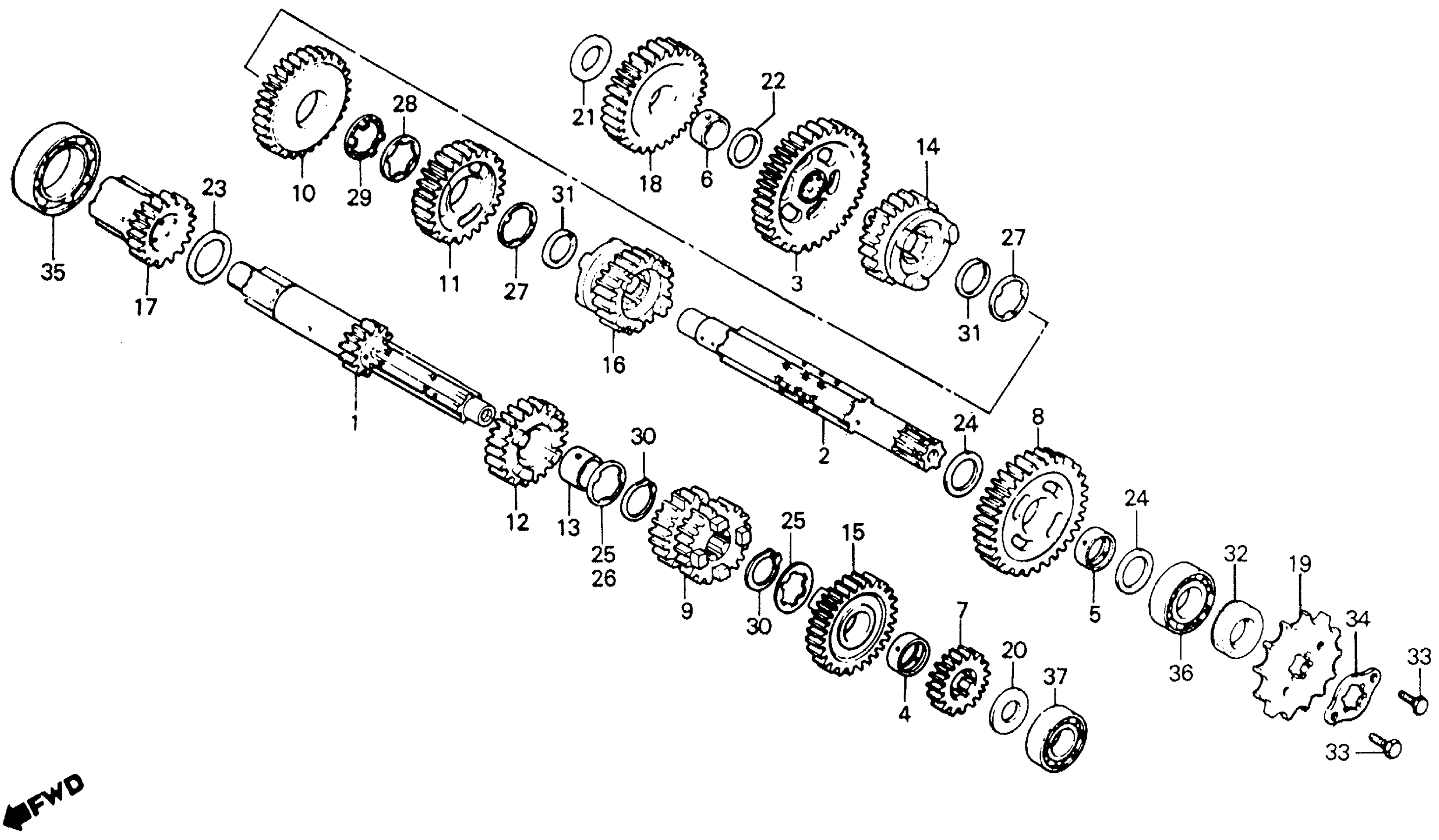

Honda XR200A (84) MOTORCYCLE, JPN, VIN# JH2ME020-EK500001 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION (13T)

23211-446-770

Unavailable

2

COUNTERSHAFT, TRANSMISSION

23221-446-000

Unavailable

3

GEAR, COUNTERSHAFT LOW (36T)

23420-KT0-770

Unavailable

3

GEAR, COUNTERSHAFT LOW (36T) This part replaces 23420-446-770.

23420-KT0-770

Unavailable

4

BUSH (20MM) This part replaces 23431-KA2-000.

23431-KFB-000

$20.66

4

BUSH (20MM)

23431-KFB-000

$20.66

5

BUSH (20MM)

23431-437-000

$28.16

6

BUSHING

23431-439-000

Unavailable

7

GEAR, MAINSHAFT SECOND (17T)

23441-KT0-680

Unavailable

7

GEAR, MAINSHAFT SECOND (17T) This part replaces 23441-446-770.

23441-KT0-680

Unavailable

8

GEAR, COUNTERSHAFT SECOND (33T)

23451-KT0-680

Unavailable

8

GEAR, COUNTERSHAFT SECOND (33T) This part replaces 23451-446-650.

23451-KT0-680

Unavailable

9

GEAR, MAINSHAFT THIRD & FOURTH (23T/20T)

23461-446-650

Unavailable

10

GEAR, COUNTERSHAFT THIRD (29T)

23471-446-650

Unavailable

11

GEAR, COUNTERSHAFT FOURTH (26T)

23491-446-650

Unavailable

12

GEAR, MAINSHAFT FIFTH (26T)

23501-KA2-000

Unavailable

13

BUSH (20MM)

23502-KA2-000

$29.67

14

GEAR, COUNTERSHAFT FIFTH (24T)

23511-446-650

Unavailable

15

GEAR, MAINSHAFT TOP (28T)

23512-KA2-000

Unavailable

16

GEAR, COUNTERSHAFT TOP (22T)

23513-446-650

Unavailable

17

GEAR, STARTER (19T)

23520-437-000

Unavailable

18

GEAR ONLY, IDLE STARTER (28T)

23531-437-310

Unavailable

19

SPROCKET, DRIVE (13T)

23801-446-770

Unavailable

20

WASHER, THRUST (15MM)

90451-107-000

$1.49

21

WASHER, THRUST (15MM)

90451-365-000

$3.08

22

WASHER, THRUST (16.5MM)

90452-437-000

$3.40

23

WASHER A, THRUST (20MM)

90453-107-000

$2.25

24

WASHER, THRUST (20MM)

90454-107-000

$1.80

25

WASHER A, SPLINE (20MM)

90456-KA2-000

Unavailable

27

WASHER, SPLINE (22MM)

90463-437-000

$3.49

28

WASHER, COUNTERSHAFT THIRD SPLINE

90464-360-000

$4.87

29

WASHER, LOCK

90465-360-000

$6.74

30

CIRCLIP (OUTER) (22MM)

90601-437-000

$3.20

31

SET-RING (20MM)

90605-200-000

$2.92

32

OIL SEAL (20X34X6) (NOK) This part replaces 91201-446-003.

91201-446-004

$6.78

32

OIL SEAL (20X34X6) (NOK)

91201-446-004

$6.78

33

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

33

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

34

PLATE B, FIXING

95014-92100

$1.49

35

BEARING, RADIAL BALL (6006)

96100-60060-00

$13.13

36

BEARING, RADIAL BALL (6204)

96100-62040-00

$12.22

37

BEARING, RADIAL BALL (6202U)

96140-62020-10

$10.85
