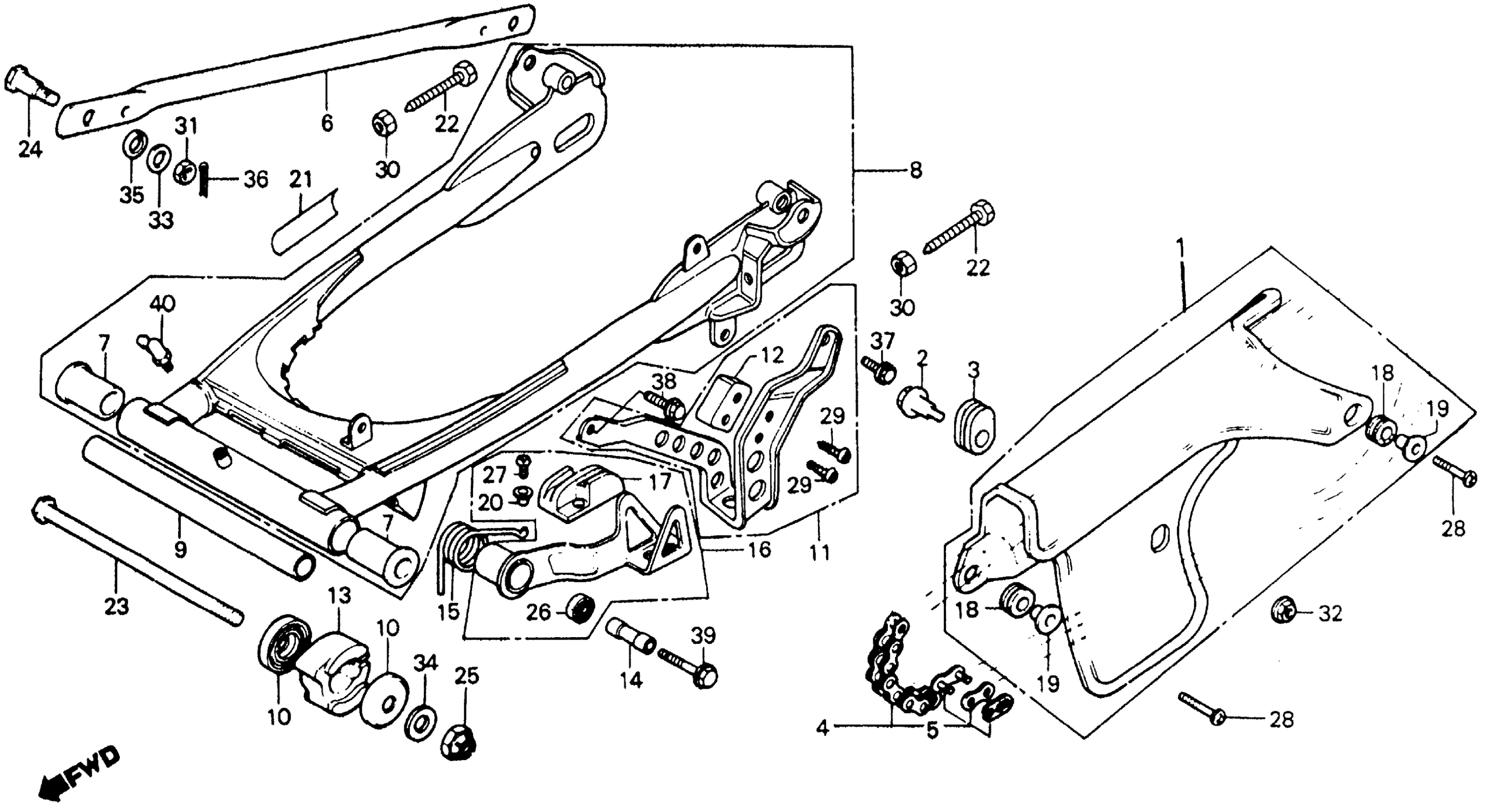

Honda XR200A (84) MOTORCYCLE, JPN, VIN# JH2ME020-EK500001 SWINGARM + CHAIN GUARD Diagram

#

Description
Price

1

GUARD, DRIVE CHAIN (NOT AVAILABLE)

40510-446-771

Unavailable

2

BOLT, CHAIN GUARD

40512-437-000

Unavailable

3

RUBBER, CHAIN GUARD SETTING (NOT AVAILABLE)

40513-446-770

Unavailable

4

CHAIN, DRIVE (102L) (DAIDO)

405W3-434-505

Unavailable

4

CHAIN, DRIVE (102L) (DAIDO) This part replaces 40530-KK4-005.

405W3-434-505

Unavailable

4

CHAIN, DRIVE (102L) (DAIDO) This part replaces 40530-434-003.

405W3-434-505

Unavailable

5

MASTER LINK This part replaces 40531-357-305.

40531-958-003

Unavailable

5

MASTER LINK This part replaces 40531-381-000.

40531-958-003

Unavailable

5

MASTER LINK This part replaces 40531-430-003.

40531-958-003

Unavailable

5

MASTER LINK This part replaces 40531-430-005.

40531-958-003

Unavailable

5

MASTER LINK This part replaces 40531-434-003.

40531-958-003

Unavailable

5

MASTER LINK

40531-958-003

Unavailable

5

MASTER LINK This part replaces 40540-357-305.

40531-958-003

Unavailable

6

ARM, RR. BRAKE STOPPER (NOT AVAILABLE)

43431-446-770

Unavailable

7

BUSH, PIVOT THRUST

52109-360-310

$41.11

8

SWINGARM ASSY. *R119* (FLASH RED)

52110-446-770ZB

Unavailable

9

COLLAR, SWINGARM

52141-437-010

Unavailable

10

CAP, SWINGARM DUST SEAL (NOK) This part replaces 52144-360-000.

52144-360-005

$11.80

10

CAP, SWINGARM DUST SEAL (NOK) This part replaces 52144-360-003.

52144-360-005

$11.80

10

CAP, SWINGARM DUST SEAL (NOK)

52144-360-005

$11.80

12

STOPPER, CHAIN GUARD (NOT AVAILABLE)

52158-446-770

Unavailable

13

SLIDER, CHAIN

52170-437-000

$21.13

14

COLLAR, CHAIN TENSIONER

52171-434-020

Unavailable

15

SPRING, CHAIN TENSIONER

52174-434-000

Unavailable

16

TENSIONER ASSY., CHAIN *R23* (TAHITIAN RED) (NOT AVAILABLE) This part replaces 52175-446-000ZB.

52175-446-000ZA

Unavailable

17

SLIPPER, TENSIONER

52178-434-000

Unavailable

18

RUBBER, FR. FENDER SETTING

61103-357-000

$3.37

19

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

19

COLLAR, RR. FENDER

61105-428-000

Unavailable

19

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.42

20

COLLAR, HEADLIGHT SETTING

61304-292-000

$3.47

21

LABEL, MUFFLER CAUTION

87504-028-670

$2.92

22

BOLT, CHAIN ADJUSTING

90119-300-000

$9.49

23

BOLT, SWINGARM PIVOT

90121-KF9-900

Unavailable

23

BOLT, SWINGARM PIVOT This part replaces 90121-437-000.

90121-KF9-900

Unavailable

24

BOLT, RR. BRAKE STOPPER ARM (NOT AVAILABLE)

90133-331-770

Unavailable

25

NUT, SELF-LOCK (12MM)

90353-045-000

$5.99

26

OIL SEAL (14X20X3)

91201-434-003

$4.26

26

OIL SEAL (14X20X3.2) This part replaces 91201-434-005.

91201-434-003

$4.26

27

SCREW, PAN (5X10)

93500-05010-0A

$1.49

28

SCREW, PAN (6X22) This part replaces 93500-06022.

93500-06022-0A

$1.49

28

SCREW, PAN (6X22)

93500-06022-0A

$1.49

29

SCREW, TAPPING (5X10)

93901-35180

$1.49

31

NUT, HEX. (8MM)

94001-08000-0S

$1.49

32

NUT, FLANGE (6MM)

94050-06000

$1.49

33

WASHER, PLAIN (8MM)

94101-08000

$1.49

34

WASHER, PLAIN (12MM)

94101-12000

$1.49

35

WASHER, SPRING (8MM)

94111-10000

$1.49

36

PIN, COTTER (2.0X15)

94201-20150

$1.49

37

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.67

37

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

38

BOLT, FLANGE (6X14) This part replaces 95700-06014-08.

95701-06014-08

$1.55

38

BOLT, FLANGE (6X14)

95701-06014-08

$1.55

39

BOLT, FLANGE (8X45) This part replaces 95700-08045-00.

95701-08045-00

$1.49

39

BOLT, FLANGE (8X45)

95701-08045-00

$1.49

40

FITTING, GREASE (C.76)

96201-60000

$2.87
