Description

Price

3

COVER, DOOR SWITCH

75891-611-000

$5.54

4

SEAT This part replaces 77200-446-850.

77200-446-405

Unavailable

5

STAY, R. RR. SEAT

77201-446-000

Unavailable

6

STAY, L. RR. SEAT (NOT AVAILABLE)

77202-446-000

Unavailable

7

RUBBER A, SEAT SETTING

77203-437-000

$18.34

8

RUBBER B, SEAT SETTING

77204-437-000

Unavailable

9

COLLAR, SEAT SETTING

77205-446-000

Unavailable

10

GUIDE, DUST (NOT AVAILABLE)

77206-446-300

Unavailable

11

RUBBER, SEAT SETTING

77207-446-000

Unavailable

15

TOOL SET (NOT AVAILABLE)

89010-446-770

Unavailable

16

WRENCH, EYE (19MM) (NOT AVAILABLE)

89225-446-770

Unavailable

17

PROTECTOR, EYE WRENCH (NOT AVAILABLE)

89226-446-770

Unavailable

18

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

18

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

19

BOLT, FLANGE (8X20) This part replaces 95700-08020-00.

95701-08020-00

$1.78

19

BOLT, FLANGE (8X20)

95701-08020-00

$1.78

20

SCREW, TAPPING

93901-14020

Unavailable

22

NUT, FLANGE (6MM)

94050-06000

$1.49

23

WASHER, PLAIN (8MM)

94102-08700

$1.49

25

SCREWDRIVER 1, PHILLIPS (NO.2)

99003-10000

$3.27

26

SCREWDRIVER 3, STRAIGHT SLOT (NO.2)

99003-30000

$3.27

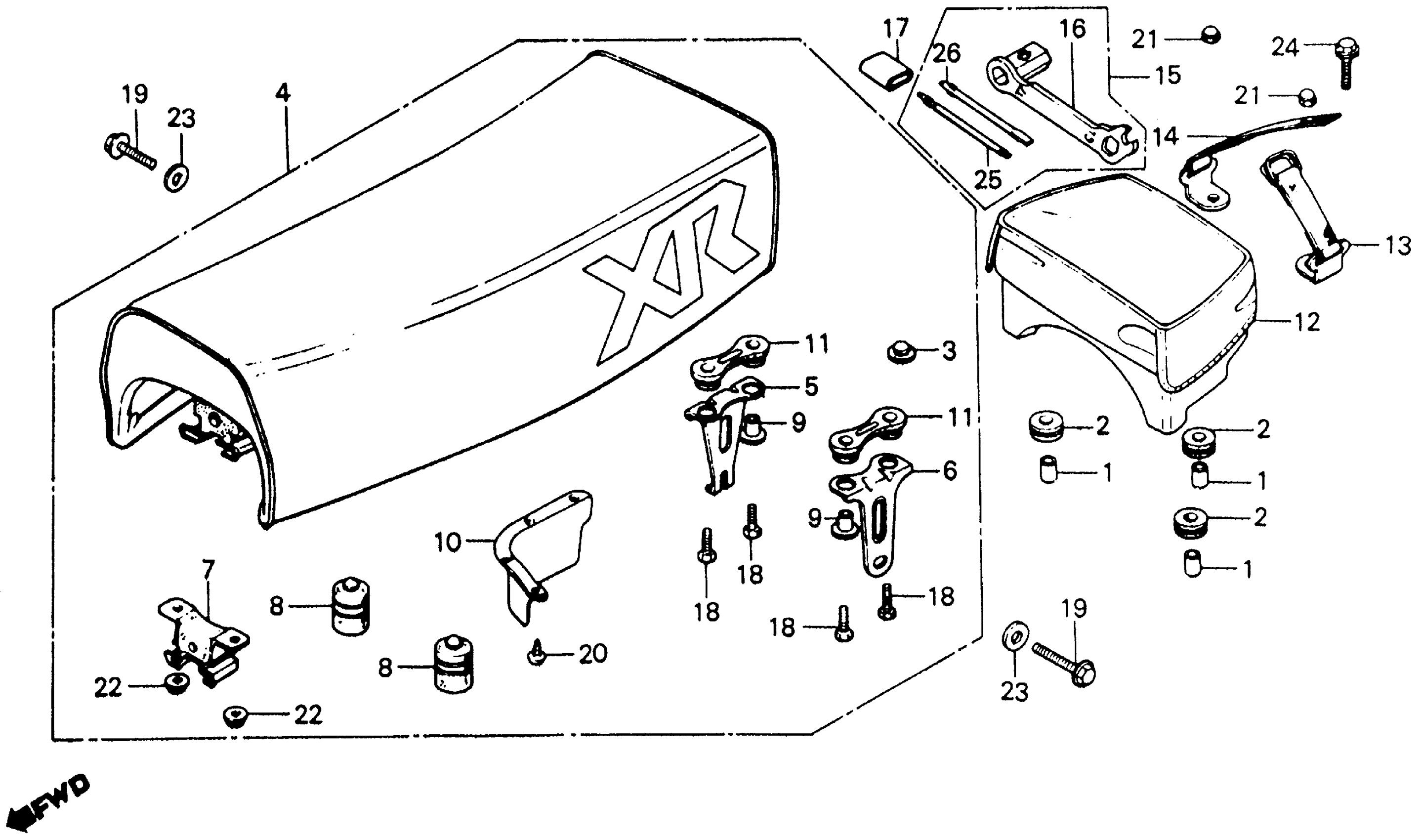

Honda XR200A (84) MOTORCYCLE, JPN, VIN# JH2ME020-EK500001 SEAT Diagram

COVER, DOOR SWITCH

SEAT This part replaces 77200-446-850.

STAY, R. RR. SEAT

STAY, L. RR. SEAT (NOT AVAILABLE)

RUBBER A, SEAT SETTING

RUBBER B, SEAT SETTING

COLLAR, SEAT SETTING

GUIDE, DUST (NOT AVAILABLE)

RUBBER, SEAT SETTING

TOOL SET (NOT AVAILABLE)

WRENCH, EYE (19MM) (NOT AVAILABLE)

PROTECTOR, EYE WRENCH (NOT AVAILABLE)

BOLT, HEX. (6X25) This part replaces 92000-06025.

BOLT, HEX. (6X25)

BOLT, FLANGE (8X20) This part replaces 95700-08020-00.

BOLT, FLANGE (8X20)

SCREW, TAPPING

NUT, FLANGE (6MM)

WASHER, PLAIN (8MM)

SCREWDRIVER 1, PHILLIPS (NO.2)

SCREWDRIVER 3, STRAIGHT SLOT (NO.2)
