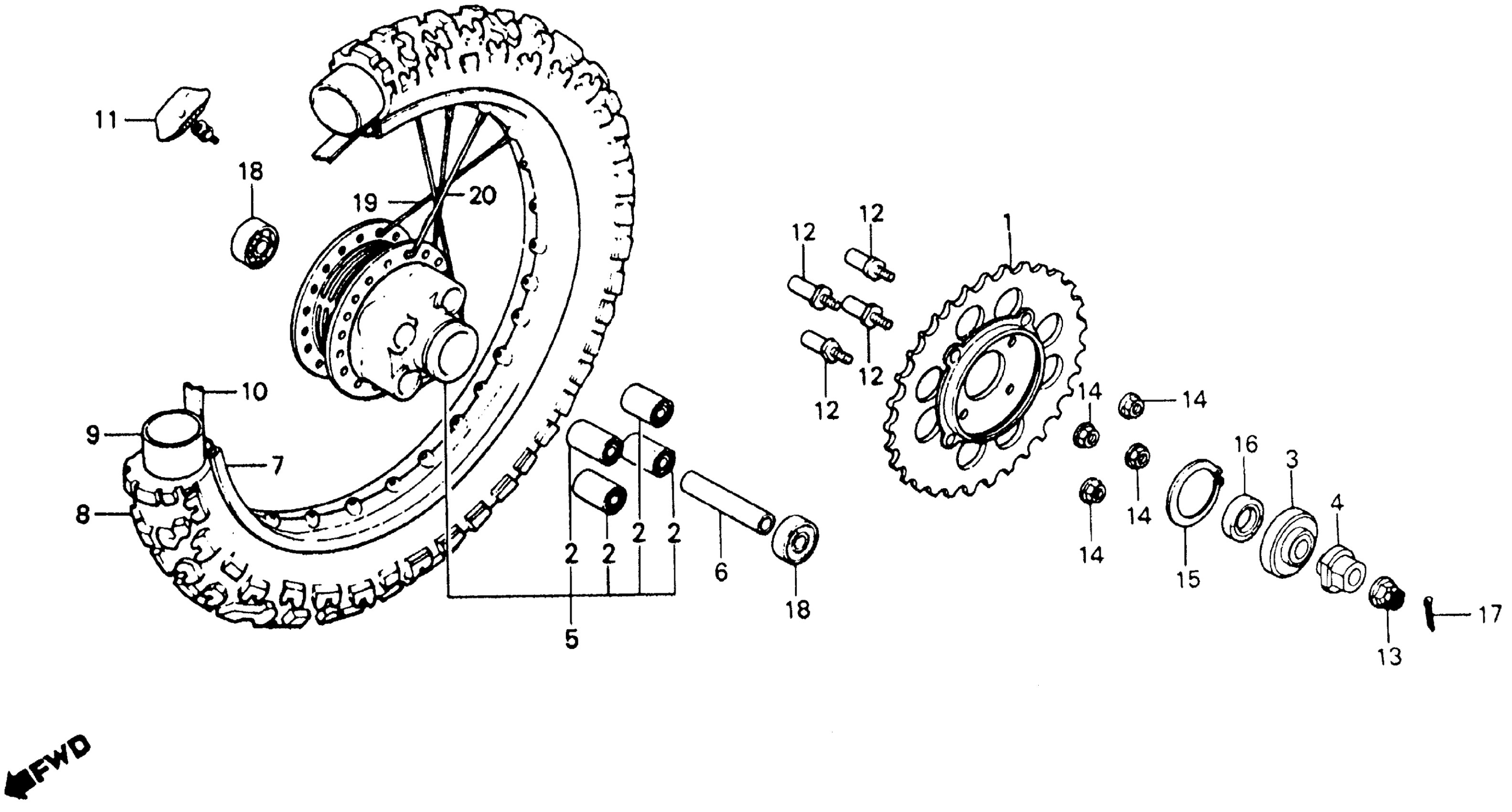

Honda XR200A (84) MOTORCYCLE, JPN, VIN# JH2ME020-EK500001 REAR WHEEL Diagram

#

Description
Price

1

SPROCKET, FINAL DRIVEN (50T) (NOT AVAILABLE)

41200-446-630

Unavailable

2

BUSH, RR. WHEEL DAMPER

41241-307-010

$15.06

3

COLLAR, RR. WHEEL SIDE

42304-437-000

Unavailable

4

COLLAR, RR. AXLE

42304-446-770

Unavailable

5

HUB, RR. WHEEL *NH105* (MAT BLACK)

42610-437-000ZA

Unavailable

6

COLLAR, RR. AXLE DISTANCE

42620-437-000

Unavailable

7

RIM, RR. WHEEL (NOT AVAILABLE)

42701-361-003

Unavailable

7

RIM, RR. WHEEL (NOT AVAILABLE) This part replaces 42701-446-631.

42701-361-003

Unavailable

8

TIRE, RR. (4.10-18) (INOUE)

42711-KA2-752

Unavailable

8

TIRE, RR. (4.10-18) (INOUE) This part replaces 42711-446-631.

42711-KA2-752

Unavailable

9

TUBE, TIRE (3.50-18) This part replaces 08400-44600.

42712-446-631

Unavailable

9

TUBE, TIRE (3.50-18) This part replaces 42712-287-003.

42712-446-631

Unavailable

9

TUBE, TIRE (3.50-18)

42712-446-631

Unavailable

10

FLAP, TIRE (1.85X18) (INOUE)

42713-446-631

Unavailable

11

STOPPER, BEAD (1.85) STOPPER, BEAD (1.85B)

42715-KA2-680

$32.27

11

STOPPER, BEAD (1.85) This part replaces 42715-444-000.

42715-KA2-680

$32.27

12

BOLT, DRIVEN SPROCKET FIXING

90128-382-670

$6.52

12

BOLT, DRIVEN SPROCKET FIXING This part replaces 90128-446-770.

90128-382-670

$6.52

13

NUT, AXLE (14MM)

90305-401-680

$11.65

14

NUT, FLANGE (10MM)

90308-382-670

$4.07

15

CIRCLIP (58MM)

90664-216-000

$5.55

16

OIL SEAL (28X42X7) (ARAI) This part replaces 91257-230-000.

91257-230-003

$11.31

16

OIL SEAL (28X42X7) (ARAI)

91257-230-003

$11.31

16

OIL SEAL (28X42X7) (ARAI) This part replaces 91257-230-005.

91257-230-003

$11.31

17

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

17

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

17

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

17

PIN, COTTER (3.0X45)

94201-30450

$1.49

17

PIN, COTTER (3.0X45) This part replaces 94201-30200.

94201-30450

$1.49

17

PIN, COTTER (3.0X45) This part replaces 94201-30280.

94201-30450

$1.49

18

BEARING, RADIAL BALL (6302UU) This part replaces 96140-63020-10.

96150-63020-10

$15.36

18

BEARING, RADIAL BALL (6302UU)

96150-63020-10

$15.36

19

SPOKE BS (8X170.0)

97506-69180-Q0

Unavailable

20

SPOKE BS (8X169.5)

97716-69179-Q0

$5.04
