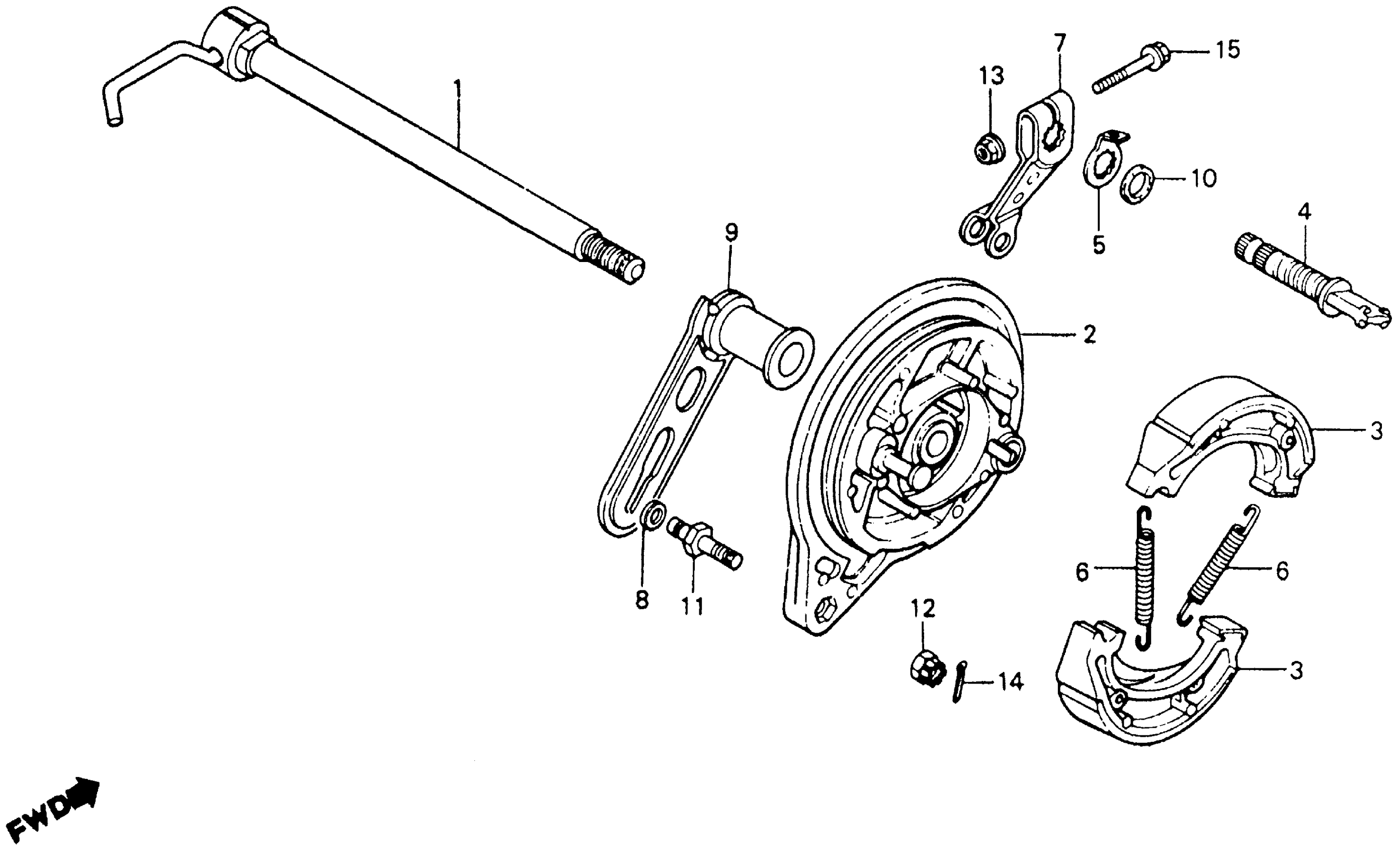

Honda XR200A (84) MOTORCYCLE, JPN, VIN# JH2ME020-EK500001 REAR BRAKE PANEL Diagram

#

Description
Price

NI

SHOE SET, BRAKE (ASK) This part replaces 06430-KT0-305.

06430-GBJ-J10

$29.23

NI

SHOE SET, BRAKE (ASK) This part replaces 06430-365-674.

06430-GBJ-J10

$29.23

NI

SHOE SET, BRAKE (ASK) This part replaces 431A2-365-672.

06430-GBJ-J10

$29.23

1

AXLE, RR. WHEEL (NOT AVAILABLE)

42310-446-770

Unavailable

2

PANEL, RR. BRAKE *NH105* (MAT BLACK)

43100-382-790ZA

Unavailable

3

SHOE SET, BRAKE (ASK) This part replaces 43120-365-671.

06430-GBJ-J10

$29.23

3

SHOE SET, BRAKE (ASK) This part replaces 43120-365-672.

06430-GBJ-J10

$29.23

4

CAM, RR. BRAKE

43141-400-010

$23.52

5

INDICATOR, RR. BRAKE (NOT AVAILABLE)

43145-121-710

Unavailable

6

SPRING, BRAKE SHOE

43151-110-000

$2.92

7

ARM, RR. BRAKE

43410-437-000

Unavailable

8

RUBBER, STOPPER ARM CUSHION (NOT AVAILABLE)

43434-429-000

Unavailable

9

STOPPER, BRAKE ARM (NOT AVAILABLE)

43435-446-770

Unavailable

10

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

11

BOLT, RR. BRAKE STOPPER (NOT AVAILABLE)

90127-446-770

Unavailable

12

NUT, CASTLE (10MM)

94012-10000-0S

Unavailable

13

NUT, FLANGE (6MM)

94050-06000

$1.49

14

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

14

PIN, COTTER (2.0X22)

94201-20220

$1.49

14

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

14

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

14

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

14

PIN, COTTER (2.0X35)

94201-20350

$1.49

14

PIN, COTTER (2.0X22)

94201-29220

$1.49

15

BOLT, FLANGE (6X35) This part replaces 95700-06035-00.

95701-06035-00

$1.80

15

BOLT, FLANGE (6X35)

95701-06035-00

$1.80
