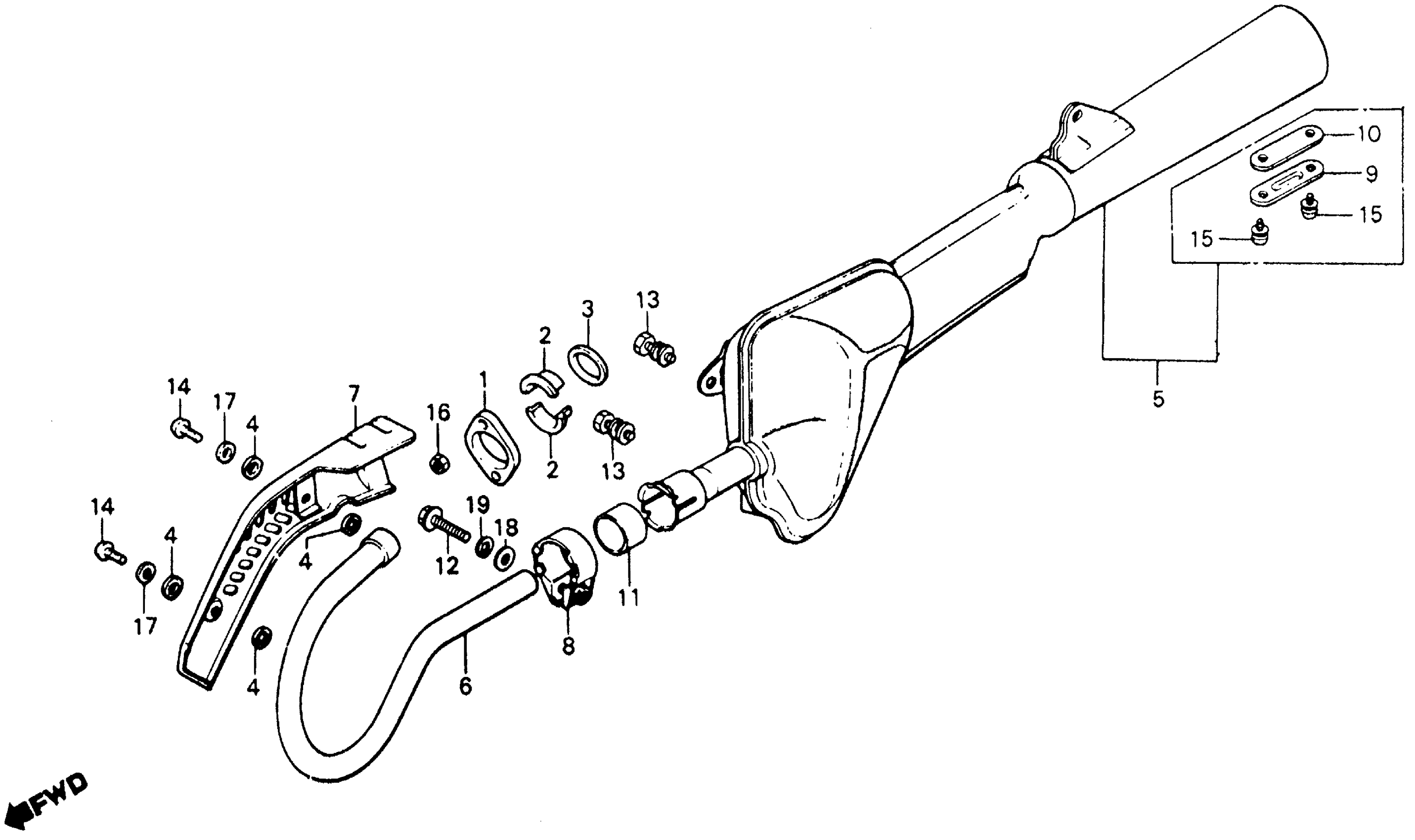

Honda XR200A (84) MOTORCYCLE, JPN, VIN# JH2ME020-EK500001 MUFFLER Diagram

#

Description
Price

1

JOINT, EX. PIPE

18231-355-000

$31.93

2

COLLAR, EX. PIPE JOINT

18233-437-000

$9.37

3

GASKET, EX. PIPE

18291-MN5-650

$3.77

3

GASKET, EX. PIPE This part replaces 18291-216-000.

18291-MN5-650

$3.77

4

GASKET, PROTECTOR

18292-167-890

$1.88

4

GASKET, PROTECTOR This part replaces 18292-329-000.

18292-167-890

$1.88

5

MUFFLER ASSY.

18300-446-850

Unavailable

6

PIPE, EX. (NOT AVAILABLE)

18320-446-010

Unavailable

7

PROTECTOR, EX. PIPE

18321-437-010

Unavailable

8

BAND, MUFFLER

18371-355-710

Unavailable

9

LID, MUFFLER

18373-446-010

Unavailable

10

GASKET, MUFFLER

18374-KR8-900

Unavailable

10

GASKET, MUFFLER This part replaces 18374-310-000.

18374-KR8-900

Unavailable

11

GASKET, MUFFLER

18391-KJ3-700

$27.56

11

GASKET, MUFFLER This part replaces 18391-KR9-000.

18391-KJ3-700

$27.56

11

GASKET, MUFFLER This part replaces 18391-437-000.

18391-KJ3-700

$27.56

12

BOLT, FLANGE (8X32) This part replaces 95700-08032-00.

95701-08032-00

$1.49

12

BOLT, FLANGE (8X32)

95701-08032-00

$1.49

13

BOLT-WASHER (8X16)

93413-08016-08

$1.49

13

BOLT-WASHER (8X16) This part replaces 93483-08016-08.

93413-08016-08

$1.49

14

SCREW, PAN (6X10)

93500-06010-0G

$1.49

15

SCREW-WASHER (6X12)

93891-06012-07

$1.49

16

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM)

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

17

WASHER, PLAIN (6MM)

94101-06700

$1.49

18

WASHER, PLAIN (8MM)

94101-08000

$1.49

19

WASHER, SPRING (8MM)

94111-08000

$1.49
