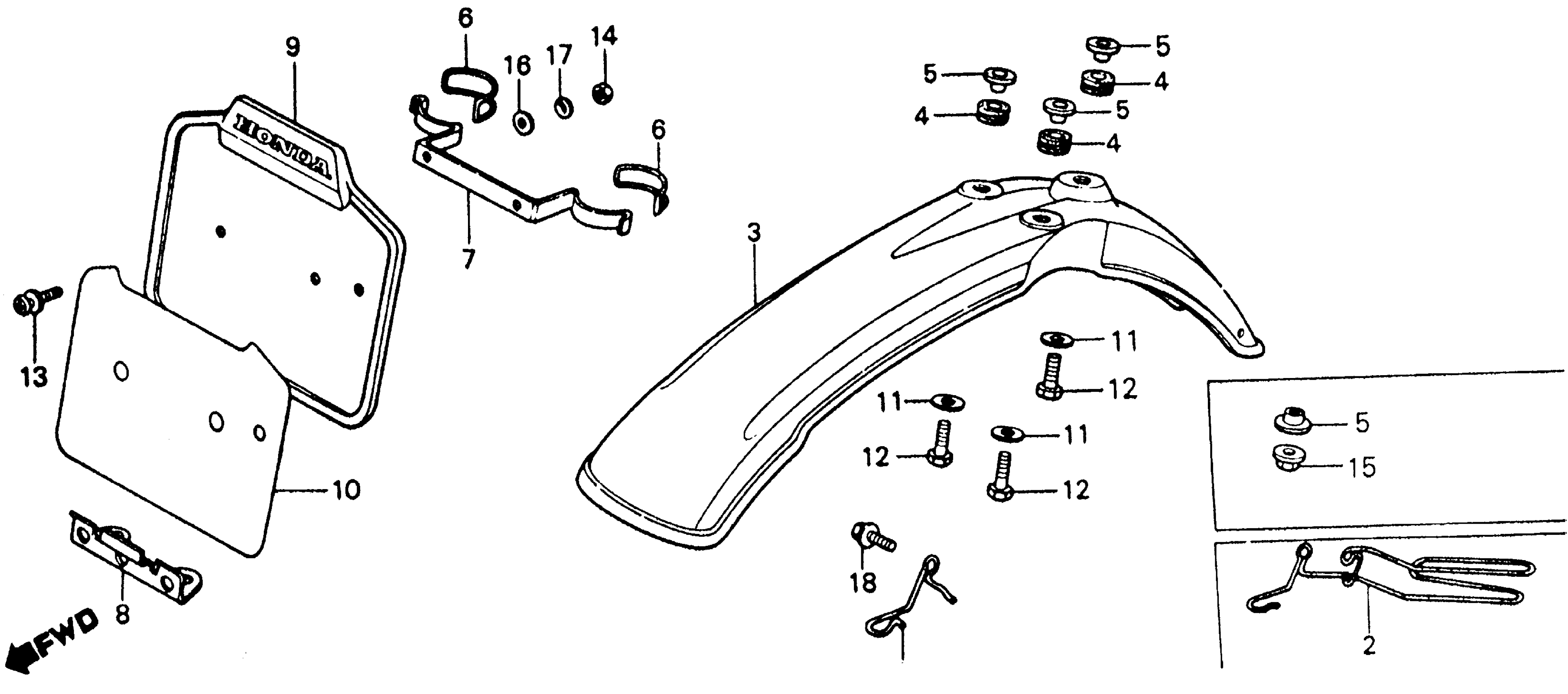

Honda XR200A (84) MOTORCYCLE, JPN, VIN# JH2ME020-EK500001 FRONT FENDER Diagram

#

Description
Price

1

CLAMP, SPEEDOMETER CABLE (NOT AVAILABLE)

44832-446-630

Unavailable

3

FENDER, FR. *R119* (FLASH RED)

61100-427-700ZH

Unavailable

4

RUBBER, FR. FENDER SETTING

61103-357-000

$3.37

5

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

5

COLLAR, RR. FENDER

61105-428-000

Unavailable

5

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.42

6

BAND F, NUMBER PLATE (NOT AVAILABLE)

61133-446-630

Unavailable

7

STAY, FR. NUMBER PLATE (NOT AVAILABLE)

64111-446-630

Unavailable

8

STAY, FR. NUMBER PLATE (LOWER) (NOT AVAILABLE)

64112-446-630

Unavailable

9

PLATE, FR. NUMBER *R119* (WOL) (FLASH RED) (NOT AVAILABLE)

64113-176-750ZB

Unavailable

10

SHEET, FR. NUMBER (NOT AVAILABLE)

64114-176-680

Unavailable

11

WASHER, SEAT SETTING

77302-124-000

$3.23

12

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

12

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

13

SCREW-WASHER (5X12)

93891-05012-00

$1.49

13

SCREW-WASHER (5X12) This part replaces 93891-05012-10.

93891-05012-00

$1.49

14

NUT, HEX. (5MM)

94002-05000-0S

$1.49

16

WASHER, PLAIN (5MM)

94101-05000

$1.49

17

WASHER, SPRING (5MM)

94111-05000

$1.49

18

BOLT, FLANGE (6X16) This part replaces 95700-06016-08.

95701-06016-08

$1.49

18

BOLT, FLANGE (6X16)

95701-06016-08

$1.49
