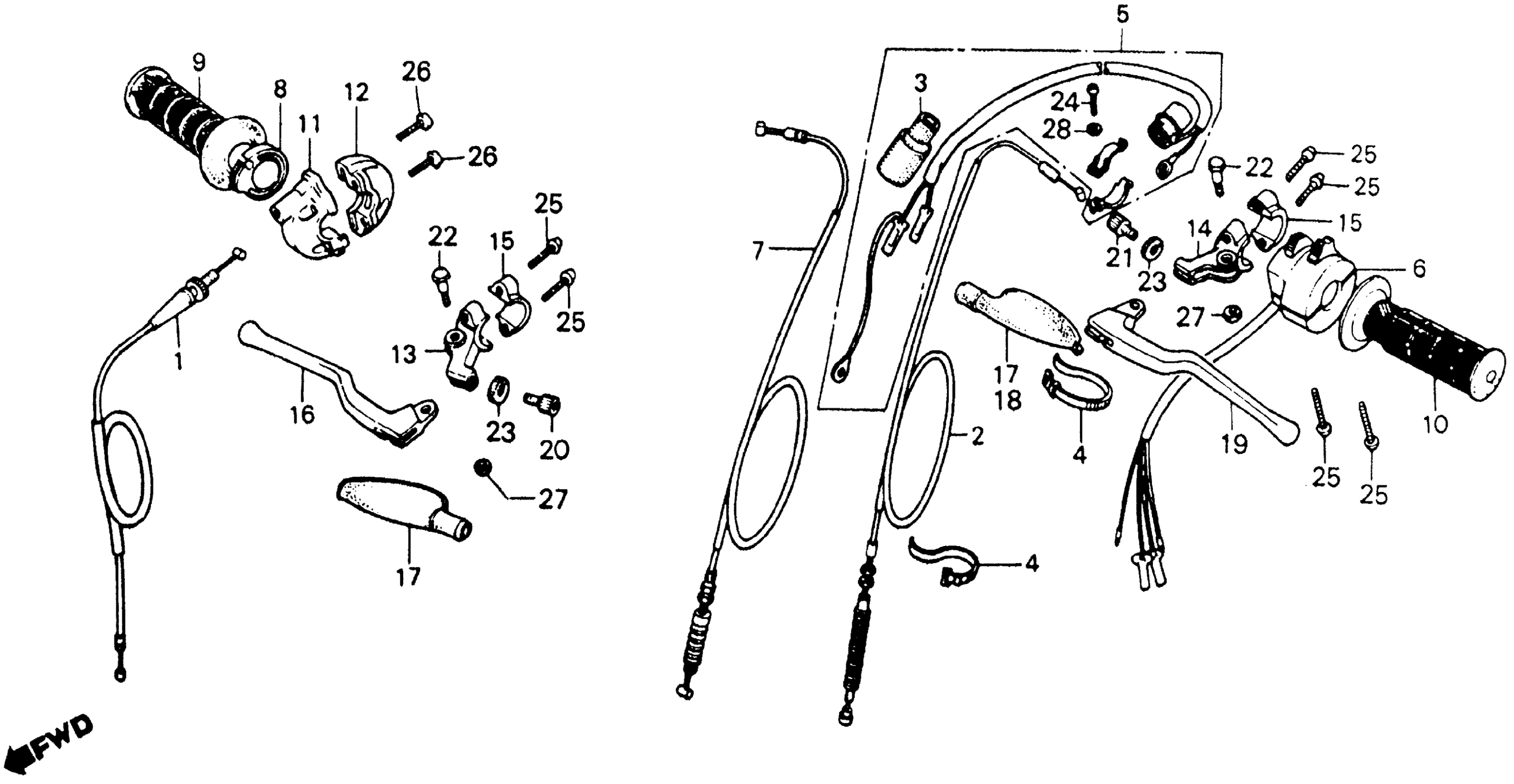

Honda XR200A (84) MOTORCYCLE, JPN, VIN# JH2ME020-EK500001 CONTROL LEVERS + SWITCHES + CABLES Diagram

#

Description
Price

1

CABLE, THROTTLE

17910-446-740

Unavailable

2

CABLE, CLUTCH This part replaces 22870-KB1-600.

22870-KF9-900

$32.54

2

CABLE, CLUTCH This part replaces 22870-KB1-970.

22870-KF9-900

$32.54

2

CABLE, CLUTCH This part replaces 22870-KB5-000.

22870-KF9-900

$32.54

2

CABLE, CLUTCH

22870-KF9-900

$32.54

2

CABLE, CLUTCH This part replaces 22870-383-830.

22870-KF9-900

$32.54

2

CABLE, CLUTCH This part replaces 22870-437-000.

22870-KF9-900

$32.54

2

CABLE, CLUTCH This part replaces 22870-965-000.

22870-KF9-900

$32.54

2

CABLE, CLUTCH This part replaces 22870-965-010.

22870-KF9-900

$32.54

3

COVER, WIRE HARNESS CONNECTOR

32108-046-750

$3.57

4

BAND B1, CABLE

32161-404-000

$2.16

5

SWITCH ASSY., ENGINE STOP (NOT AVAILABLE)

35130-446-740

Unavailable

7

CABLE, FR. BRAKE This part replaces 45450-KB9-000.

45450-KG1-920

Unavailable

7

CABLE, FR. BRAKE

45450-KG1-920

Unavailable

7

CABLE, FR. BRAKE This part replaces 45450-446-770.

45450-KG1-920

Unavailable

8

PIPE, THROTTLE GRIP

53141-446-000

Unavailable

9

GRIP, R. HANDLE This part replaces 53165-430-000.

53165-GFW-305

$10.87

10

GRIP, L. HANDLEBAR This part replaces 53166-430-000.

53166-459-910

$8.69

11

HOUSING, THROTTLE (UPPER) This part replaces 53167-KA2-000.

53167-KA2-010

$19.19

11

HOUSING, THROTTLE (UPPER)

53167-KA2-010

$19.19

12

HOUSING, THROTTLE (LOWER) This part replaces 53168-KA2-000.

53168-KA2-010

$17.92

12

HOUSING, THROTTLE (LOWER)

53168-KA2-010

$17.92

13

BRACKET, R. HANDLEBAR

53171-429-770

Unavailable

14

BRACKET, L. HANDLEBAR

53172-429-770

$30.43

15

HOLDER, LEVER BRACKET This part replaces 53173-KN5-670.

53173-376-000

$10.04

15

HOLDER, LEVER BRACKET

53173-376-000

$10.04

16

LEVER, R. HANDLEBAR

53175-GM2-010

Unavailable

16

LEVER, R. HANDLEBAR This part replaces 53175-429-770.

53175-GM2-010

Unavailable

17

COVER, R. HANDLEBAR This part replaces 53176-430-010.

53176-428-010

$9.23

18

COVER, L. HANDLEBAR

53177-430-000

$10.10

19

LEVER, L. HANDLEBAR

53178-KF0-000

$35.76

19

LEVER, L. HANDLEBAR This part replaces 53178-429-770.

53178-KF0-000

$35.76

20

BOLT, CABLE ADJUSTING

53192-268-000

$6.23

21

BOLT, CLUTCH CABLE ADJUSTING

53192-312-000

$7.56

22

BOLT, HANDLEBAR LEVER PIVOT

90113-429-770

$5.68

23

NUT, FIXING

90321-315-670

$6.97

23

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$6.97

24

SCREW, PAN (4X12)

93500-04012-0A

$0.82

24

SCREW, PAN (4X12) This part replaces 93500-04012-1A.

93500-04012-0A

$0.82

25

SCREW, PAN (5X16)

93500-05016-0A

$0.90

26

SCREW, PAN (5X16)

93500-05016-0A

$0.90

27

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.31

27

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.31

27

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.31

27

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.31

27

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.31

27

NUT, HEX. (6MM)

94001-06200-0S

$1.31

27

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.31

28

WASHER, SPRING (4MM)

94111-04000

$0.99
