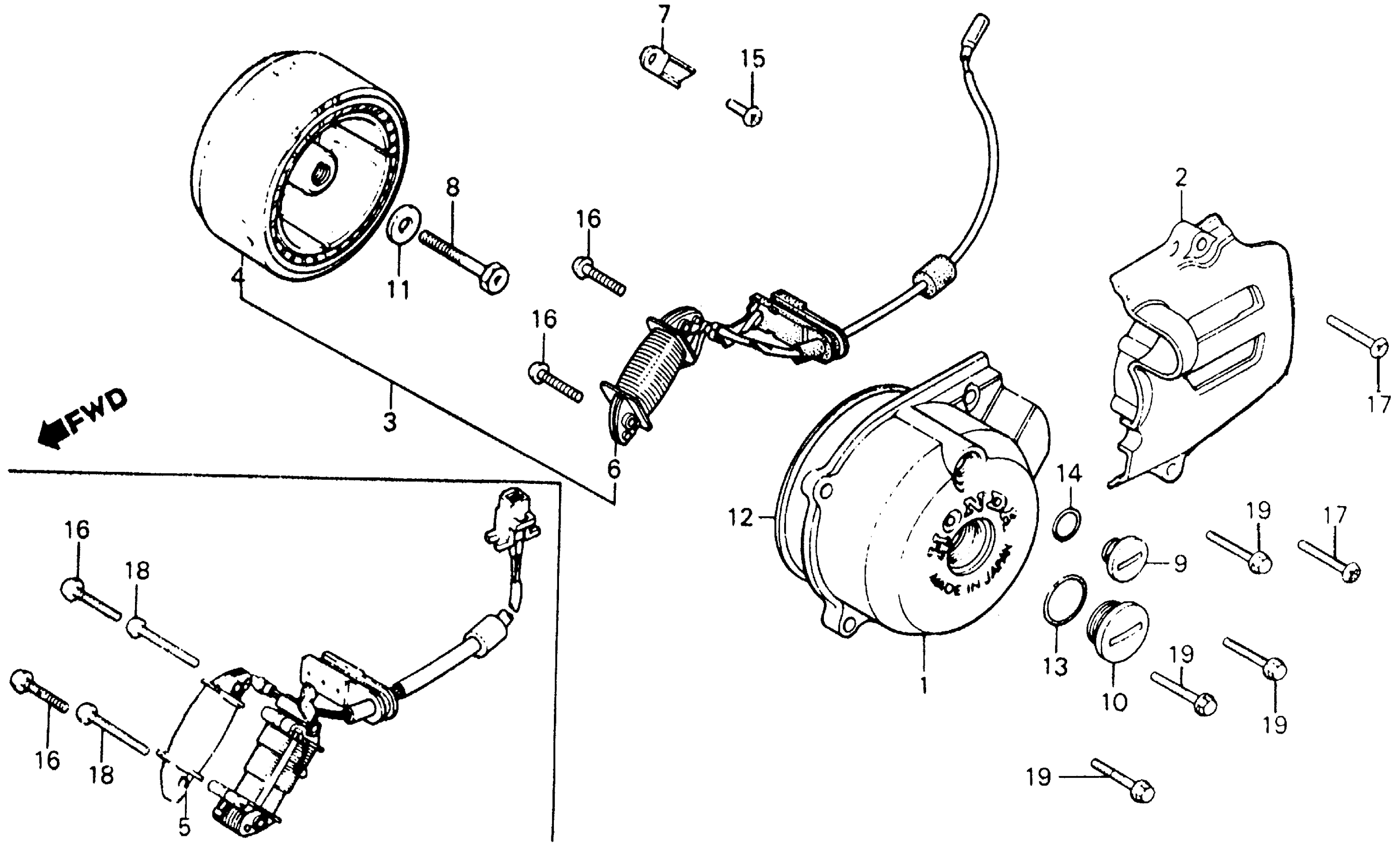

Honda XR200A (82) MOTORCYCLE, JPN, VIN# JH2ME020-CK300004 TO JH2ME020-CK303395 LEFT CRANKCASE COVER + ALTERNATOR Diagram

COVER, L. CRANKCASE

11341-427-000

Unavailable

COVER, L. RR. CRANKCASE (NOT AVAILABLE)

11361-446-771

Unavailable

ALTERNATOR ASSY. (DENSO) (NOT AVAILABLE)

31100-446-631

Unavailable

ROTOR (DENSO) (NOT AVAILABLE)

31110-446-631

Unavailable

STATOR (NOT AVAILABLE) This part replaces 31120-446-631.

31120-446-633

Unavailable

STATOR (NOT AVAILABLE) This part replaces 31120-446-632.

31120-446-633

Unavailable

STATOR (NOT AVAILABLE)

31120-446-633

Unavailable

CLAMP, WIRE HARNESS This part replaces 32976-107-000.

32976-107-010

$1.97

CLAMP, WIRE HARNESS

32976-107-010

$1.97

BOLT, ALTERNATOR ROTOR (NOT AVAILABLE)

90083-427-000

Unavailable

CAP, ALTERNATOR This part replaces 90084-428-000.

90084-471-000

Unavailable

CAP, ALTERNATOR

90084-471-000

Unavailable

CAP (30MM) This part replaces 90087-428-000.

90087-KF9-900

Unavailable

WASHER, ROTOR SETTING

90426-437-000

$6.57

GASKET, L. CRANKCASE COVER This part replaces 91302-107-010.

91302-355-000

$12.49

GASKET, L. CRANKCASE COVER

91302-355-000

$12.49

O-RING (27.4X2.4) (ARAI)

91302-567-003

$7.96

O-RING (27.4X2.4) (ARAI)

91304-MG7-003

$6.45

O-RING (13.8X2.5)

91303-MG7-003

$3.12

O-RING (13.8X2.5)

91303-377-000

$3.42

O-RING (13.8X2.5) This part replaces 91303-426-000.

91303-MG7-003

$3.12

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

SCREW, PAN (6X12)

93500-06012-0A

$1.49

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

SCREW, PAN (6X18) This part replaces 93500-06018.

93500-06018-0A

$1.49

SCREW, PAN (6X18)

93500-06018-0A

$1.49

SCREW, PAN (6X25) This part replaces 93500-06025.

93500-06025-0A

$1.49

BOLT, FLANGE (6X25)

96000-06025-00

$2.00

BOLT, FLANGE (6X25)

96001-06025-00

$2.00
