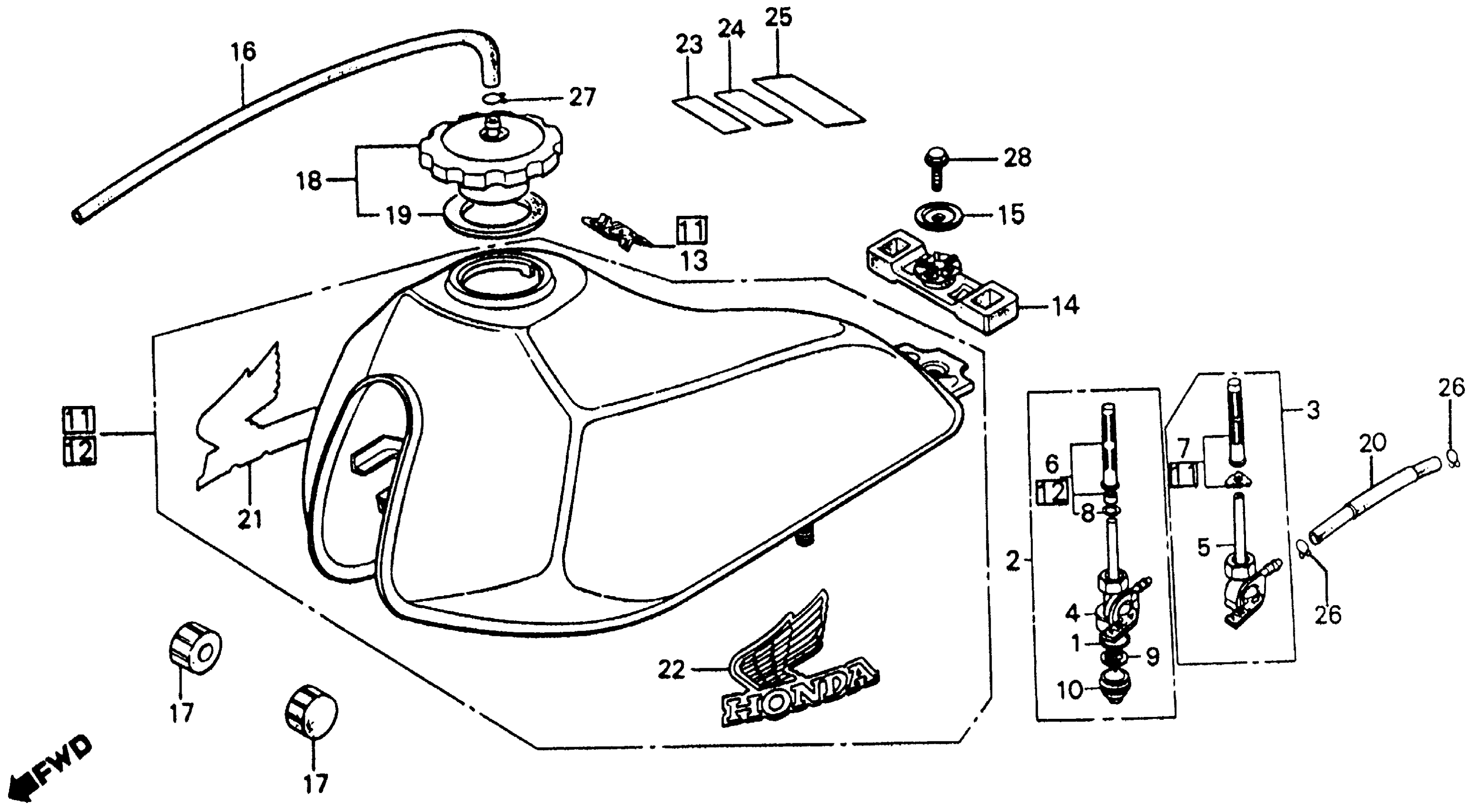

Honda XR200A (82) MOTORCYCLE, JPN, VIN# JH2ME020-CK300004 TO JH2ME020-CK303395 FUEL TANK Diagram

PETCOCK ASSY. This part replaces 16950-377-702.

16950-KCP-J01

$59.98

PETCOCK ASSY. This part replaces 16950-377-703.

16950-KCP-J01

$59.98

BODY, PETCOCK (HONDA KIKAKI) This part replaces 16951-377-702.

16951-377-703

Unavailable

BODY, PETCOCK (HONDA KIKAKI)

16951-377-703

Unavailable

SCREEN SET, FUEL STRAINER This part replaces 16952-377-701.

16953-155-305

Unavailable

SCREEN SET, FUEL STRAINER This part replaces 16953-155-015.

16953-155-305

Unavailable

SCREEN SET, FUEL STRAINER

16953-155-305

Unavailable

TANK SET, FUEL *R23* (TAHITIAN RED) (NOT AVAILABLE) This part replaces 175A1-446-771ZA.

175A1-446-772ZA

Unavailable

TANK SET, FUEL *R23* (TAHITIAN RED) (NOT AVAILABLE)

175A1-446-772ZA

Unavailable

MARK, FUEL TANK (A.M.) (NOT AVAILABLE)

17506-446-771

Unavailable

RUBBER, RR. FUEL TANK SETTING (NOT AVAILABLE)

17509-446-000

Unavailable

WASHER, RR. TANK

17515-437-000

Unavailable

TUBE, FUEL CAP BREATHER

17530-437-000

$8.92

RUBBER, FR. TANK

17611-437-000

$6.63

CAP, FUEL TANK

17620-435-730

Unavailable

GASKET, FUEL FILLER CAP

17632-435-730

$9.46

TUBE, FUEL This part replaces 17681-436-000.

17681-KE4-405

Unavailable

EMBLEM, R. FUEL TANK (A.M.)

87123-391-670

Unavailable

EMBLEM, L. FUEL TANK (A.M.)

87124-391-670

Unavailable

LABEL, USE CAUTION *NH1* (BLACK) (NOT AVAILABLE) This part replaces 87504-130-720ZB.

87504-130-720ZA

Unavailable

LABEL, OPERATOR WARNING *NH0* (CHAMPIONSHIP WHITE)

87510-147-670ZB

Unavailable

LABEL, DRIVE CAUTION *NH0* (TYPEW) (CHAMPIONSHIP WHITE)

87560-181-760ZB

Unavailable

CLIP, TUBE (B8)

95002-02080

$1.80

CLIP, TUBE (C9)

95002-50000

$1.49

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.67

BOLT, FLANGE (6X12)

95701-06012-08

$1.67
