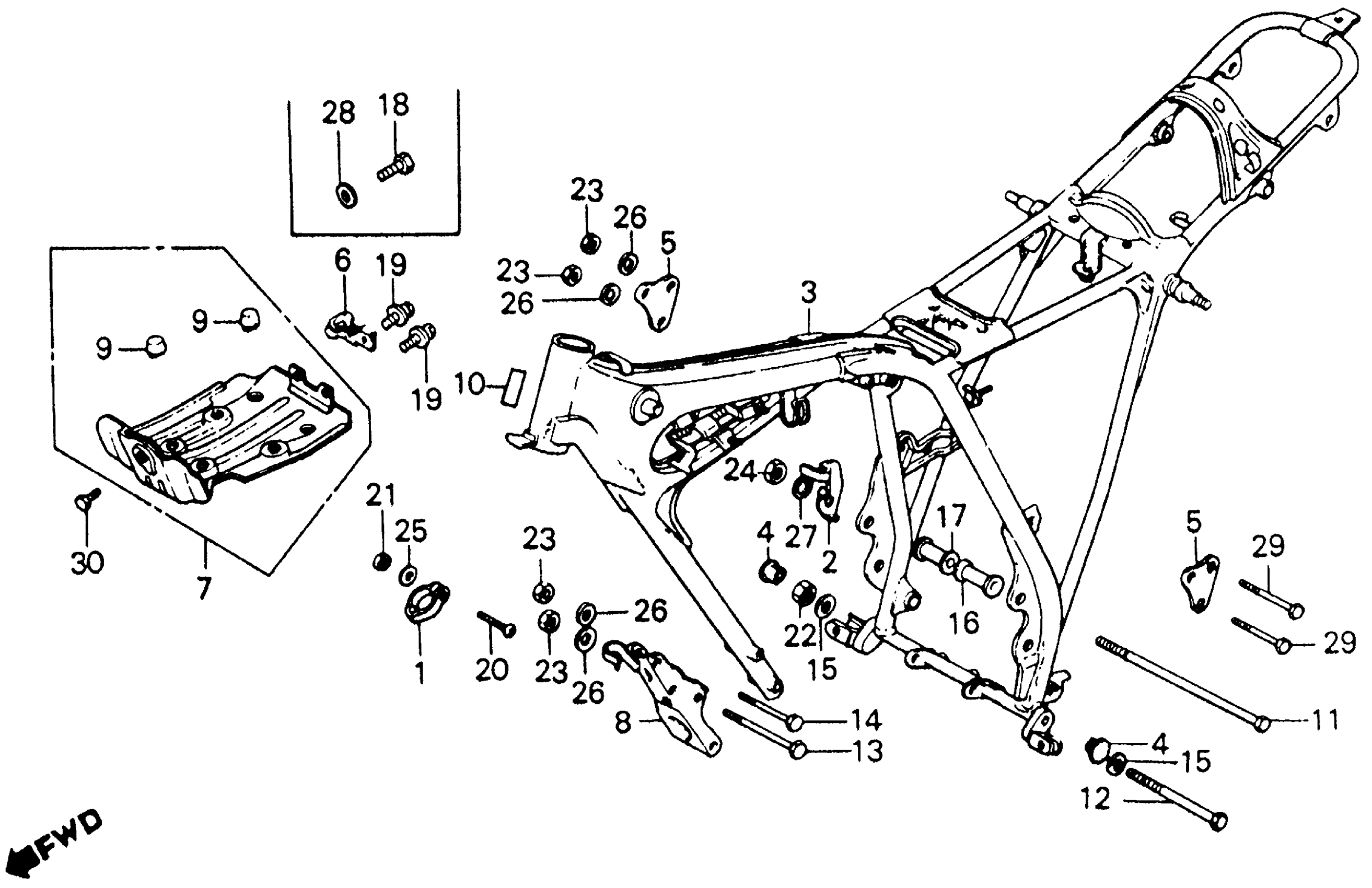

Honda XR200A (81) MOTORCYCLE, JPN, VIN# JH2ME020-BK200001 TO JH2ME020-BK202164 FRAME Diagram

CLAMP, CLUTCH CABLE (NOT AVAILABLE)

22878-355-000

Unavailable

CLIP, DECOMPRESSION CABLE

45469-427-000

Unavailable

FRAME *R23* (TAHITIAN RED) (NOT AVAILABLE)

50100-446-631ZA

Unavailable

PLUG, STEP BRACKET (NOT AVAILABLE)

90802-436-000

Unavailable

PLATE, ENGINE HANGER (UPPER) (NOT AVAILABLE)

50138-427-000

Unavailable

CLIP, DRAIN TUBE (NOT AVAILABLE)

50294-437-000

Unavailable

PLATE, SKID (NOT AVAILABLE) This part replaces 50355-427-770.

50355-427-771

Unavailable

PLATE, SKID (NOT AVAILABLE)

50355-427-771

Unavailable

PLATE, FR. ENGINE HANGER *R23* (TAHITIAN RED)

50351-437-000ZB

Unavailable

RUBBER A, STOPPER

50352-428-000

$2.75

BOLT, HEX. (10X220)

90135-437-000

$13.45

BOLT, HEX. (10X115)

90155-437-000

Unavailable

BOLT, HEX. (8X85)

90157-437-000

Unavailable

BOLT, HEX. (8X50)

90159-437-000

Unavailable

WASHER, PLAIN (10MM)

90401-437-000

$2.67

COLLAR, L. ENGINE DISTANCE *R23* (TAHITIAN RED) (NOT AVAILABLE)

90742-437-000ZB

Unavailable

BOLT-WASHER (6X16)

93405-06016-08

$1.74

BOLT-WASHER (6X16) This part replaces 93495-06016-08.

93405-06016-08

$1.74

SCREW, PAN (5X20)

93500-05020-0A

$1.49

SCREW, PAN (5X20) This part replaces 93500-05020-1A.

93500-05020-0A

$1.49

NUT, HEX. (5MM)

94001-05000-0S

$2.74

NUT, HEX. (10MM)

94001-10000-0S

$1.49

NUT, HEX. (8MM)

94030-08000

$1.49

NUT, HEX. (10MM)

94030-10000

$1.49

WASHER, PLAIN (5MM)

94101-05000

$1.49

WASHER, PLAIN (8MM)

94101-08000

$1.49

WASHER, PLAIN (10MM)

94101-10000

$1.49

BOLT, HEX. (8X65) (NOT AVAILABLE)

95300-08065-00

Unavailable

BOLT, HEX. (8X16) This part replaces 92000-08016-0A.

92101-08016-0A

$1.49

BOLT, HEX. (8X16)

92101-08016-0A

$1.49
