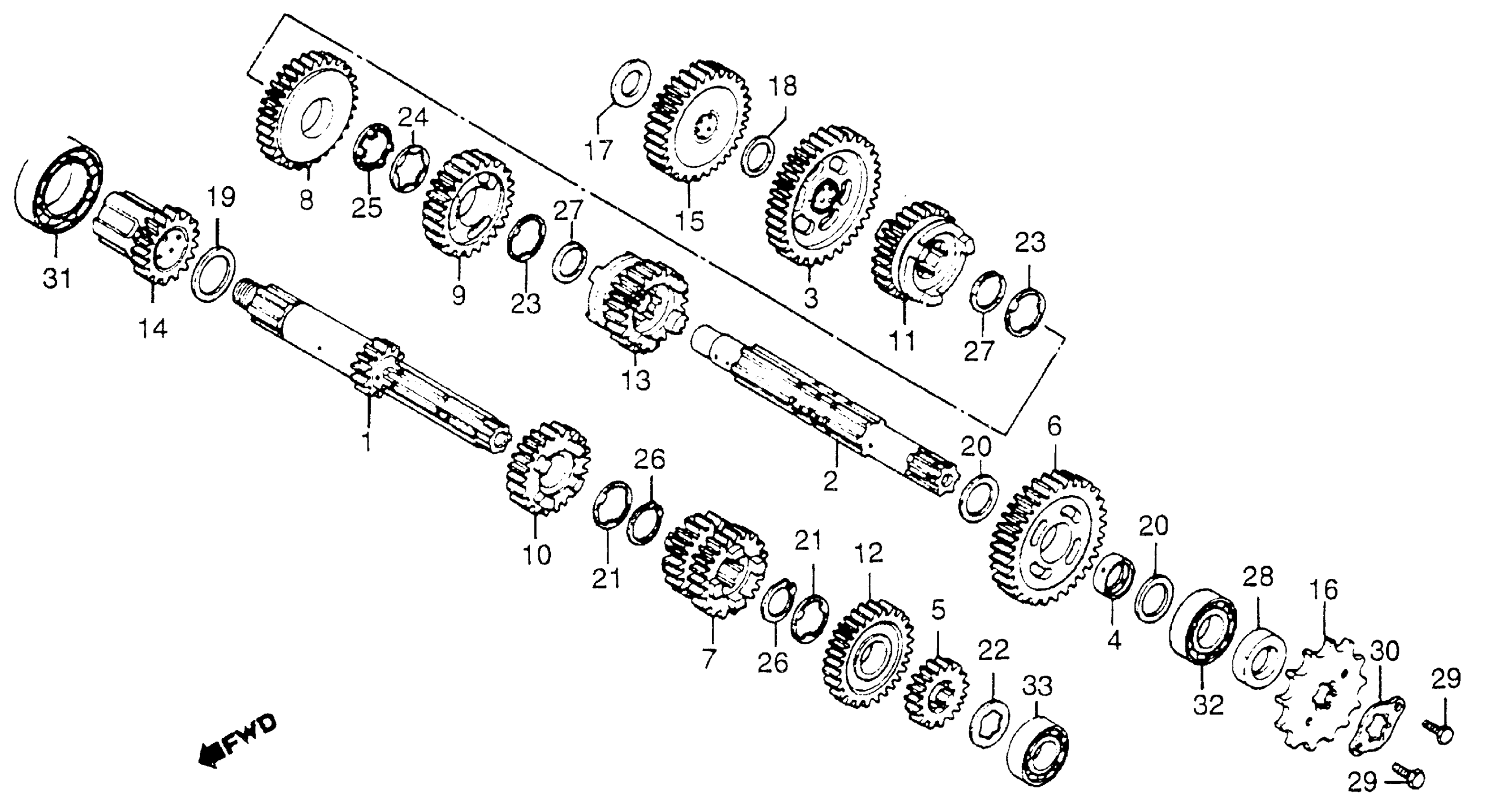

Honda XR185A (79) MOTORCYCLE, JPN, VIN# ME02-5000061 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION (12T) This part replaces 23211-446-000.

23211-446-010

Unavailable

1

MAINSHAFT, TRANSMISSION (12T)

23211-446-010

Unavailable

2

COUNTERSHAFT, TRANSMISSION

23221-446-000

Unavailable

3

GEAR, COUNTERSHAFT FIRST (37T) (NOT AVAILABLE)

23420-446-000

Unavailable

4

BUSH (20MM)

23431-437-000

$28.16

4

BUSHING | Use from Engine SN 5008421

23431-439-000

Unavailable

5

GEAR, MAINSHAFT SECOND (17T) (NOT AVAILABLE)

23441-446-000

Unavailable

6

GEAR, COUNTERSHAFT SECOND (33T)

23451-446-000

Unavailable

7

GEAR, MAINSHAFT THIRD & FOURTH (23T,20T) (NOT AVAILABLE)

23461-446-000

Unavailable

8

GEAR, COUNTERSHAFT THIRD (29T) (NOT AVAILABLE)

23471-446-000

Unavailable

9

GEAR, COUNTERSHAFT FOURTH (26T) (NOT AVAILABLE)

23491-446-000

Unavailable

10

GEAR, MAINSHAFT FIFTH (26T) (NOT AVAILABLE)

23501-446-000

Unavailable

11

GEAR, COUNTERSHAFT FIFTH (24T) (NOT AVAILABLE)

23511-446-000

Unavailable

12

GEAR, MAINSHAFT TOP (28T) (NOT AVAILABLE)

23512-446-000

Unavailable

13

GEAR, COUNTERSHAFT TOP (22T) (NOT AVAILABLE)

23513-446-000

Unavailable

14

GEAR, STARTER (19T)

23520-437-000

Unavailable

15

GEAR, IDLE STARTER (28T) (NOT AVAILABLE) | Use up to Engine SN 5008420 This part replaces 23530-437-000.

23530-437-305

Unavailable

15

GEAR, IDLE STARTER (28T) (NOT AVAILABLE) | Use up to Engine SN 5008420

23530-437-305

Unavailable

15

GEAR ONLY, IDLE STARTER (28T) | Use from Engine SN 5008421

23531-437-310

Unavailable

16

SPROCKET, DRIVE (15T)

23801-KC6-000

Unavailable

16

SPROCKET, DRIVE (15T) This part replaces 23801-446-000.

23801-KC6-000

Unavailable

17

WASHER, THRUST (15MM)

90451-365-000

$3.08

18

WASHER, THRUST (16.5MM)

90452-437-000

$3.40

19

WASHER A, THRUST (20MM)

90453-107-000

$2.25

20

WASHER, THRUST (20MM)

90454-107-000

$1.80

21

WASHER, SPLINE (17MM)

90461-115-000

$2.66

22

WASHER, SPECIAL SPLINE (17MM) (NOT AVAILABLE)

90462-437-000

Unavailable

23

WASHER, SPLINE (22MM)

90463-437-000

$3.49

24

WASHER, COUNTERSHAFT THIRD SPLINE

90464-360-000

$4.87

25

WASHER, LOCK

90465-360-000

$6.74

26

CIRCLIP (OUTER) (17MM)

90601-001-000

$1.49

27

CIRCLIP (OUTER) (22MM)

90601-437-000

$3.20

28

OIL SEAL (20X34X6) (NOK) This part replaces 91201-446-003.

91201-446-004

$6.78

28

OIL SEAL (20X34X6) (NOK)

91201-446-004

$6.78

29

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

29

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

30

PLATE B, FIXING

95014-92100

$1.49

31

BEARING, RADIAL BALL (6006)

96100-60060-00

$13.13

32

BEARING, RADIAL BALL (6204)

96100-62040-00

$12.22

33

BEARING, RADIAL BALL (6202U)

96140-62020-10

$10.85
