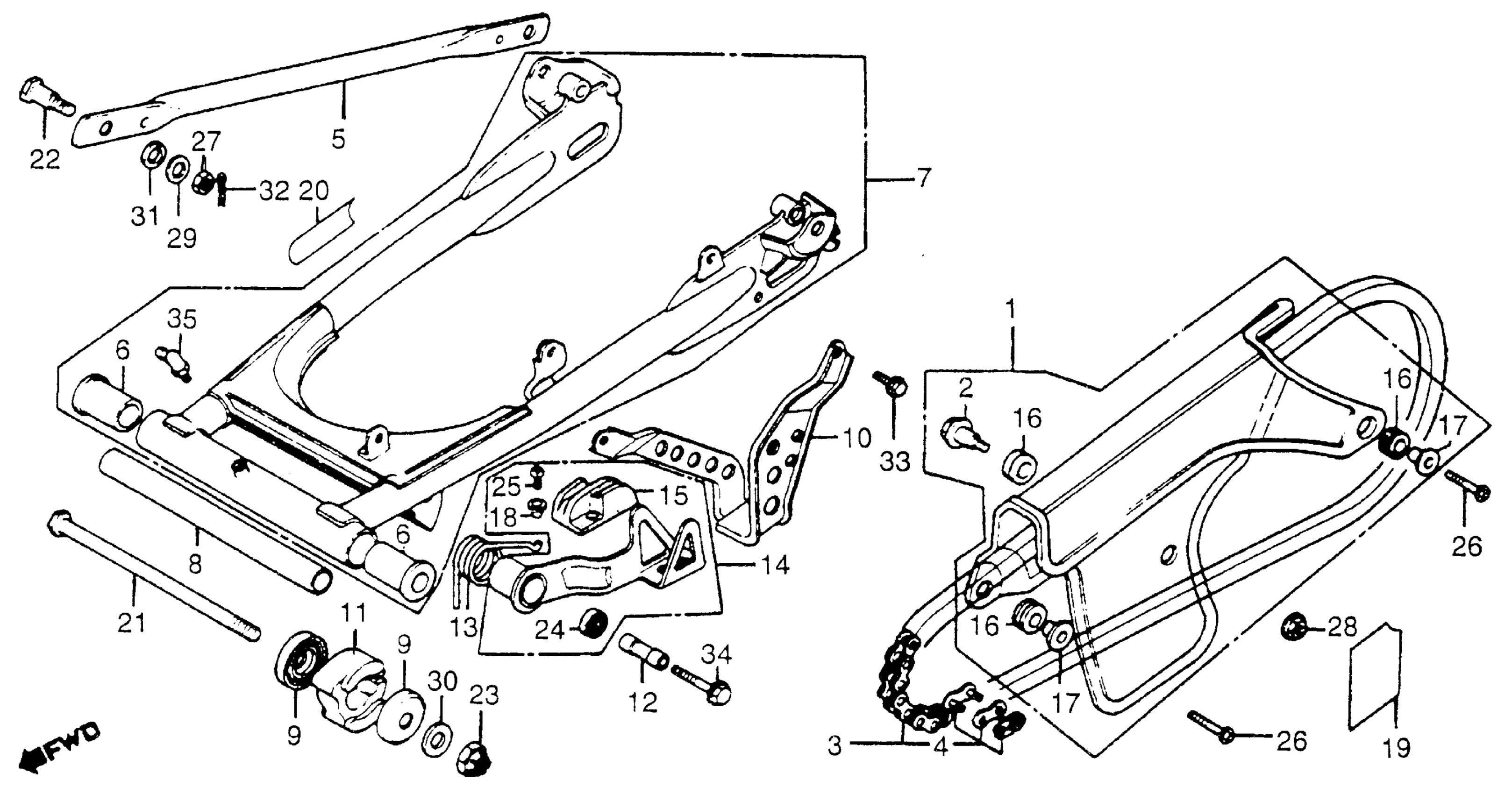

Honda XR185A (79) MOTORCYCLE, JPN, VIN# ME02-5000061 SWINGARM + CHAIN CASE Diagram

#

Description
Price

1

GUARD, DRIVE CHAIN

40510-446-000

Unavailable

2

BOLT, CHAIN GUARD

40512-437-000

Unavailable

3

CHAIN, DRIVE (DID428DSM-126L) (DAIDO) (NOT AVAILABLE)

40530-446-003

Unavailable

3

CHAIN, DRIVE (DID428DSM-124L) (DAIDO) (NOT AVAILABLE) | (Optional).

40530-446-811

Unavailable

4

MASTER LINK

40531-237-680

$4.15

4

MASTER LINK (DAIDO) This part replaces 40531-355-003.

40531-355-013

$4.15

4

MASTER LINK (DAIDO)

40531-355-013

$4.15

4

MASTER LINK This part replaces 40531-360-701.

40533-943-003

$4.56

4

MASTER LINK This part replaces 40531-399-003.

40533-943-003

$4.56

4

MASTER LINK This part replaces 40531-427-003.

40533-943-003

$4.56

4

MASTER LINK

40533-943-003

$4.56

5

ARM, RR. BRAKE STOPPER

43431-437-000

Unavailable

6

BUSH, PIVOT THRUST

52109-360-310

$41.11

7

SWINGARM ASSY., RR. *R23* (TAHITIAN RED)

52110-446-000ZA

Unavailable

8

COLLAR, SWINGARM

52141-437-010

Unavailable

9

CAP, SWINGARM DUST SEAL (NOK) This part replaces 52144-360-000.

52144-360-005

$11.80

9

CAP, SWINGARM DUST SEAL (NOK) This part replaces 52144-360-003.

52144-360-005

$11.80

9

CAP, SWINGARM DUST SEAL (NOK)

52144-360-005

$11.80

10

GUARD, CHAIN *R23* (TAHITIAN RED) (NOT AVAILABLE)

52156-446-000ZA

Unavailable

11

SLIDER, CHAIN

52170-437-000

$21.13

12

COLLAR, CHAIN TENSIONER This part replaces 52171-434-010.

52171-434-020

Unavailable

12

COLLAR, CHAIN TENSIONER

52171-434-020

Unavailable

13

SPRING, CHAIN TENSIONER

52174-434-000

Unavailable

14

TENSIONER ASSY., CHAIN *R23* (TAHITIAN RED) (NOT AVAILABLE)

52175-446-000ZA

Unavailable

15

SLIPPER, TENSIONER

52178-434-000

Unavailable

16

RUBBER, FR. FENDER SETTING

61103-357-000

$3.37

17

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

17

COLLAR, RR. FENDER

61105-428-000

Unavailable

18

COLLAR, HEADLIGHT SETTING

61304-292-000

$3.47

19

LABEL, DRIVE CHAIN CHECK (NOT AVAILABLE)

87133-446-300

Unavailable

20

LABEL, MUFFLER CAUTION

87504-028-670

$2.92

21

BOLT, SWINGARM PIVOT

90121-KF9-900

Unavailable

21

BOLT, SWINGARM PIVOT This part replaces 90121-437-000.

90121-KF9-900

Unavailable

22

BOLT, RR. BRAKE STOPPER ARM (NOT AVAILABLE)

90133-331-770

Unavailable

23

NUT, SELF-LOCK (12MM)

90353-045-000

$5.99

24

OIL SEAL (14X20X3)

91201-434-003

$4.26

24

OIL SEAL (14X20X3.2) This part replaces 91201-434-005.

91201-434-003

$4.26

25

SCREW, PAN (5X10)

93500-05010-0A

$1.49

26

SCREW, PAN (6X22) This part replaces 93500-06022.

93500-06022-0A

$1.49

26

SCREW, PAN (6X22)

93500-06022-0A

$1.49

27

NUT, HEX. (8MM)

94001-08000-0S

$1.49

28

NUT, FLANGE (6MM)

94050-06000

$1.49

29

WASHER, PLAIN (8MM)

94101-08000

$1.49

30

WASHER, PLAIN (12MM)

94101-12000

$1.49

31

WASHER, SPRING (8MM)

94111-10000

$1.49

32

PIN, COTTER (2.0X15)

94201-20150

$1.49

33

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.67

33

BOLT, FLANGE (6X14) | Use from Frame SN 5007995 This part replaces 95700-06014-08.

95701-06014-08

$1.55

33

BOLT, FLANGE (6X16) | Use up to Frame SN 5007994 This part replaces 95700-06016-08.

95701-06016-08

$1.49

33

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

33

BOLT, FLANGE (6X14) | Use from Frame SN 5007995

95701-06014-08

$1.55

33

BOLT, FLANGE (6X16) | Use up to Frame SN 5007994

95701-06016-08

$1.49

33

BOLT, FLANGE (6X16) | Use up to Frame SN 5007994 This part replaces 95900-06016-08.

95701-06016-08

$1.49

34

BOLT, FLANGE (8X45) This part replaces 95700-08045-00.

95701-08045-00

$1.49

34

BOLT, FLANGE (8X45)

95701-08045-00

$1.49

35

FITTING, GREASE (C.76)

96201-60000

$2.87
