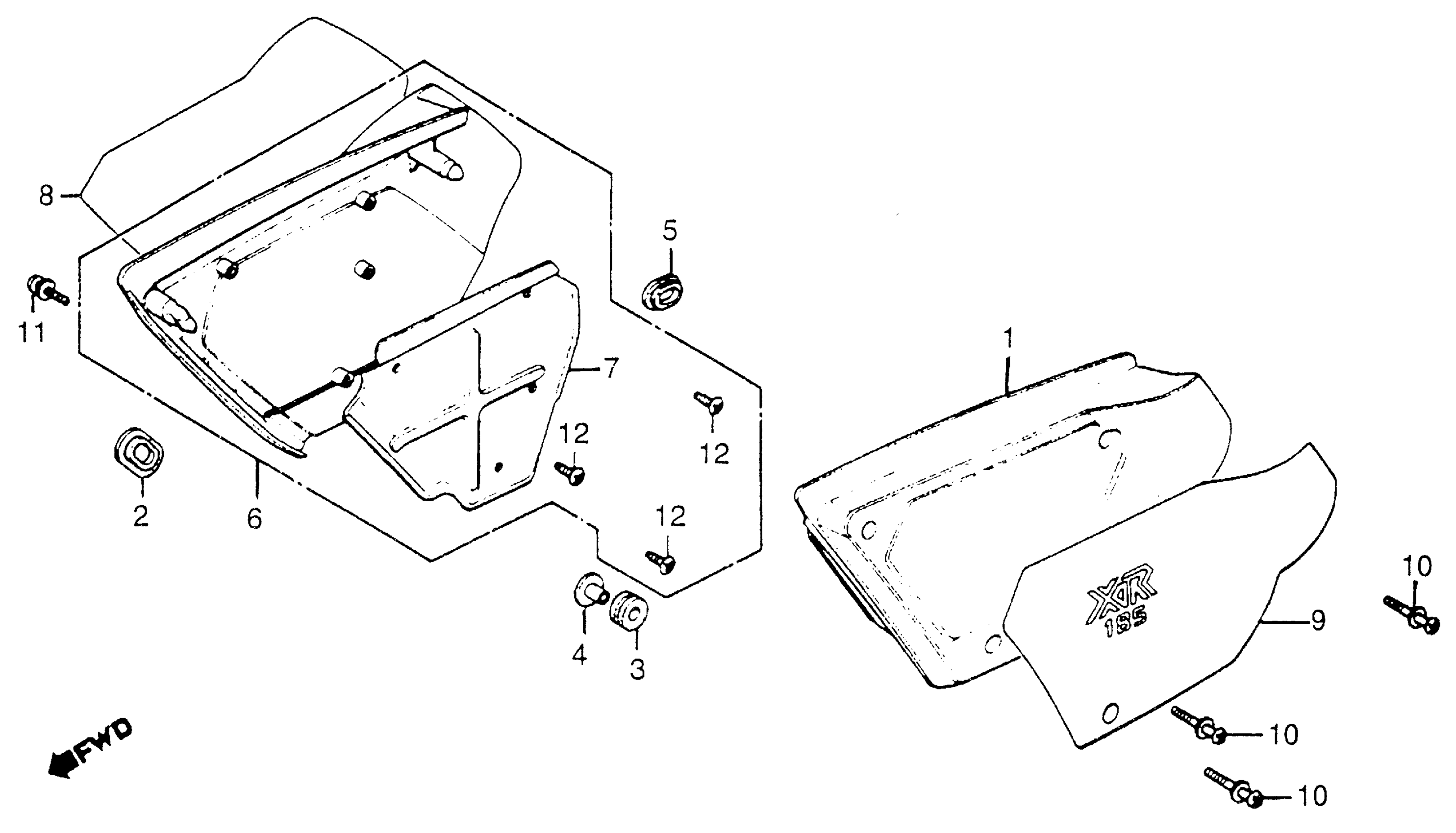

Honda XR185A (79) MOTORCYCLE, JPN, VIN# ME02-5000061 SIDE COVER Diagram

#

Description
Price

1

COVER, AIR CLEANER HOUSING *R23* (TAHITIAN RED) (NOT AVAILABLE)

17220-437-000ZB

Unavailable

2

GROMMET A, AIR CLEANER HOUSING

17247-303-000

$8.13

3

RUBBER, FR. FENDER SETTING

61103-357-000

$3.37

4

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

4

COLLAR, RR. FENDER

61105-428-000

Unavailable

5

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

6

COVER, R. SIDE *R23* (TAHITIAN RED) (NOT AVAILABLE) This part replaces 83640-446-000ZA.

83640-446-771ZA

Unavailable

6

COVER, R. SIDE *R23* (TAHITIAN RED) (NOT AVAILABLE) This part replaces 83640-446-770ZA.

83640-446-771ZA

Unavailable

6

COVER, R. SIDE *R23* (TAHITIAN RED) (NOT AVAILABLE)

83640-446-771ZA

Unavailable

7

PROTECTOR, SIDE COVER (NOT AVAILABLE)

83642-446-300

Unavailable

8

EMBLEM, R. SIDE COVER (NOT AVAILABLE)

87127-446-300

Unavailable

9

EMBLEM, AIR CLEANER HOUSING COVER (NOT AVAILABLE)

87129-446-300

Unavailable

10

SCREW-WASHER (5X32)

93891-05032-00

$1.49

11

SCREW-WASHER (6X25) (NOT AVAILABLE)

93892-06025-00

Unavailable

12

SCREW, TAPPING (4X8)

93903-34120

$1.49
