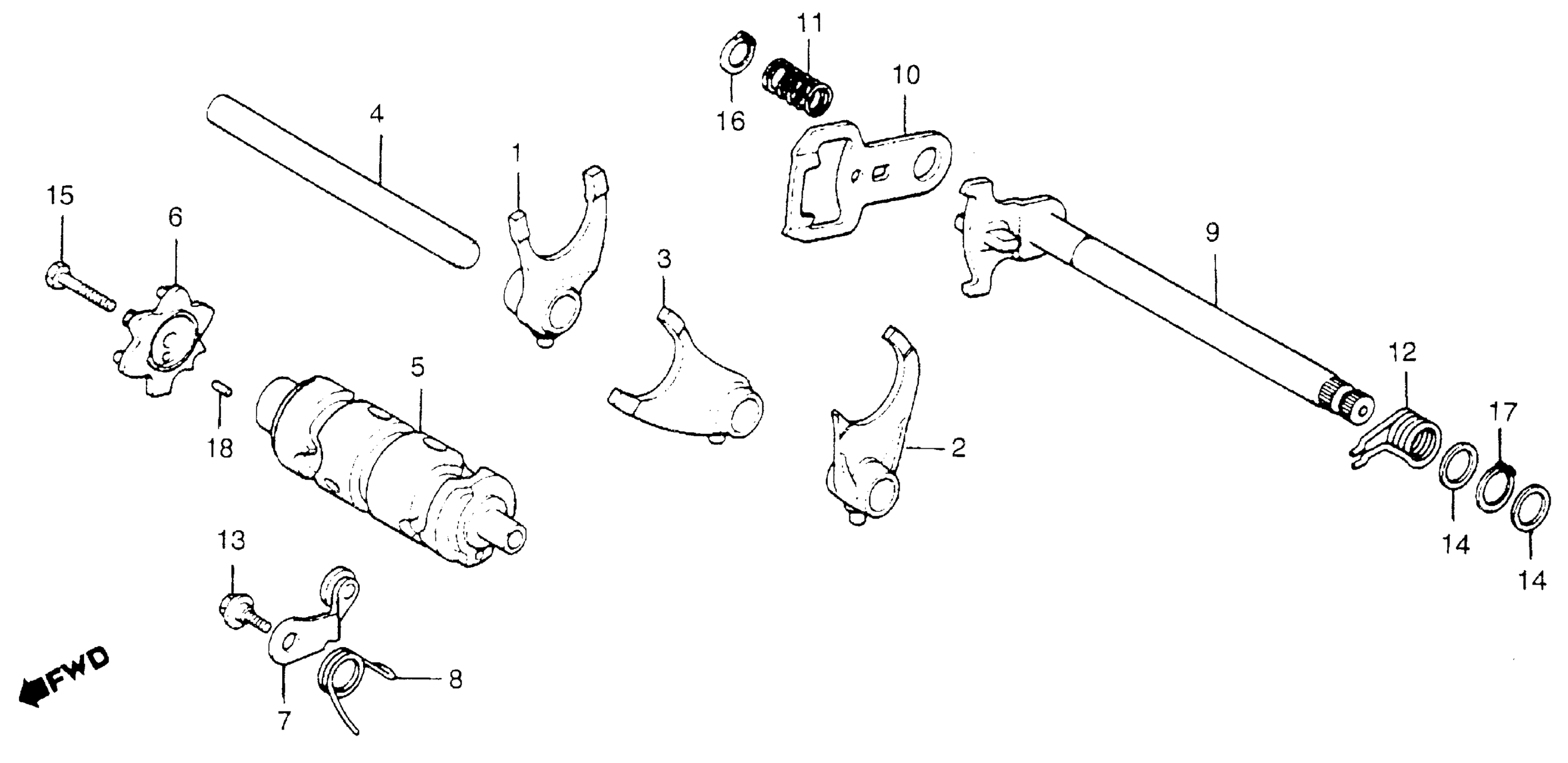

Honda XR185A (79) MOTORCYCLE, JPN, VIN# ME02-5000061 SHIFT DRUM + SHIFT FORK Diagram

#

Description
Price

1

FORK, R. GEARSHIFT This part replaces 24211-446-000.

24211-KR9-000

Unavailable

2

FORK, L. GEARSHIFT This part replaces 24221-446-000.

24221-446-650

Unavailable

2

FORK, L. GEARSHIFT

24221-446-650

Unavailable

3

FORK, CENTER GEARSHIFT

24231-446-000

Unavailable

4

SHAFT, GEARSHIFT FORK GUIDE

24241-399-000

$16.72

5

DRUM, GEARSHIFT This part replaces 24301-437-000.

24301-446-650

Unavailable

5

DRUM, GEARSHIFT

24301-446-650

Unavailable

6

CAM, GEARSHIFT This part replaces 24411-446-000.

24411-446-650

$46.35

6

CAM, GEARSHIFT This part replaces 24411-446-010.

24411-446-650

$46.35

6

CAM, GEARSHIFT

24411-446-650

$46.35

7

STOPPER, GEARSHIFT DRUM

24430-437-000

$17.25

8

SPRING, SHIFT DRUM STOPPER

24435-437-000

Unavailable

9

SPINDLE, GEARSHIFT (NOT AVAILABLE)

24610-437-000

Unavailable

10

PLATE, GEARSHIFT

24621-437-000

Unavailable

11

SPRING, GEARSHIFT PLATE

24631-107-000

$2.92

12

SPRING, GEARSHIFT RETURN

24651-437-000

$8.55

13

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT This part replaces 90023-041-000.

90023-041-010

$2.25

13

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT

90023-041-010

$2.25

14

WASHER, THRUST (14MM)

90451-001-000

$3.67

15

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

15

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

16

CIRCLIP (OUTER) (12MM)

94510-12000

$1.78

17

CIRCLIP (OUTER) (14MM)

94510-14000

$1.49

18

ROLLER (4X10)

96220-40100

$1.49
