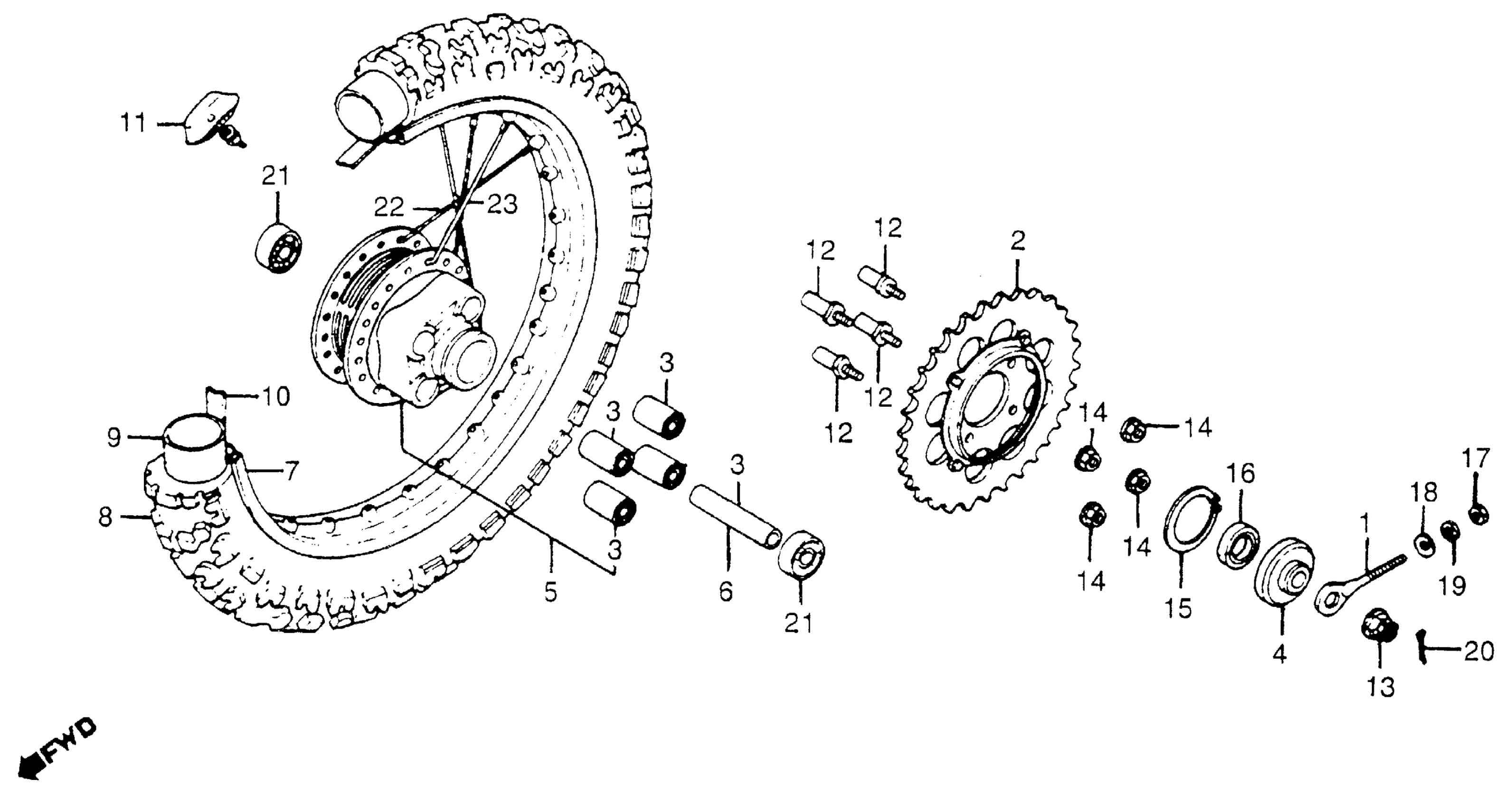

Honda XR185A (79) MOTORCYCLE, JPN, VIN# ME02-5000061 REAR WHEEL Diagram

#

Description
Price

1

ADJUSTER C, R. CHAIN This part replaces 40543-437-000.

95014-12100

$5.54

1

ADJUSTER C, R. CHAIN

95014-12100

$5.54

2

SPROCKET This part replaces 41200-446-000.

41200-KB2-000

Unavailable

2

SPROCKET, FINAL DRIVEN (56T) (NOT AVAILABLE) | (Optional).

41200-446-810

Unavailable

2

SPROCKET, FINAL DRIVEN (60T) (NOT AVAILABLE) | (Optional).

41200-446-820

Unavailable

3

BUSH, RR. WHEEL DAMPER

41241-307-010

$15.06

4

COLLAR, RR. WHEEL SIDE

42304-437-000

Unavailable

5

HUB, RR. WHEEL *NH105* (MAT BLACK)

42610-437-000ZA

Unavailable

6

COLLAR, RR. AXLE DISTANCE

42620-437-000

Unavailable

7

RIM, RR. WHEEL (1.85X18) (DAIDO) (NOT AVAILABLE)

42701-446-003

Unavailable

8

TIRE, RR. (4.10-18) (BS) (NOT AVAILABLE)

42711-446-003

Unavailable

9

TUBE, TIRE This part replaces 0Y400-41300.

42712-KT1-673

$37.60

9

TUBE, TIRE This part replaces 08400-30000.

42712-KT1-673

$37.60

9

TUBE, TIRE This part replaces 08400-41300.

42712-KT1-673

$37.60

9

TUBE, TIRE This part replaces 42712-KA3-711.

42712-KT1-673

$37.60

9

TUBE, TIRE This part replaces 42712-KA5-681.

42712-KT1-673

$37.60

9

TUBE, TIRE This part replaces 42712-KS7-003.

42712-KT1-673

$37.60

9

TUBE, TIRE This part replaces 42712-KT1-671.

42712-KT1-673

$37.60

9

TUBE, TIRE This part replaces 42712-430-701.

42712-KT1-673

$37.60

9

TUBE, TIRE This part replaces 42712-446-003.

42712-KT1-673

$37.60

10

FLAP, TIRE (1.40/1.60-18) (BS) This part replaces 42713-268-003.

42713-304-003

$6.69

11

STOPPER, BEAD (1.85)

42715-KA2-680

$32.27

11

STOPPER, BEAD (1.85) This part replaces 42715-360-006.

42715-KA2-680

$32.27

11

STOPPER, BEAD (1.85) This part replaces 42715-444-000.

42715-KA2-680

$32.27

12

BOLT, DRIVEN SPROCKET FIXING This part replaces 90128-391-000.

90128-KE2-940

$6.84

13

NUT, AXLE (14MM)

90305-401-680

$11.65

14

NUT, FLANGE (10MM)

90308-382-670

$4.07

15

CIRCLIP (58MM)

90664-216-000

$5.55

16

OIL SEAL (28X42X7) (ARAI) This part replaces 91257-230-000.

91257-230-003

$11.31

16

OIL SEAL (28X42X7) (ARAI)

91257-230-003

$11.31

16

OIL SEAL (28X42X7) (ARAI) This part replaces 91257-230-005.

91257-230-003

$11.31

17

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM)

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

18

WASHER, PLAIN (6MM)

94103-06000

$1.49

19

WASHER, SPRING (6MM)

94111-06000

$1.49

20

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

20

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

20

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

20

PIN, COTTER (3.0X45)

94201-30450

$1.49

21

BEARING, RADIAL BALL (6302UU) This part replaces 96140-63020-10.

96150-63020-10

$15.36

21

BEARING, RADIAL BALL (6302UU)

96150-63020-10

$15.36

22

SPOKE SET BS (8X169)

97506-69178-Q0

Unavailable

23

SPOKE BS (8X168.5)

97716-69177-Q0

Unavailable
