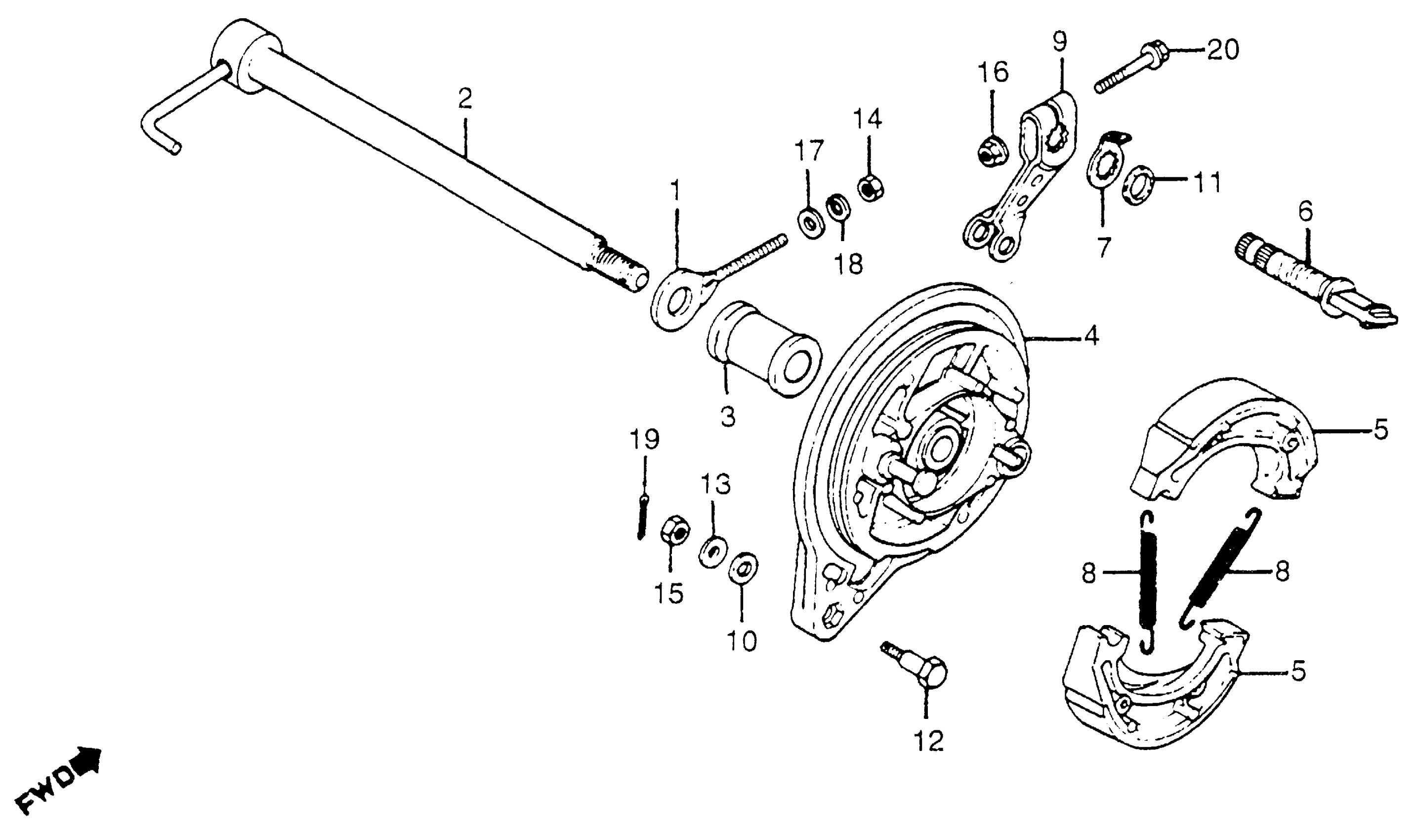

Honda XR185A (79) MOTORCYCLE, JPN, VIN# ME02-5000061 REAR BRAKE PANEL Diagram

#

Description
Price

NI

SHOE SET, BRAKE (ASK) This part replaces 06430-KT0-305.

06430-GBJ-J10

$29.23

NI

SHOE SET, BRAKE (ASK) This part replaces 06430-365-674.

06430-GBJ-J10

$29.23

NI

SHOE SET, BRAKE (ASK) This part replaces 431A2-365-672.

06430-GBJ-J10

$29.23

1

ADJUSTER C, R. CHAIN This part replaces 40543-437-000.

95014-12100

$5.54

1

ADJUSTER C, R. CHAIN

95014-12100

$5.54

2

AXLE, RR. WHEEL

42310-446-000

Unavailable

3

COLLAR, RR. BRAKE PANEL SIDE

42313-437-000

Unavailable

4

PANEL, RR. BRAKE *NH105* (MAT BLACK)

43100-382-790ZA

Unavailable

5

SHOE SET, BRAKE (ASK) This part replaces 43120-365-671.

06430-GBJ-J10

$29.23

5

SHOE SET, BRAKE (ASK) This part replaces 43120-365-672.

06430-GBJ-J10

$29.23

6

CAM, RR. BRAKE

43141-400-010

$23.52

7

INDICATOR, RR. BRAKE (NOT AVAILABLE)

43145-121-710

Unavailable

8

SPRING, BRAKE SHOE

43151-110-000

$2.92

9

ARM, RR. BRAKE

43410-437-000

Unavailable

10

RUBBER, STOPPER ARM CUSHION

43434-286-000

$2.92

11

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

12

BOLT, RR. BRAKE STOPPER

90127-400-000

$8.89

13

WASHER A, HANDLE HOLDER SETTING This part replaces 90505-425-000.

90524-030-000

$1.49

13

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.49

14

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM)

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

15

NUT, HEX. (8MM)

94001-08000-0S

$1.49

16

NUT, FLANGE (6MM)

94050-06000

$1.49

17

WASHER, PLAIN (6MM)

94103-06000

$1.49

18

WASHER, SPRING (6MM)

94111-06000

$1.49

19

PIN, COTTER (2.0X15)

94201-20150

$1.49

20

BOLT, FLANGE (6X35) This part replaces 95700-06035-00.

95701-06035-00

$1.80

20

BOLT, FLANGE (6X35)

95701-06035-00

$1.80
