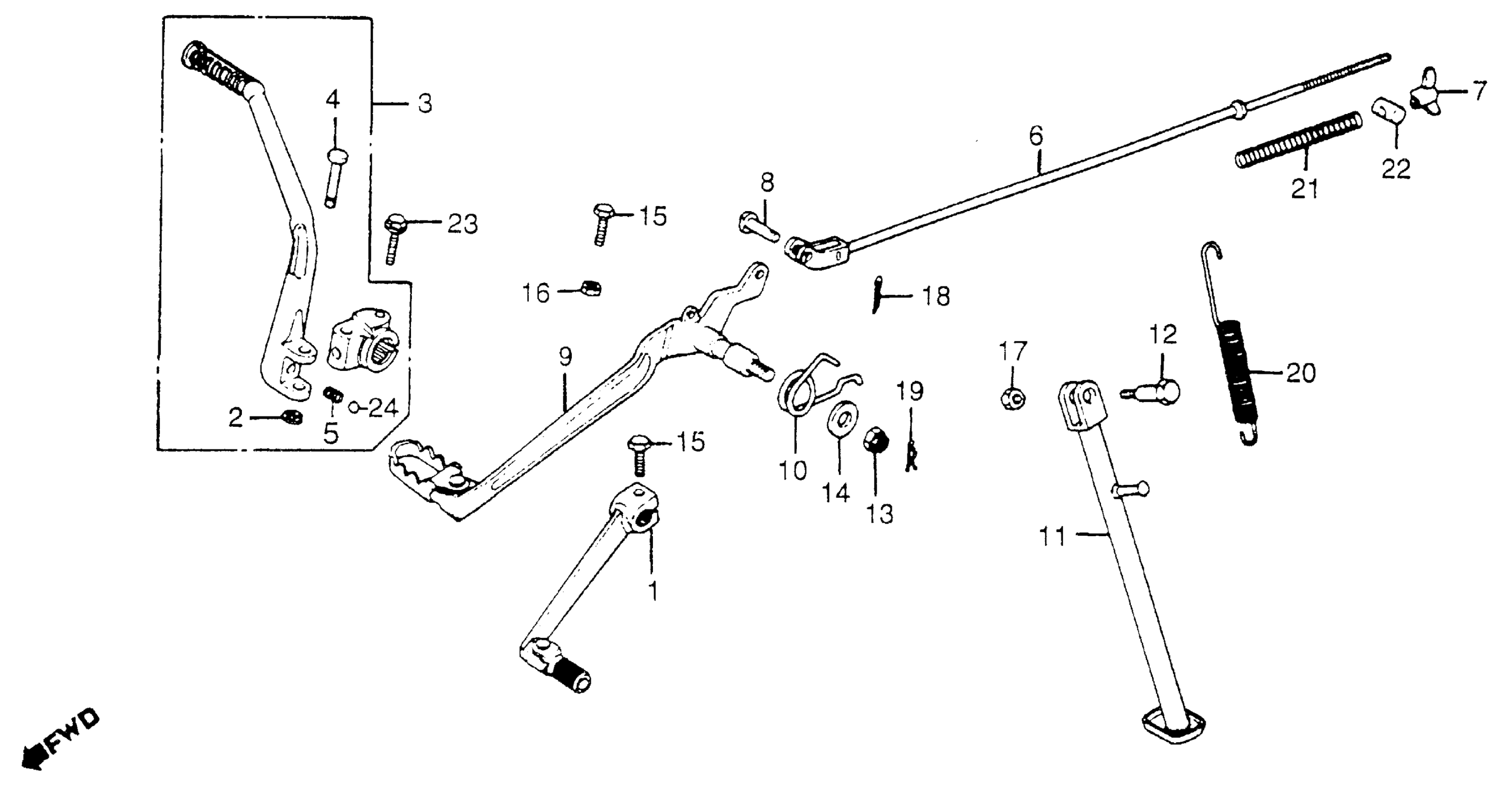

Honda XR185A (79) MOTORCYCLE, JPN, VIN# ME02-5000061 PEDAL + KICK STARTER ARM Diagram

#

Description
Price

1

PEDAL, GEARSHIFT (NOT AVAILABLE)

24700-446-000

Unavailable

2

CLIP, KICK STARTER ARM

28293-124-000

$2.19

3

ARM ASSY., KICK STARTER (NOT AVAILABLE)

28300-437-000

Unavailable

4

PIN, KICK STARTER (NOT AVAILABLE)

28321-437-000

Unavailable

5

SPRING, KICK STARTER STOPPER

28333-124-000

$2.06

6

ROD, RR. BRAKE (NOT AVAILABLE)

43451-446-000

Unavailable

7

NUT, BRAKE ADJUST

43459-434-000

$13.73

8

PIN, BRAKE ROD JOINT

43471-437-000

Unavailable

9

PEDAL ASSY., BRAKE This part replaces 46500-446-000.

46500-446-010

Unavailable

9

PEDAL ASSY., BRAKE

46500-446-010

Unavailable

10

SPRING, BRAKE PEDAL (NOT AVAILABLE)

46514-446-000

Unavailable

11

BAR, SIDE STAND (NOT AVAILABLE) This part replaces 50530-446-000.

50530-446-770

Unavailable

12

SCREW, SIDE STAND PIVOT

90108-283-000

$7.19

13

NUT, SELF-LOCK (10MM)

90351-268-000

$2.61

14

WASHER, EX. MANIFOLD

90501-579-020

$5.13

15

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$0.94

15

BOLT, HEX. (6X20)

92101-06020-0A

$0.94

16

NUT, HEX. (6MM) This part replaces 94002-06000.

94002-06000-0S

$1.19

16

NUT, HEX. (6MM)

94002-06000-0S

$1.19

17

NUT, HEX. (10MM)

94002-10000-0S

$3.67

18

PIN, COTTER (2.0X15)

94201-20150

$0.94

19

PIN, LOCK (10MM)

94251-10000

$1.09

20

SPRING D, SIDE STAND

95014-72402

$2.80

21

SPRING A, BRAKE ROD

95014-73100

$1.17

22

JOINT, BRAKE ARM

95015-32001

$0.86

23

BOLT, HEX. (6X22) | Use from Frame SN 5005010 This part replaces 92000-06022.

92101-06022-0A

$1.41

23

BOLT, HEX. (6X22) | Use from Frame SN 5005010 This part replaces 92000-06022-00.

92101-06022-0A

$1.41

23

BOLT, HEX. (6X22) | Use from Frame SN 5005010

92101-06022-0A

$1.41

23

BOLT, FLANGE (6X25) | Use up to Frame SN 5005009 This part replaces 95700-06025-00.

95701-06025-00

$1.64

23

BOLT, FLANGE (6X25) | Use up to Frame SN 5005009

95701-06025-00

$1.64

24

BALL, STEEL (#8) (1/4)

96211-08000

$1.13
