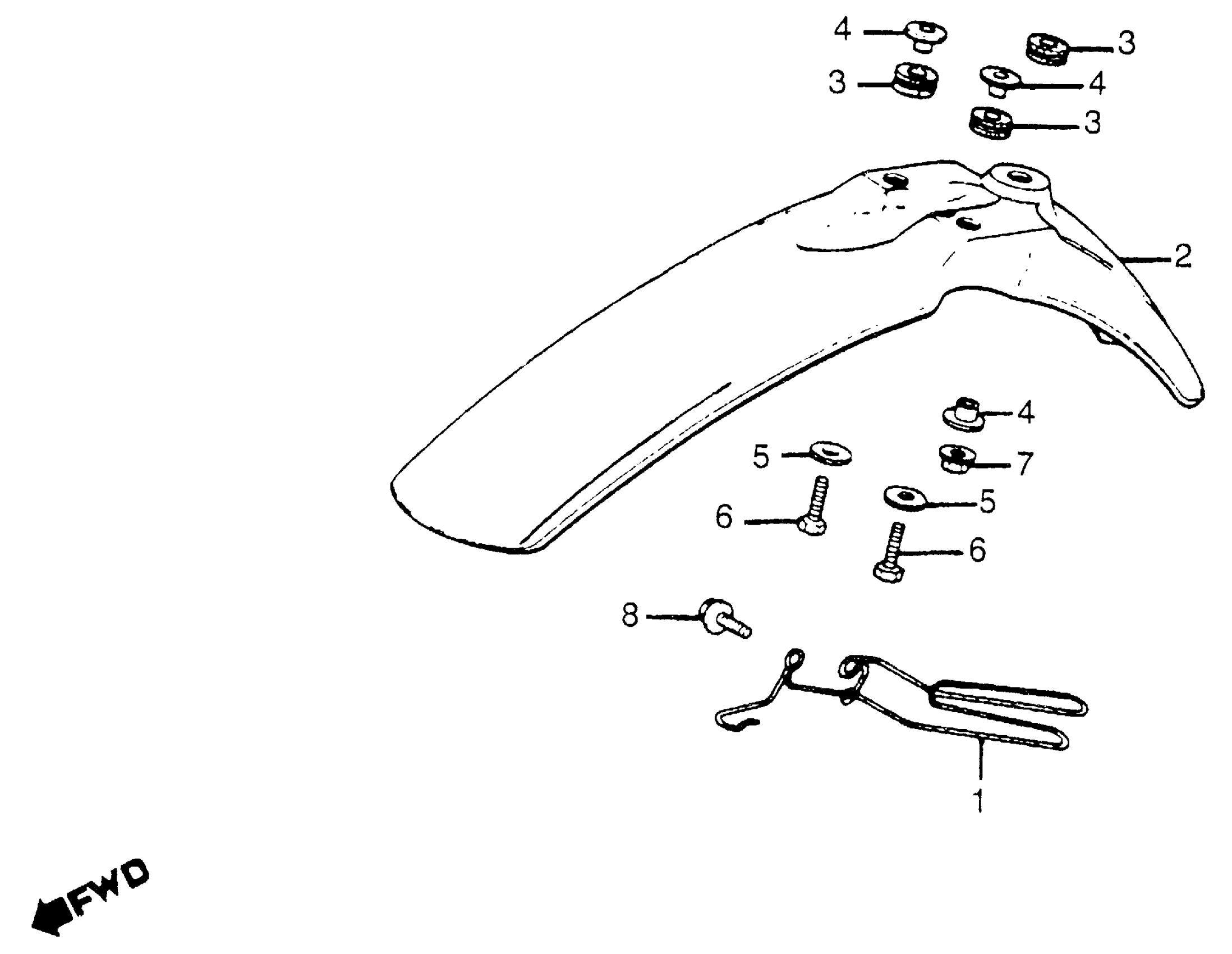

Honda XR185A (79) MOTORCYCLE, JPN, VIN# ME02-5000061 FRONT FENDER Diagram

CLAMP, SPEEDOMETER CABLE (NOT AVAILABLE)

44832-437-000

Unavailable

FENDER, FR. *R23* (TAHITIAN RED) (NOT AVAILABLE)

61100-446-000ZA

Unavailable

RUBBER, FR. FENDER SETTING

61103-357-000

$3.37

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

COLLAR, RR. FENDER

61105-428-000

Unavailable

WASHER, SEAT SETTING

77302-124-000

$3.23

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

NUT, FLANGE (6MM)

94050-06080

$1.49

BOLT, FLANGE (6X16) This part replaces 95700-06016-08.

95701-06016-08

$1.49

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

BOLT, FLANGE (6X16) This part replaces 95900-06016-08.

95701-06016-08

$1.49
