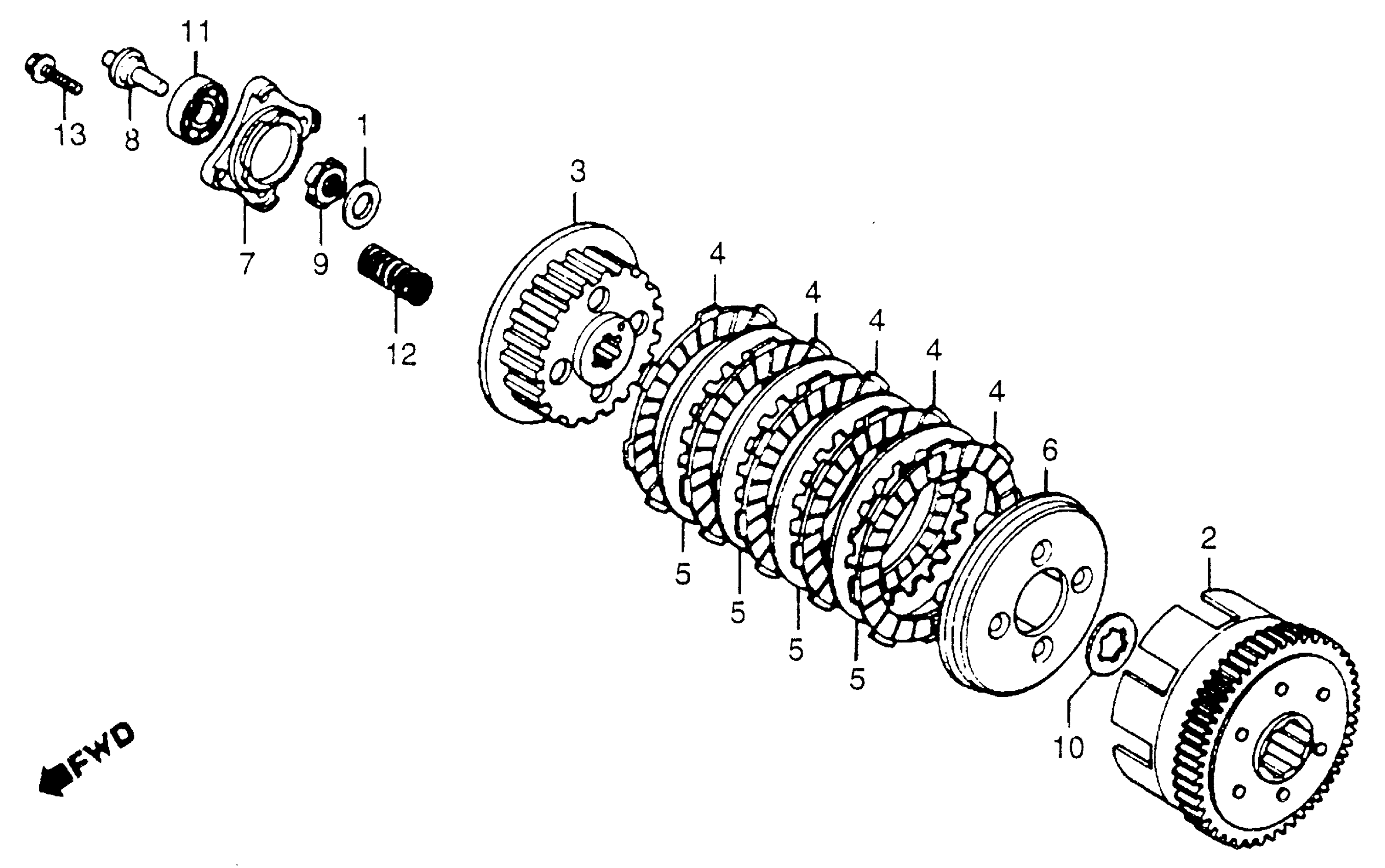

Honda XR185A (79) MOTORCYCLE, JPN, VIN# ME02-5000061 CLUTCH Diagram

#

Description
Price

1

WASHER, OIL FILTER ROTOR LOCKING

15451-107-000

$3.84

2

CLUTCH (OUTER) This part replaces 22100-437-010.

22100-437-020

Unavailable

2

CLUTCH (OUTER)

22100-437-020

Unavailable

3

CENTER, CLUTCH

22121-KCS-650

$35.46

3

CENTER, CLUTCH This part replaces 22121-107-010.

22121-KCS-650

$35.46

4

DISK, CLUTCH FRICTION This part replaces 22201-GF6-000.

22201-166-000

$16.07

4

DISK, CLUTCH FRICTION This part replaces 22201-KB4-670.

22201-166-000

$16.07

4

DISK, CLUTCH FRICTION This part replaces 22201-107-000.

22201-166-000

$16.07

4

DISK, CLUTCH FRICTION

22201-166-000

$16.07

5

PLATE, CLUTCH

22311-KN4-680

$6.02

5

PLATE, CLUTCH This part replaces 22311-107-000.

22311-KN4-680

$6.02

6

PLATE, CLUTCH PRESSURE This part replaces 22350-107-000.

22350-107-010

$28.38

6

PLATE, CLUTCH PRESSURE

22350-107-010

$28.38

7

PLATE, CLUTCH LIFTER

22361-437-000

$13.61

8

ROD, CLUTCH LIFTER

22366-KCN-000

Unavailable

8

ROD, CLUTCH LIFTER This part replaces 22366-437-000.

22366-KCN-000

Unavailable

9

NUT, LOCK (16MM)

90231-KCS-651

$4.01

9

NUT, LOCK (16MM) This part replaces 90231-200-010.

90231-KCS-651

$4.01

10

WASHER B, SPLINE (20MM)

90461-107-000

$4.44

11

BEARING, RADIAL BALL (16003) This part replaces 91008-KK6-000.

91011-KK6-013

$14.15

11

BEARING, RADIAL BALL (16003) This part replaces 91008-362-000.

91011-KK6-013

$14.15

11

BEARING, RADIAL BALL (16003) This part replaces 91010-HC0-003.

91011-KK6-013

$14.15

11

BEARING, RADIAL BALL (16003)

91011-KK6-013

$14.15

12

SPRING, CLUTCH

95014-75110

$2.09

13

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.78

13

BOLT, FLANGE (6X20)

95701-06020-00

$1.78
