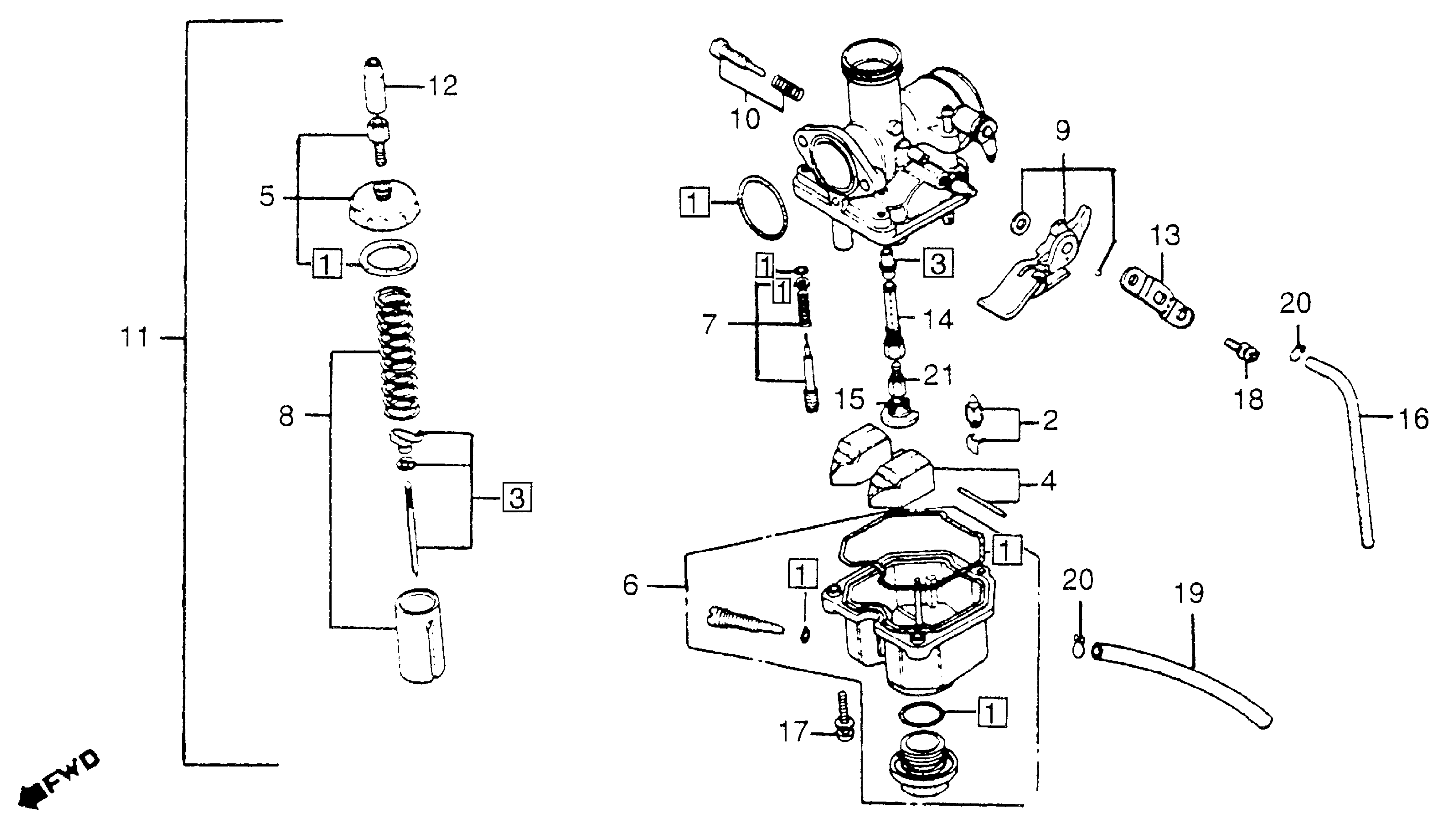

Honda XR185A (79) MOTORCYCLE, JPN, VIN# ME02-5000061 CARBURETOR Diagram

#

Description
Price

1

GASKET SET

16010-KT0-A10

$25.38

1

GASKET SET This part replaces 16010-446-004.

16010-KT0-A10

$25.38

2

VALVE SET, FLOAT This part replaces 16011-382-004.

16011-KCK-910

$33.82

3

NEEDLE SET, JET (NOT AVAILABLE) This part replaces 16012-446-004.

16012-446-014

Unavailable

3

NEEDLE SET, JET (NOT AVAILABLE)

16012-446-014

Unavailable

4

FLOAT SET

16013-405-004

$56.20

5

TOP SET This part replaces 16014-324-680.

16014-324-681

Unavailable

5

TOP SET

16014-324-681

Unavailable

6

CHAMBER SET, FLOAT This part replaces 16015-446-004.

16015-KCE-671

Unavailable

7

SCREW SET A This part replaces 16016-385-681.

16016-402-004

$20.82

7

SCREW SET A

16016-402-004

$20.82

8

VALVE SET, THROTTLE (NOT AVAILABLE) This part replaces 16022-446-004.

16022-446-651

Unavailable

8

VALVE SET, THROTTLE (NOT AVAILABLE)

16022-446-651

Unavailable

9

LEVER SET, CHOKE

16025-440-004

Unavailable

10

SCREW SET B This part replaces 16028-402-004.

16028-KB1-D11

$5.98

11

CARBURETOR ASSY. (NOT AVAILABLE)

16100-446-014

Unavailable

12

CAP, CABLE SEALING This part replaces 16118-086-004.

16118-166-004

$8.08

12

CAP, CABLE SEALING

16118-166-004

$8.08

13

PLATE, SETTING (NOT AVAILABLE)

16119-446-004

Unavailable

14

HOLDER, NEEDLE JET (NOT AVAILABLE)

16165-446-004

Unavailable

15

HOLDER, JET

16168-382-014

$9.81

16

PIPE, AIR VENT

16199-427-004

Unavailable

17

SCREW-WASHER (4X16)

93892-04016-08

$1.49

18

SCREW-WASHER (5X12)

93892-05012-08

$1.49

19

BULK HOSE, FUEL (3.5X3000) (3.5X360)

95001-35003-60M

$20.85

20

CLIP, TUBE (B7)

95002-02070

$1.80

21

JET SET, MAIN (#110) (NOT AVAILABLE) | (Optional).

16110-446-305

Unavailable

21

JET, MAIN (#115)

99101-357-1150

$18.70
