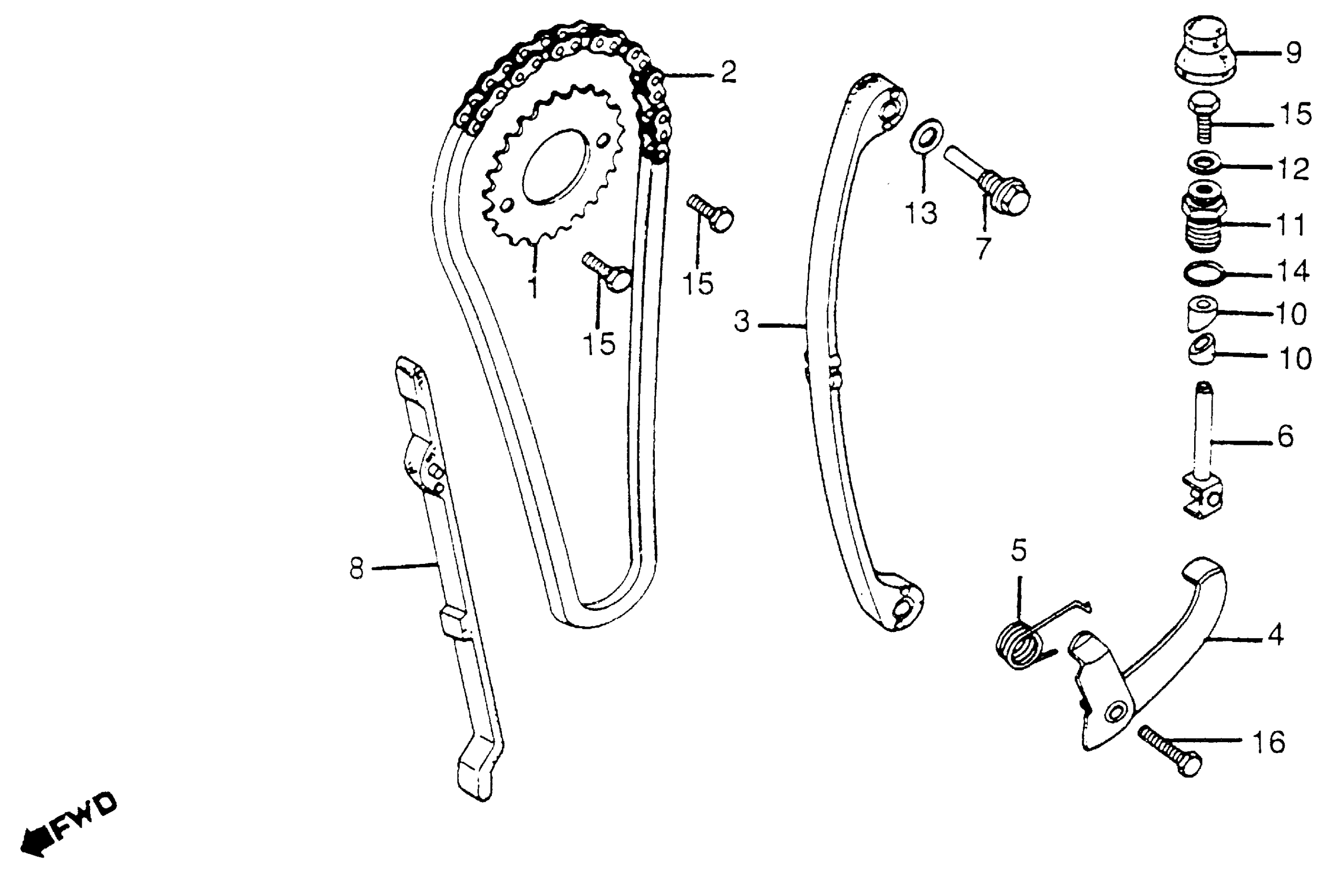

Honda XR185A (79) MOTORCYCLE, JPN, VIN# ME02-5000061 CAM CHAIN + TENSIONER Diagram

SPROCKET, CAM (32T)

14321-437-000

Unavailable

CHAIN, CAM (100L) (DAIDO) This part replaces 14401-427-003.

14401-958-003

$75.65

CHAIN, CAM (100L) (DAIDO)

14401-958-003

$75.65

TENSIONER, CAM CHAIN

14500-427-000

$69.14

ARM, CAM CHAIN TENSIONER

14510-383-000

$30.20

SPRING, CAM CHAIN TENSIONER

14515-383-000

$4.74

BAR, TENSIONER SETTING

14520-969-010

$23.42

BOLT, CAM CHAIN TENSIONER PIVOT

14535-437-000

$5.86

GUIDE, CAM CHAIN

14550-427-000

$47.52

CAP, TENSIONER ADJ.

14564-383-000

$4.13

COLLAR, SET BAR LOCKING

14626-383-000

$8.54

BOLT, SPECIAL (16MM)

90082-383-000

$24.30

WASHER, SEALING (6MM)

90441-028-010

$2.80

WASHER (8MM)

90481-035-000

$1.70

O-RING (13X2.5)

91335-567-000

$3.73

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.28

BOLT, HEX. (6X10)

92101-06010-0A

$1.28

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$0.94

BOLT, HEX. (6X20)

92101-06020-0A

$0.94
