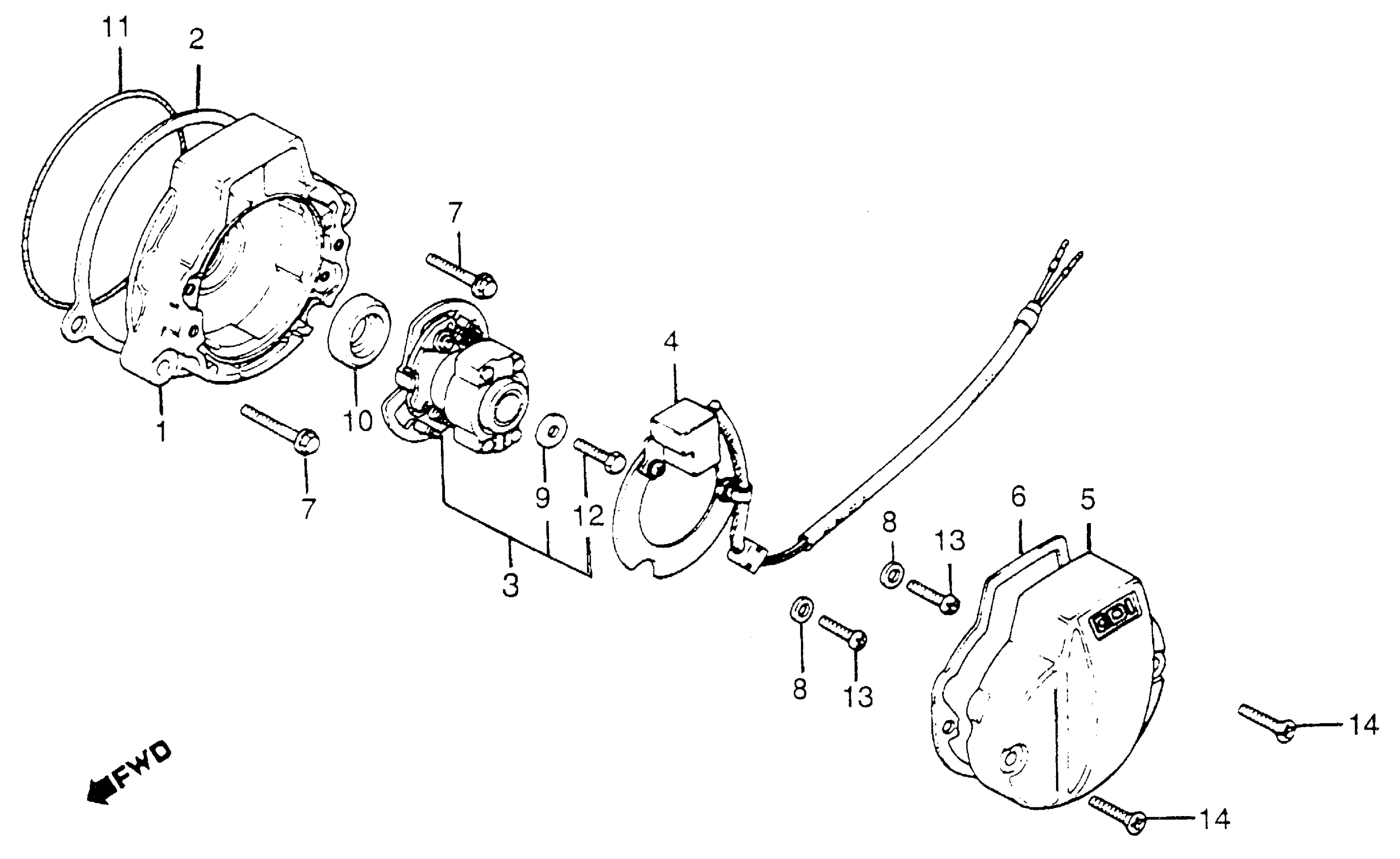

Honda XR185A (79) MOTORCYCLE, JPN, VIN# ME02-5000061 C.D.I. PULSER Diagram

BASE, PULSE GENERATOR

12332-437-000

Unavailable

GASKET This part replaces 12339-KT0-710.

12339-KT0-712

$7.04

GASKET This part replaces 12339-437-003.

12339-KT0-712

$7.04

GASKET This part replaces 12339-437-306.

12339-KT0-712

$7.04

ADVANCER ASSY., SPARK This part replaces 30220-427-154.

30220-427-164

Unavailable

ADVANCER ASSY., SPARK

30220-427-164

Unavailable

GENERATOR ASSY., PULSE (TOYO) This part replaces 30300-437-154.

30300-437-164

Unavailable

GENERATOR ASSY., PULSE (TOYO)

30300-437-164

Unavailable

COVER, PULSE GENERATOR

30370-437-000

Unavailable

GASKET This part replaces 30372-437-000.

30372-437-030

$8.37

GASKET This part replaces 30372-437-010.

30372-437-030

$8.37

GASKET This part replaces 30372-437-306.

30372-437-030

$8.37

BOLT, FLANGE (6X25) This part replaces 90005-437-000.

96000-06025-00

$2.00

BOLT, FLANGE (6X25)

96000-06025-00

$2.00

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

WASHER (5MM)

90482-028-000

$2.09

WASHER, SPARK ADVANCER SETTING

90486-028-000

$2.13

OIL SEAL (15X25X7) This part replaces 91202-107-003.

91203-965-003

$6.41

OIL SEAL (15X25X7)

91203-965-003

$6.41

O-RING (75X2.5)

91301-107-000

$4.87

BOLT, HEX. (6X14) BOLT, FLANGE (6X14) This part replaces 92000-06014.

92101-06014-0A

$1.49

BOLT, HEX. (6X14)

92101-06014-0A

$1.49

SCREW, PAN (5X12)

93500-05012-0A

$1.49

SCREW, OVAL (5X20)

93700-05020-0B

$1.49
