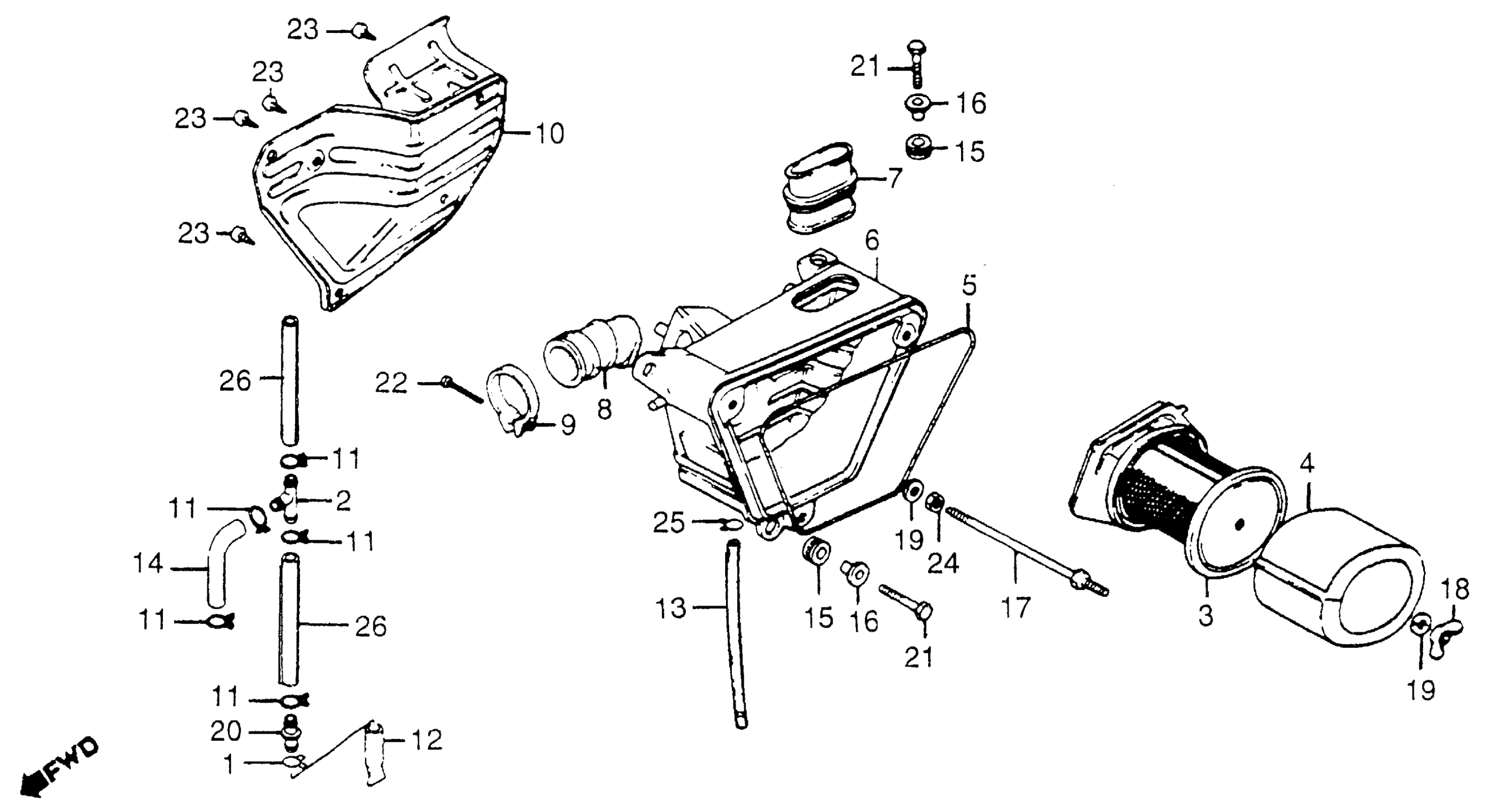

Honda XR185A (79) MOTORCYCLE, JPN, VIN# ME02-5000061 AIR CLEANER Diagram

CLIP, BREATHER TUBE

15772-292-010

$2.92

JOINT, BREATHER THREE-WAY

15772-376-000

$19.49

TRAP, FLAME (NOT AVAILABLE)

17211-446-000

Unavailable

ELEMENT, AIR CLEANER

17213-437-000

$11.59

SEAL, AIR CLEANER COVER (NOT AVAILABLE)

17219-446-000

Unavailable

HOUSING, AIR CLEANER (NOT AVAILABLE)

17230-446-000

Unavailable

TUBE, AIR CLEANER IN.

17240-446-000

Unavailable

TUBE, AIR CLEANER CONNECTING (NOT AVAILABLE)

17253-446-000

Unavailable

BAND A, AIR CLEANER CONNECTING TUBE

17255-323-000

$7.30

PROTECTOR, AIR CLEANER (NOT AVAILABLE)

17260-437-010

Unavailable

CLIP, BREATHER TUBE

17316-611-000

$9.23

TUBE,DRAIN This part replaces 17358-381-000.

17358-KEJ-900

Unavailable

TUBE ASSY., DRAIN

17365-437-305

$4.52

TUBE B, BREATHER (NOT AVAILABLE)

17561-446-000

Unavailable

RUBBER, FR. FENDER SETTING

61103-357-000

$3.37

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

COLLAR, RR. FENDER

61105-428-000

Unavailable

BOLT, AIR CLEANER SETTING (NOT AVAILABLE)

90113-446-000

Unavailable

WINGNUT, TOOL BOX SETTING

90325-044-000

$3.51

WASHER, SEALING (6MM)

90416-551-000

Unavailable

JOINT, TUBE

91463-393-780

$1.80

BOLT, HEX. (6X22) This part replaces 92000-06022.

92101-06022-0A

$1.54

BOLT, HEX. (6X22) This part replaces 92000-06022-00.

92101-06022-0A

$1.54

BOLT, HEX. (6X22)

92101-06022-0A

$1.54

SCREW, PAN (4X25)

93500-04025-0A

$1.93

SCREW, TAPPING (4X10)

93903-34220

$1.49

NUT, HEX. (6MM) This part replaces 94001-06080.

94001-06080-0S

$1.49

NUT, HEX. (6MM)

94001-06080-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06080-08.

94001-06080-0S

$1.49

CLIP, TUBE (C12)

95002-80000

$1.49

BULK HOSE, VACUUM (12X1000) (12X230)

95005-12001-20M

$34.11
