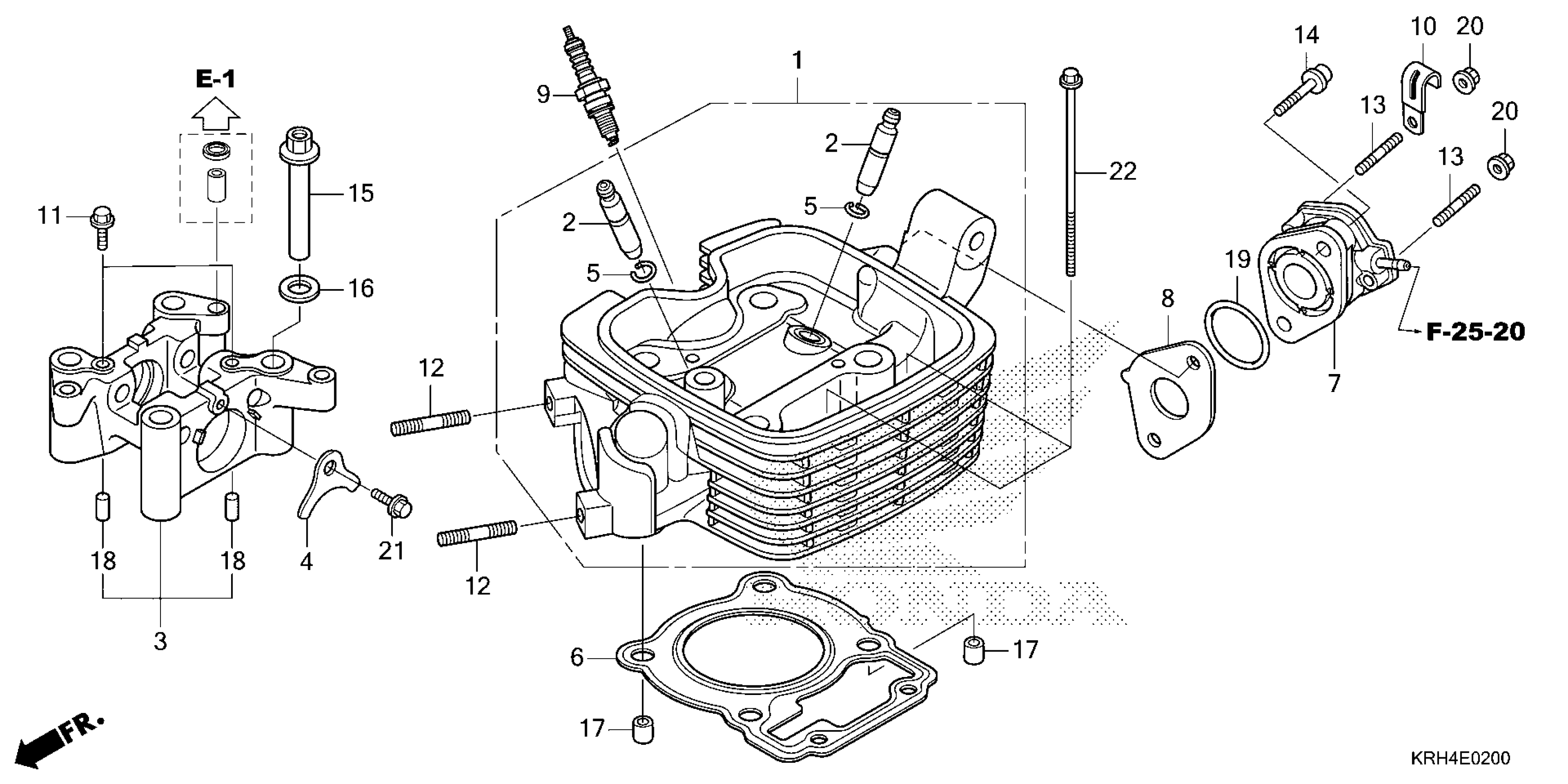

Honda XR150LEAC (25) MOTORCYCLE, MEX, VIN# 3H1KD131-SD200001 TO 3H1KD131-SD299999 CYLINDER HEAD Diagram

CYLINDER HEAD

12200-KRH-650

$265.69

GUIDE, VALVE (OVER SIZE)

12204-KRM-305

$11.41

HOLDER, CAMSHAFT

12210-KVX-600

$25.41

PLATE, STOPPER

12212-KRM-840

$2.03

CLIP, VALVE GUIDE

12213-KRM-840

$0.84

CLIP, VALVE GUIDE

12213-KTT-900

$1.72

GASKET, CYLINDER HEAD

12251-KRM-872

$14.90

INSULATOR, CARB

16210-KRH-650

$29.26

GASKET

16214-KRH-651

$2.87

SPARK PLUG (CPR8EA-9) (NGK)

31916-KRM-841

$4.88

CLIP, PULSER WIRE

32925-958-000

$2.76

BOLT, FLANGE (5X14)

90002-KRM-840

$0.54

BOLT, STUD (8X22)

90035-KRM-840

$9.46

BOLT, STUD (6X19)

90035-KWK-900

$1.40

BOLT, FLANGE SOCKET (6X22)

90091-KRM-840

$0.68

NUT, CYLINDER HEAD

90306-KRM-840

$2.79

WASHER, PLAIN (12MM)

90404-KPT-A00

$0.86

PIN, DOWEL (10X12) This part replaces 90703-KRM-840.

94301-10120

$2.80

PIN, DOWEL (10X12)

94301-10120

$2.80

PIN, DOWEL (6X10)

90704-KRM-840

$0.87

O-RING (33.5X3.0)

91304-KRM-840

$2.87

NUT, FLANGE (6MM)

94050-06000

$0.60

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$0.93

BOLT, FLANGE (6X105)

95801-06105-00

$2.15
