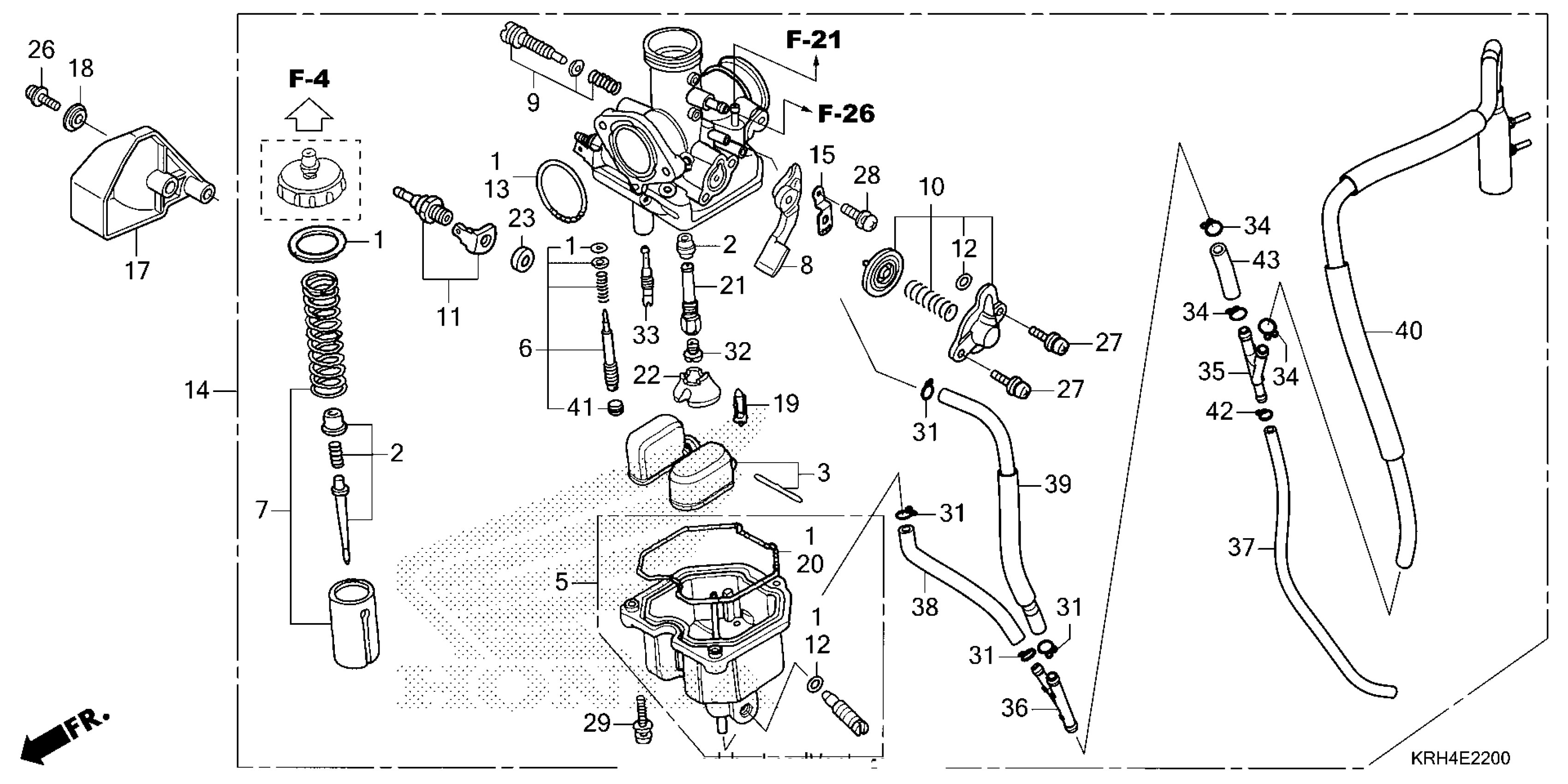

Honda XR150LEAC (25) MOTORCYCLE, MEX, VIN# 3H1KD131-SD200001 TO 3H1KD131-SD299999 CARBURETOR Diagram

GASKET SET

16010-KCH-780

$32.75

NEEDLE SET, JET

16012-KRH-J01

$27.44

FLOAT SET

16013-KEH-900

$50.93

CHAMBER SET, FLOAT

16015-KRG-003

$96.34

SCREW SET A

16016-KRH-J01

$16.98

VALVE SET, THROTTLE

16022-KRH-J01

$34.75

LEVER SET, CHOKE

16025-KRF-B41

$33.16

SCREW SET B

16028-KEB-G01

$12.44

SCREW SET B This part replaces 16028-KEH-900.

16028-KEB-G01

$12.44

VALVE SET, AIR CUT

16048-KRH-A01

$77.00

HEATER ASSY.

16070-KRH-681

$31.10

O-RING (1.3X4.3)

16075-GHB-640

$2.92

O-RING (2.4X29)

16075-GHB-B70

$7.81

CARBURETOR (PDN2S A)

16100-KRH-J01

$468.20

PLATE, SETTING

16119-KRF-B41

$9.13

COVER

16151-KRH-950

$7.56

COLLAR

16152-KRH-900

$9.95

VALVE, FLOAT

16155-KFR-701

$27.25

GASKET, FLOAT CHAMBER

16163-KCS-920

$11.91

HOLDER, NEEDLE JET

16165-KRH-651

$22.59

HOLDER, JET

16168-382-014

$9.81

COLLAR, SETTING

16172-KCP-J01

$1.74

SCREW-WASHER (4X12)

90001-KGA-E00

$1.75

SCREW-WASHER (4X10)

93892-04010-00

$1.49

SCREW-WASHER (4X10) This part replaces 93892-04010-10.

93892-04010-00

$1.49

SCREW-WASHER (4X10)

93892-04010-08

$1.49

SCREW-WASHER (4X10) This part replaces 93892-04010-18.

93892-04010-08

$1.49

SCREW-WASHER (4X16)

93892-04016-08

$1.49

CLIP, TUBE (B1 8)

95002-02089

$1.49

JET, MAIN (#102) | (Optional).

99101-GHB-1020

$6.40

JET, MAIN (#105)

99101-GHB-1050

$6.40

JET (#35X#35)

99103-KRH-0350

$6.54

CLIP, TUBE

16163-GHB-600

$1.97

JOINT (THREE-WAY)

16180-KYY-901

$5.21

JOINT

16180-ML6-671

$15.97

TUBE

16196-KRH-J01

$2.74

TUBE

16197-KRH-J01

$4.74

TUBE, AIR VENT

16198-KRH-J01

$5.34

TUBE, AIR VENT (NA USE ALT:16100-KRH-J01)

16199-KRH-J01

Unavailable

CAP, ADJUSTING SCREW

16312-KYK-911

$2.70

CLIP, TUBE (B6.5)

95002-02659

$1.49

BULK HOSE, VACUUM (5X1000) (5X200) (BULK HOSE: 95005-50001-50M)

95005-50001-50M

$9.17
