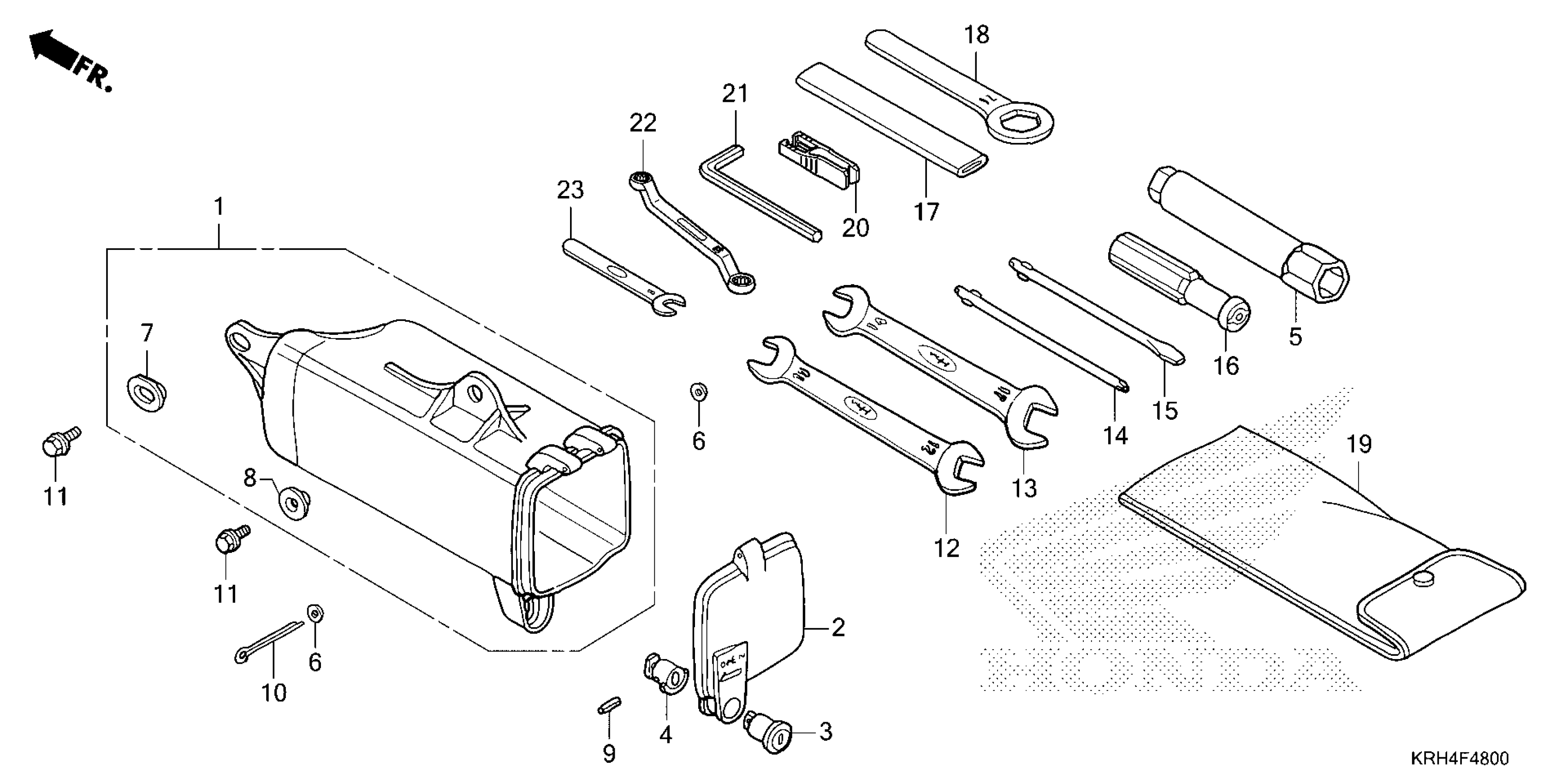

Honda XR150LEAC (23) MOTORCYCLE, MEX, VIN# 3H1KD131-PD000001 TO 3H1KD131-PD099999 TOOLS Diagram

#

Description
Price

1

BOX, TOOL

83502-KRH-900

$30.84

2

CAP, TOOL BOX

83504-KRH-900

$18.25

3

BODY, KEY

83507-422-000

$3.53

4

STOPPER, KEY BODY

83508-MR4-900

$3.59

5

WRENCH, SPARK PLUG | (Optional).

89216-K79-E00

$8.16

6

WASHER, PLAIN (3MM)

94101-03000

$1.49

7

WASHER (6X9)

90501-KGA-E00

$2.02

7

WASHER (6X9)

90505-KRH-900

$2.02

8

WASHER (6.5X20)

90512-KRH-900

$2.02

8

WASHER (6X20) COLLAR, HEADLIGHT SETTING

90512-300-000

$3.08

9

PIN, SPRING (2X14)

91501-MR4-900

$1.49

10

PIN, SPLIT (3.0X45) PIN, SPLIT (4.0X30)

94201-30450

$1.49

11

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62

12

WRENCH (10X12) (OPEN END)

99001-10120

$4.69

13

WRENCH (14X17) (OPEN END) | (Optional).

99001-14170

$7.49

14

SCREWDRIVER 1, PHILLIPS (NO.2) | (Optional).

99003-10000

$3.27

15

SCREWDRIVER 3, STRAIGHT SLOT (NO.2)

99003-30000

$3.27

16

GRIP, SCREW DRIVER

99003-50000

$3.27

17

HANDLE, EYE WRENCH (120MM) | (Optional).

99006-12000

$2.87

18

WRENCH, EYE (24MM) | (Optional).

99006-24000

$4.29

19

BAG, TOOL (160MM)

99008-01600

$2.22

20

PULLER, MINI FUSE | (Optional).

38235-SNA-A01

$3.84

21

WRENCH, HEX. (5MM) | (Optional).

89221-429-000

$3.90

22

WRENCH, EYE (10X12) (NOT AVAILABLE-ORDER TOOL SET) | (Optional).

89227-461-000

$25.42

23

WRENCH (8MM) (OPEN END) | (Optional).

99001-08000

$6.10
