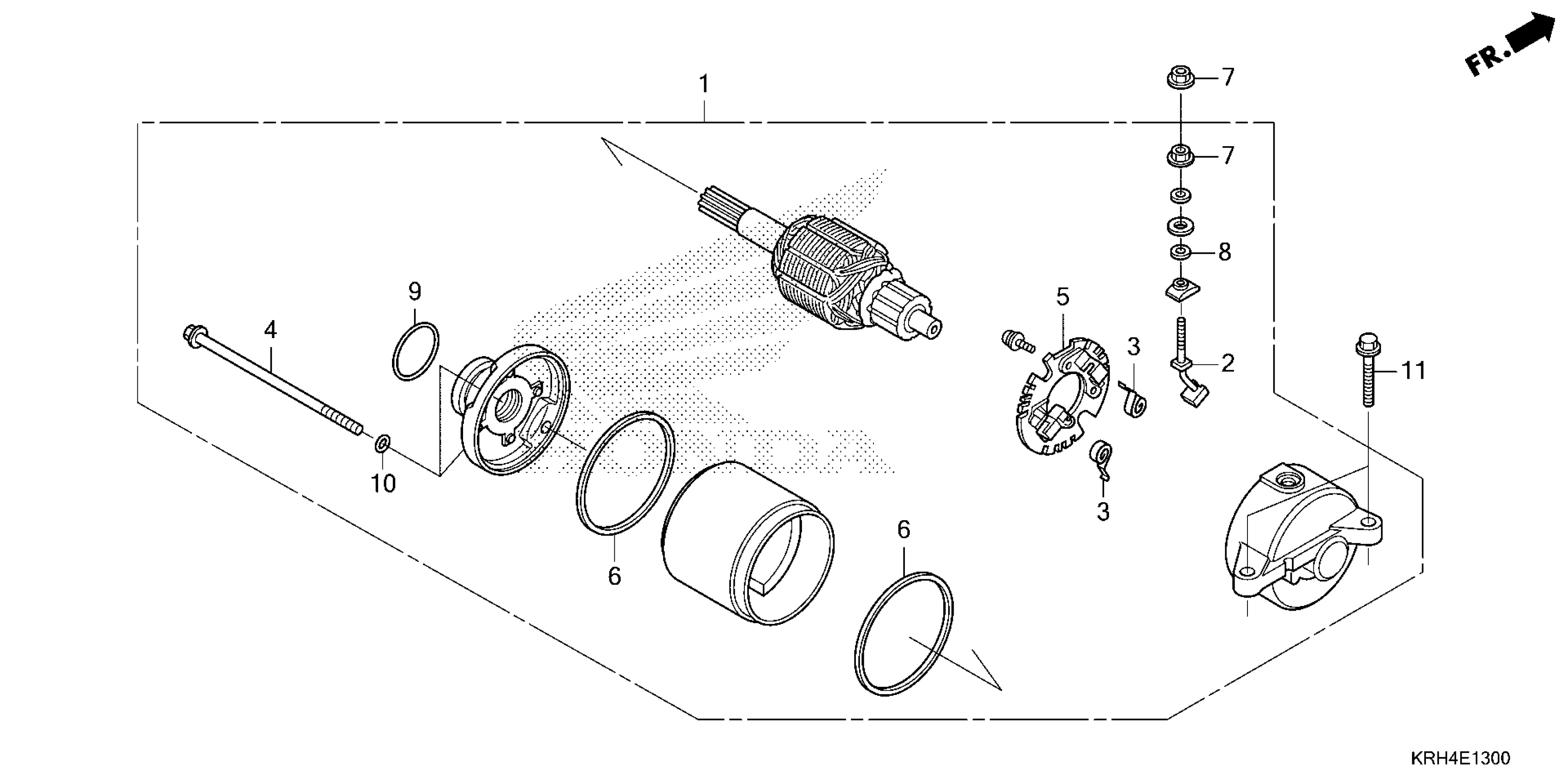

Honda XR150LEAC (23) MOTORCYCLE, MEX, VIN# 3H1KD131-PD000001 TO 3H1KD131-PD099999 STARTER MOTOR Diagram

#

Description
Price

1

STARTER MOTOR ASSY.

31200-KRH-651

$403.35

2

TERMINAL SET, BRUSH

31201-KVC-901

$15.23

3

SPRING, BRUSH

31204-KRH-651

$2.28

4

BOLT SET

31205-KYY-931

$2.96

5

HOLDER SET, BRUSH

31206-KRH-651

$11.84

6

RING

31207-KRH-651

$2.97

7

NUT-WASHER (6MM)

90071-K28-910

$2.33

8

GASKET

91308-KRH-651

$1.78

9

O-RING (24.4X3.1)

91309-KYY-931

$1.96

10

O-RING

91320-KYY-931

$1.96

11

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable
