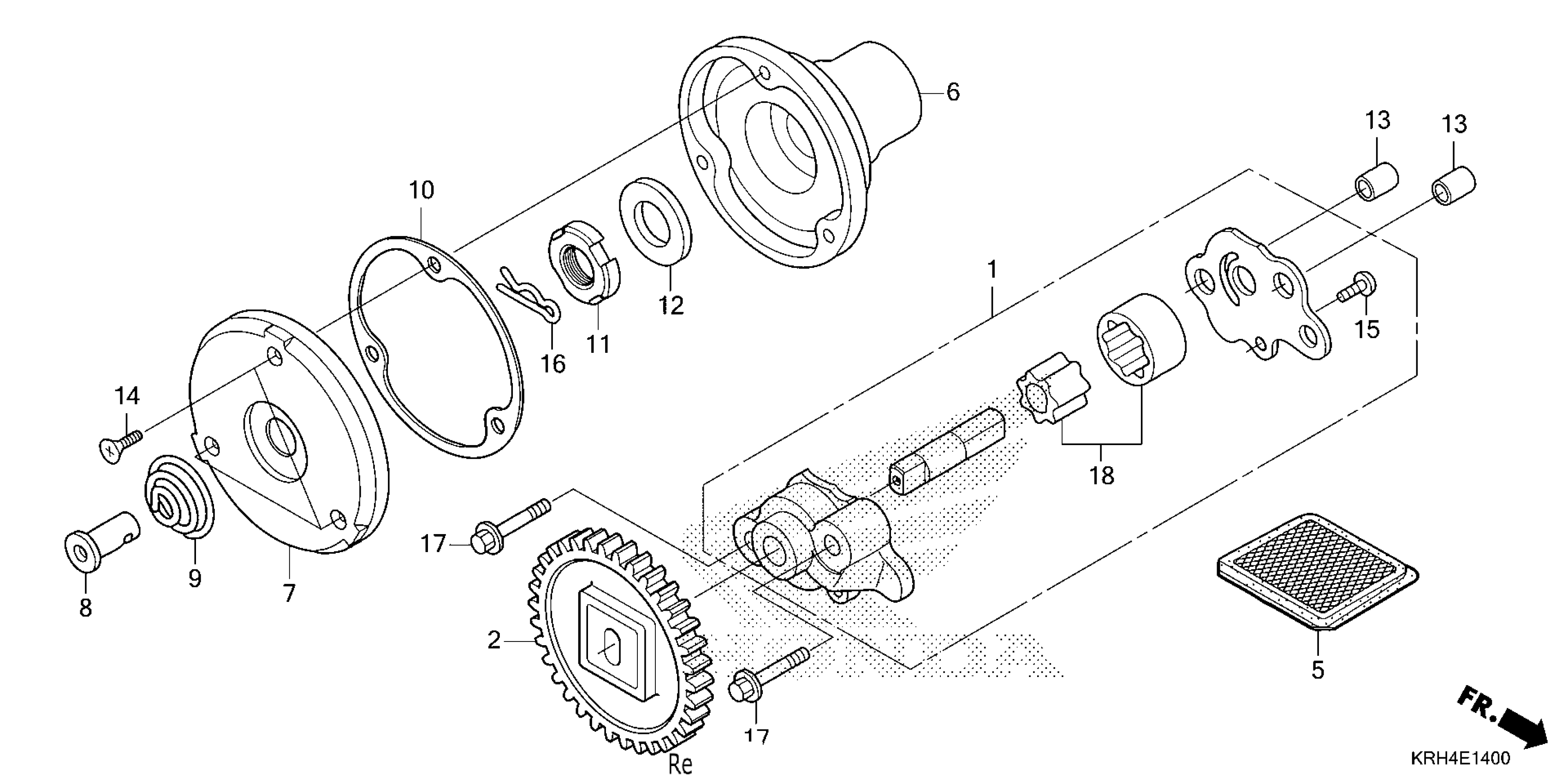

Honda XR150LEAC (23) MOTORCYCLE, MEX, VIN# 3H1KD131-PD000001 TO 3H1KD131-PD099999 OIL PUMP Diagram

PUMP ASSY., OIL

15100-KTT-900

$27.06

GEAR, OIL PUMP (34T)

15130-KTT-900

$41.58

SCREEN, OIL FILTER

15421-KSP-910

$3.26

ROTOR, OIL FILTER

15430-KSP-910

$7.42

CAP, OIL FILTER ROTOR

15436-KRM-840

$6.39

THROUGH, OIL

15441-KCS-650

$6.16

SPRING, OIL THROUGH

15446-107-000

$3.75

GSKT, OIL FILTER CAP

15459-K70-630

$3.22

NUT, LOCK (14MM)

90231-KRM-840

$8.64

WASHER (14.2X26X3)

90432-KPT-A00

$1.64

PIN, DOWEL (8X14)

90702-KRM-840

$0.61

SCREW, OVAL (5X12)

93700-05012-0A

$0.71

SCREW, TAPPING (4X8)

93901-34120

$0.83

PIN, LOCK (8MM)

94251-08000

$1.12

BOLT, FLANGE (6X35)

95701-06035-00

$1.71

ROTOR SET, OIL PUMP (NA USE ALT:15100-HS0-A00)

15021-HS0-A00

Unavailable
