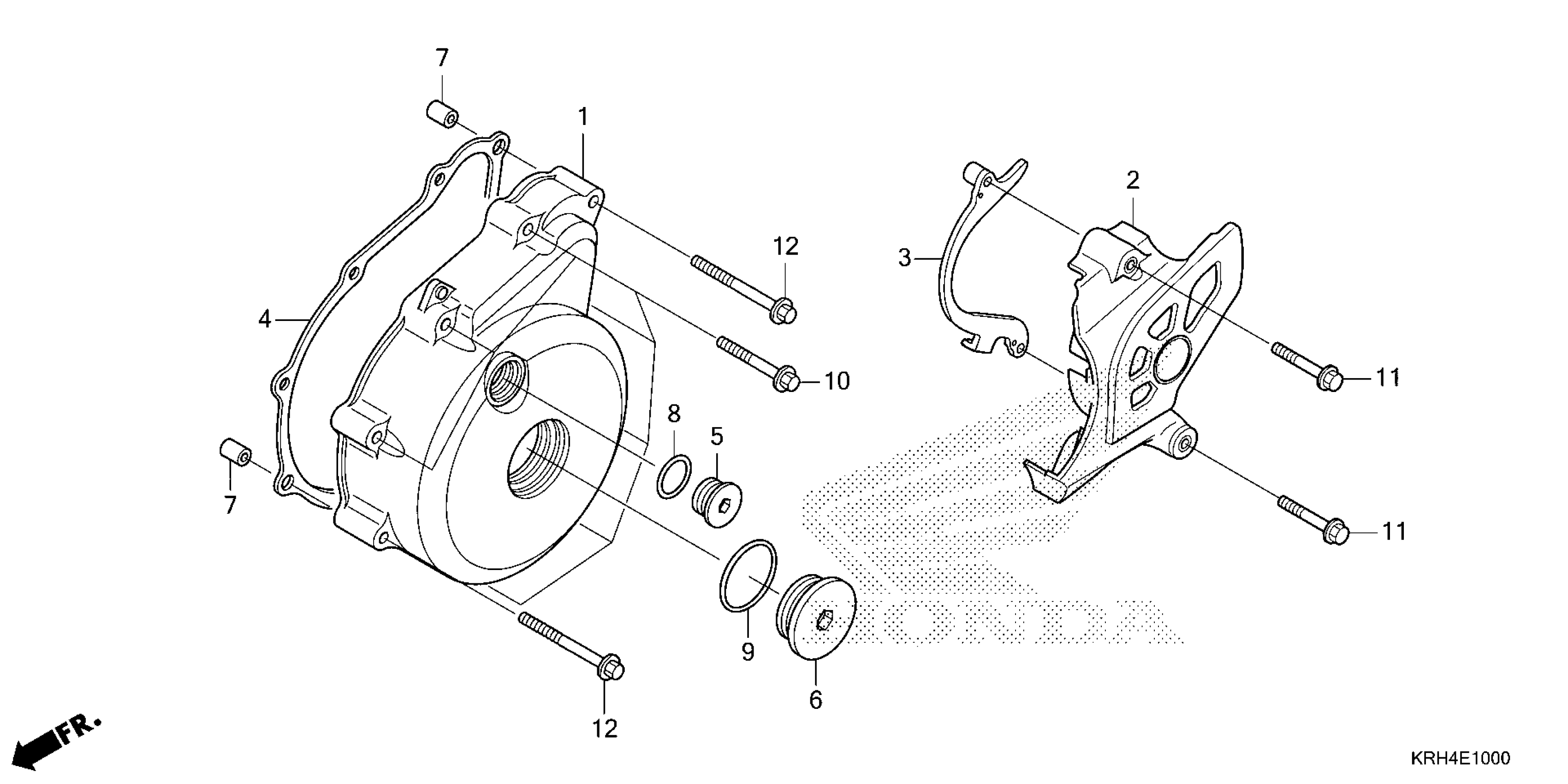

Honda XR150LEAC (23) MOTORCYCLE, MEX, VIN# 3H1KD131-PD000001 TO 3H1KD131-PD099999 LEFT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, L. CRANKCASE

11341-KWK-900

$101.32

2

COVER, L. RR.

11360-KRH-780

$26.22

3

GUIDE, DRIVE CHAIN

11365-KRH-780

$11.68

4

GASKET, L COVER

11395-KYA-C00

$9.22

5

CAP (14MM)

90084-KTT-900

$7.30

6

CAP (32MM)

90087-KRM-840

$18.72

7

PIN, DOWEL (8X14)

90702-KRM-840

$0.62

8

O-RING (13.8X2.5)

91303-KRM-840

$0.81

9

O-RING (31.7X2.4)

91305-KRM-840

$1.28

10

BOLT, FLANGE (6X35) (Honda Code 2112209)

96001-06035-00

Unavailable

11

BOLT, FLANGE (6X40)

96001-06040-00

$2.75

12

BOLT, FLANGE (6X45)

96001-06045-00

$1.81
