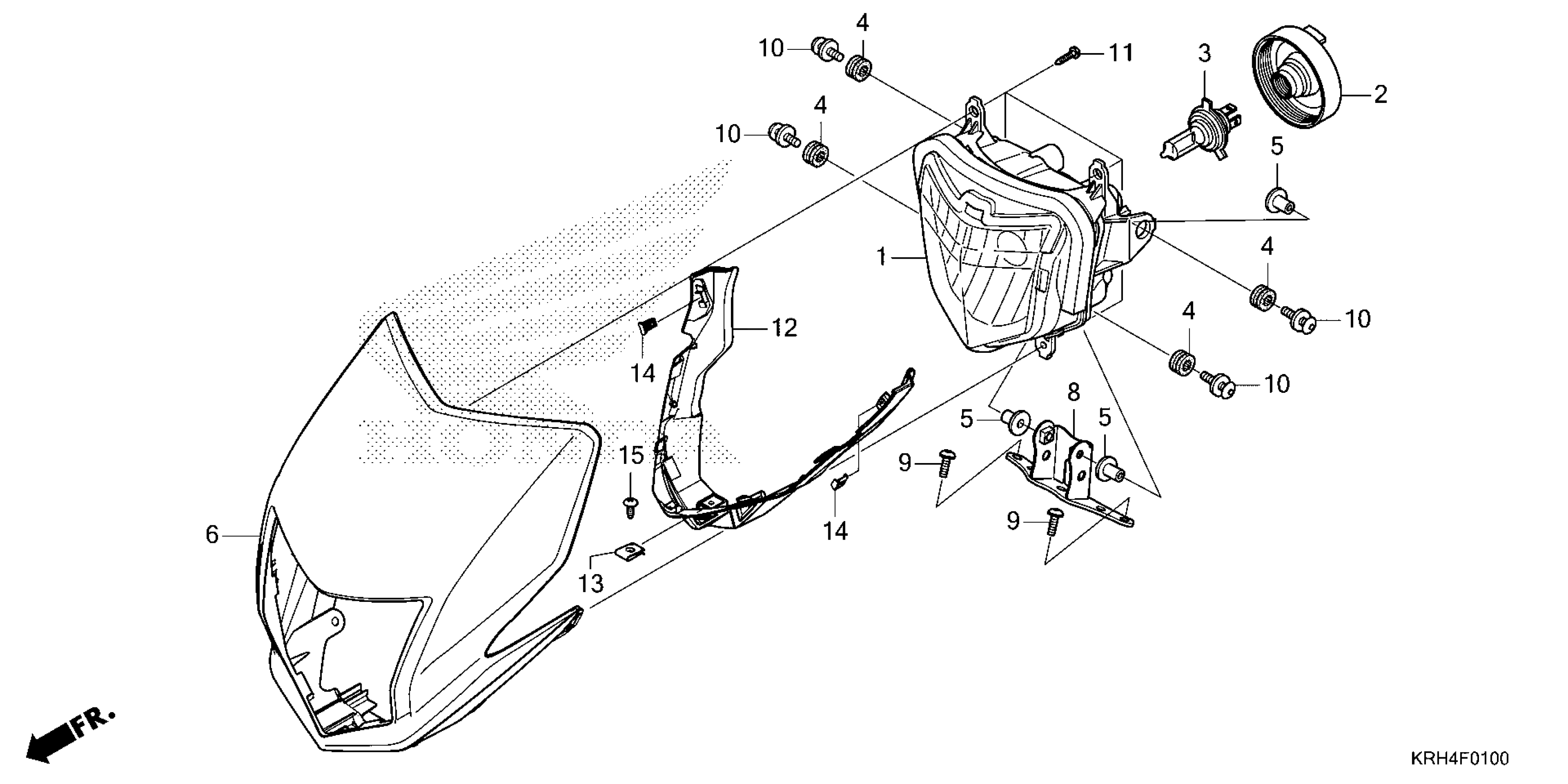

Honda XR150LEAC (23) MOTORCYCLE, MEX, VIN# 3H1KD131-PD000001 TO 3H1KD131-PD099999 HEADLIGHT Diagram

#

Description

Price

1

HEADLIGHT UNIT

33110-KZZ-D11

$102.57

2

COVER, RUBBER

33112-KWR-003

$9.84

3

BULB, HEADLIGHT (H4)

34901-K31-901

$79.90

4

RUBBER, FR. FENDER MOUNTING (Honda Code 0329987)

61103-357-000

$3.37

5

COLLAR, FR. FENDER (WHITE) (FOR RR.)

61104-428-010

$4.42

6

VISOR SET, FR. (TYPE2) (WL)

61300-KRH-J00ZA

$54.49

6

VISOR SET, FR. (TYPE1) (WL)

61300-KRH-J00ZB

$59.95

8

STAY, FR. (LOWER)

61325-KRH-J00

$25.90

9

BOLT, FLANGE (6X10) BOLT, FLANGE (6X12)

95701-06010-00

$1.49

10

BOLT-WASHER, SPECIAL (6X22)

90104-KZZ-D20

$1.49

11

SCREW, TAPPING (5X16) (PO)

93913-25480

$1.49

12

INNER, FR. VISOR

61305-KRH-J00

$59.77

13

NUT, SPRING (4MM)

90303-GGL-J01

$2.80

14

CLIP, SLIDE

90651-K14-A31

$1.49

15

SCREW, TAPPING (4X12)

93903-24380

$1.49
