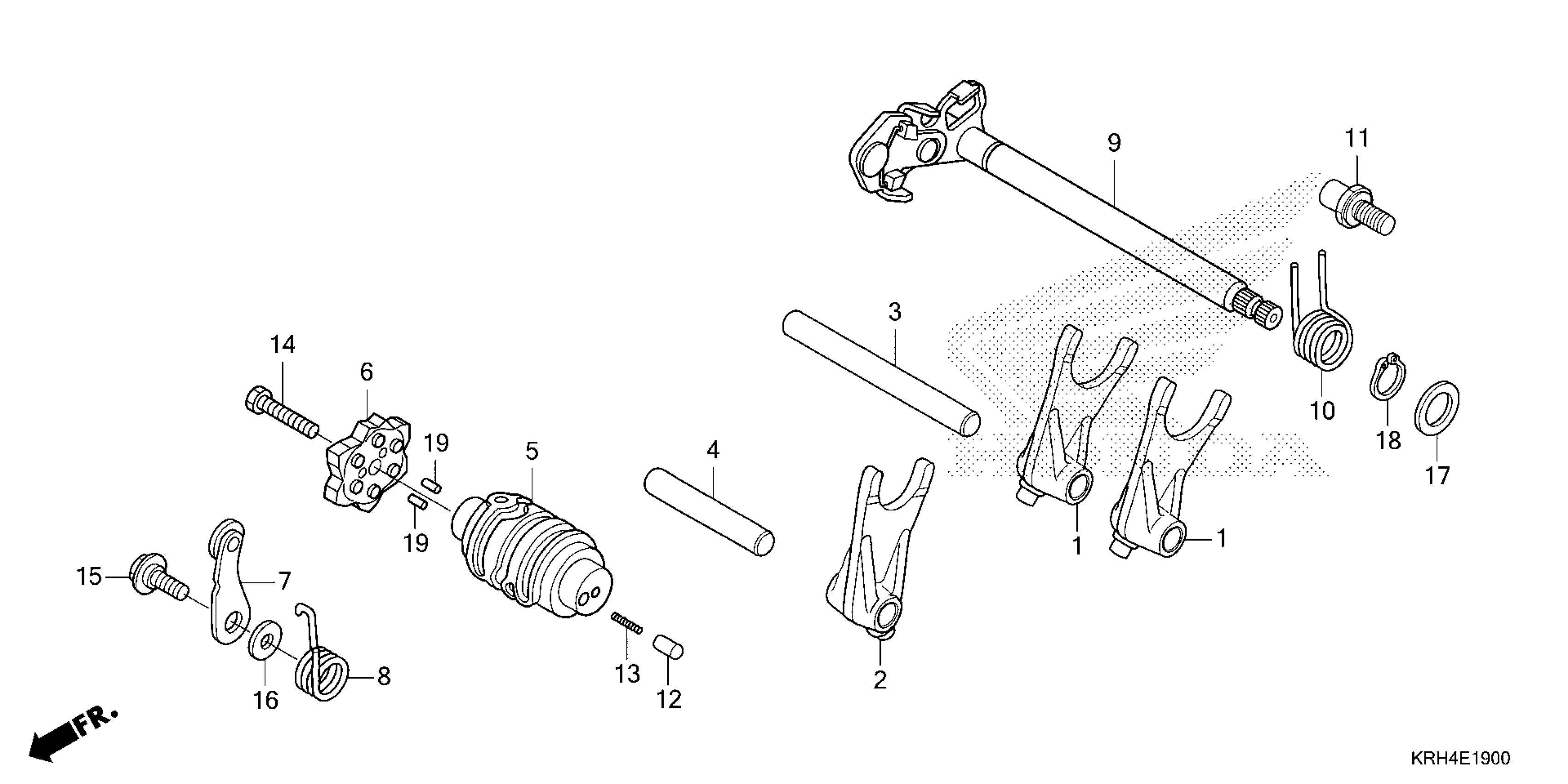

Honda XR150LEAC (23) MOTORCYCLE, MEX, VIN# 3H1KD131-PD000001 TO 3H1KD131-PD099999 GEARSHIFT DRUM Diagram

FORK, GEARSHIFT

24211-KTT-900

$39.18

FORK, CENTER GEARSHIFT

24212-KVX-600

$40.99

SHAFT A, GEARSHIFT FORK

24241-KRM-840

$6.72

SHAFT B, GEARSHIFT FORK

24242-KRM-840

$7.03

DRUM, GEARSHIFT

24301-KRH-780

$53.34

PLATE, GEARSHIFT DRUM STOPPER

24410-KTT-900

$14.44

STOPPER, GEARSHIFT DRUM

24430-KRM-B10

$11.44

SPRING, SHIFT DRUM STOPPER

24436-KRM-840

$0.74

SPINDLE, GEARSHIFT

24610-KRM-840

$28.77

SPRING, GEARSHIFT RETURN

24651-KRM-840

$2.32

PIN, SHIFT RETURN SPRING

24652-KRM-840

$6.02

CAP, CHANGE SWITCH CONTACT

35751-KPH-900

$0.59

SPRING, CHANGE SWITCH CONTACT

35752-KRM-840

$0.47

BOLT, HEX. (6X20)

90003-KVS-900

$1.88

PIVOT, SHIFT DRUM STOPPER ARM

90022-KRM-840

$1.28

WASHER, DRUM STOPPER This part replaces 90417-KRM-840.

90417-360-000

Unavailable

WASHER, DRUM STOPPER

90417-360-000

Unavailable

WASHER (14MM)

90457-KRM-840

$0.68

CIRCLIP (OUTER) (14MM)

94510-14000

Unavailable

ROLLER (3X8.5)

96220-30085

$0.49
